| Prod Model: |
SV51LB |
| Name: |
Torque Wrench |
| Torque Range: |
235-46500nm |
| Nut On The Side: |
19-175mm |
| Pressure: |
700bar |
| Weight: |
1-30kg |
| Color: |
Blue, Red and Customize |
| Certificate: |
Ios:9001 |
| Market: |
Globe |
| OEM: |
Yes |
| Material: |
New |
| Type: |
Torque Wrench |
| Power: |
Power Source |
| Power Supply Type: |
Charging Power |
| Power Supply Voltage: |
220V |
| Power Source: |
Hydraulic |
| Brand: |
Sov |
Product Description

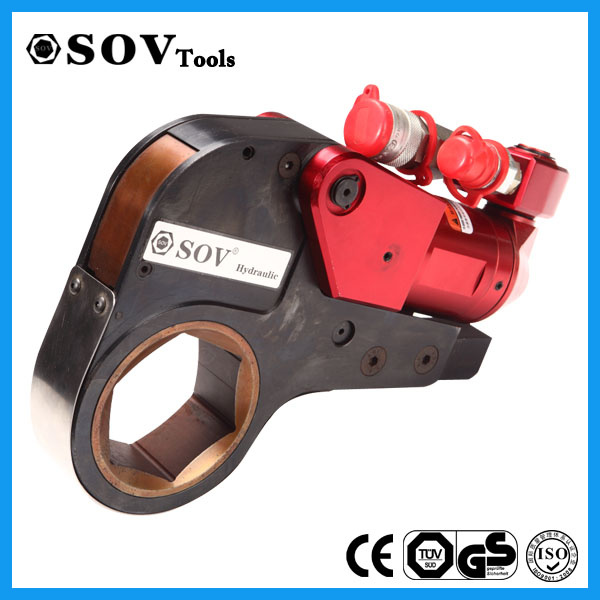

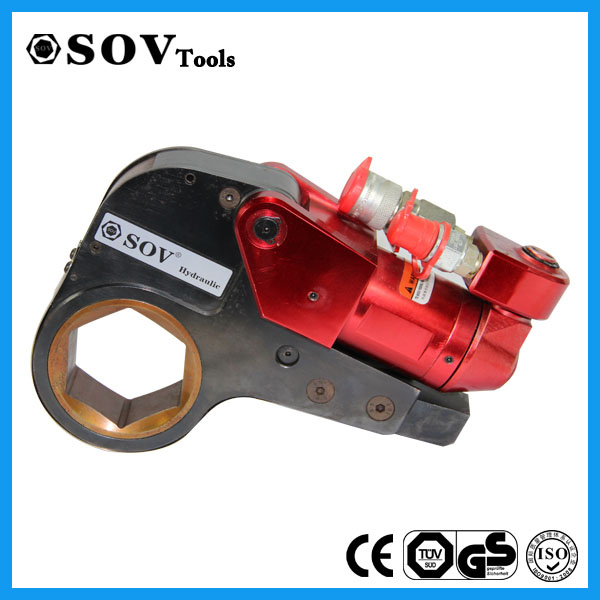

Hydraulic Impact Ratchet Wrench SetProduct DescriptionFeatures
1. 700 Bar Max working Pressure and the accuracy keep within±3%;
2. Al-Ti alloy integrated machine, high strength, high tenacity with light weight;
3. The 360*180 degree swivel is free to operate with no space limitation;
4. Compact design with the raw material of advanced aluminum-titanium alloy, high intense;
5. The new locking coupler ensures the oil keep access.
Product Parameter
Model | Torque range(Nm) | Nut on the side (mm) | Working head Length(mm) | Working head Thickness (mm) | Plug-ins Thickness (mm) | Working pressure(bar) | Weight(Kg) |
| SV51LB230 | 235-2380 | 19-55 | 195 | 50 | 32 | 700 | 1.5 |
| SV51LB250 | 245-2500 | 22-60 | 195 | 50 | 32 | 1.6 |
| SV51LB600 | 590-6010 | 34-65 | 245 | 65 | 42 | 4.4 |
| SV51LB750 | 650-6500 | 70-80 | 245 | 65 | 42 | 4.5 |
| SV51LB1100 | 1100-11500 | 41-95 | 300 | 82 | 53 | 8 |
| SV51LB1300 | 1250-12800 | 100-105 | 300 | 82 | 53 | 8.5 |
| SV51LB1900 | 1850-18900 | 50-117 | 360 | 96 | 64 | 11.5 |
| SV51LB4200 | 4190-42000 | 110-115 | 430 | 130 | 85 | 28 |
| SV51LB4700 | 4510-46500 | 160-175 | 440 | 130 | 85 | 29.5 |
After sales serviceOne year for free repair and replacement.
Packaging & ShippingPackaging Details:
1.Outside Packing: Wooden packing 2. Inner Packing: Stretch Film 3. Offer Customized Packing
Delivery Detail:
15 days after prepayment for hydraulic torque wrench
Company informationShanghai SOV Hydraulic Technology Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components. CertificateSince the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
ClientsOur customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.Main ProductsWe are a manufacturer in tools, such as:•Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; low height, ultra pressure, lock nut•Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);•Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;•Hydraulic pumps, manual and electric type (max up to 4000bar);•Integrated hydraulic lifting system solutions ( 4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)•Hydraulic nut and couplings. (M50-Tr1000), hydraulic hoseOur products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
FAQQ1: How can I contact the sales?
A1: Please call at 0086 21 6856 1366 for presales services or click the contact to find our email address.
Q2: How can I buy SOV products in my country?
A2: Please send us an inquiry or email. We will reply to you if there are distributors in your country.
Q3: Can I have SOV products catalogs and price lists?
A3: Please visit our website(http://www.sovhydraulic.com) to download our Ecatalog, and send us an email for price lists.
Q4: How long does it take to get the products if I place an order?
A4: If the products are in stock, we will pack and deliver in 3~7 days after confirmation of payment. The
products will arrive in 3~7 days by international parcel service, or 15~45 days by shipment.
Q5: How to make payment?
A5: First send us an inquiry, then we will reply to your quotation. If our price suits you, we will prepare proforma invoice with our banking details. You can choose T/T, West Union, L/C, whatever you like.
Q6: How long is the manufacturing?
A6: If it is our standard products, it can be produced in 10~20 days. Otherwise, we promise to finish in 20~45 days.
Contact:Sales Manager,
Sidney Zheng
SOV Hydraulic Technology (Shanghai) Co., Ltd.
Moblie Number: +86 189 1815 8229
Website: www.sovhydraulic.com
About SOV Hydraulic Technology(Shanghai) Co., Ltd.
Shanghai SOV Hydraulic Technology(Shanghai) Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:

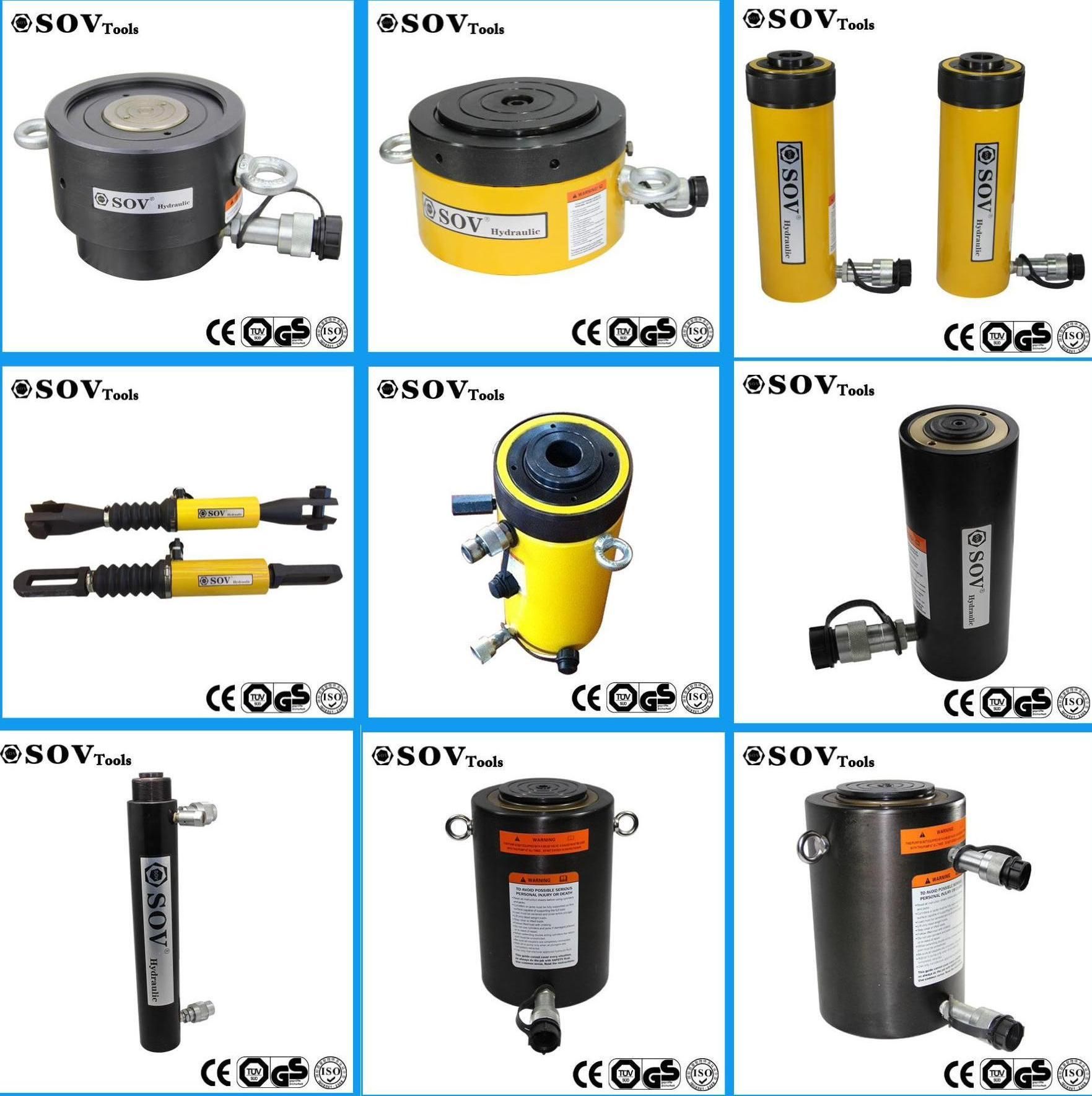

Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger; Low height, ultra pressure, lock nut
Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton;
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Hydraulic pipe cutting and beveling machine
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
