| Prod Model: |
DZ75 |
| Model: |
Dz30A |
| Type: |
Vibratory Pile Hammer |
| Motor Power: |
30kw |
Product Description

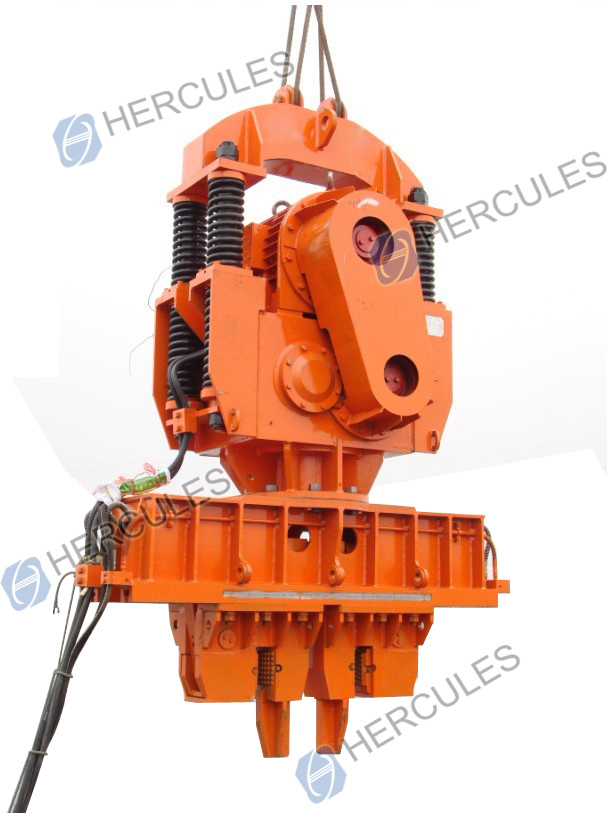

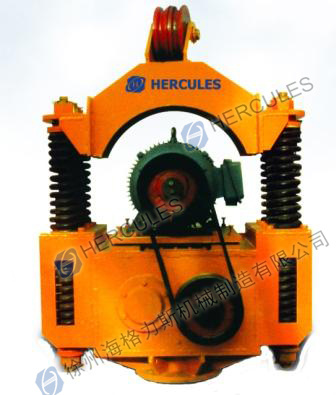

Spring Vibration hammer 75KW
Vibratory hammer, pile driver hammer, vibratory pile hammer
DZ series Vibratory Hammer is a new model product developed by our engineers by the means of inspecting and absorbing domestic and foreign advanced technology and its performance reaches the advanced level of domestic similar products. The pile driver hammers have many good features including strong driving force, pile with good quality, good rigidity, good durability, easy operation and maintenance, high adaptation for power, piling noise-less and low cost.
The vibratory pile hammer not only could be equipped with the body frames of the piling machine used as cast-in-place concrete piles, expanded -foot tubular piles, lime piles, sand piles and gravel piles but also allowing its users to drive different types of precast concrete plant piles and steel sheet piles via different types of clamp types.
DZ series Spring Vibratory Hammer is an ideal equipment of foundation construction for highways, bridges, airports, railroads, buildings, etc.
| Technical Data | Model |
| DZ10A | DZ20A | DZ30A | DZ60A | DZ60KS | DZ75KS | DZ90KS | DZ120A | DZ110KS |
| Motor power | 11KW | 22KW | 30KW | 55KW | 30x2KW | 45x2KW | 45x2KW | 120KW | 55x2KW |
| Driving force | 76KN | 140KN | 185KN | 290KN | 350KN | 414KN | 530KN | 657KN | 593KN |
| Eccentric Moment | 51N.m | 120N.m | 170N.m | 300N.m | 310N.m | 370N.m | 430N.m | 600N.m | 600N.m |
| Eccentric Shaft Speed | 1150r/min | 970r/min | 980r/min | 985r/min | 1000r/min | 1000r/min | 1050r/min | 1000r/min | 1000r/min |
| Weight | 0.8T | 2.2T | 2.2T | 4.08T | 4.36T | 4.96T | 5.86T | 7.4T | 6.6T |
Xuzhou Hercules Machine Manufacture Co., Ltd. is ISO9001 quality management system certification enterprise, the certified supplier by SGS, the high-tech private enterprise in Jiangsu province, Jiangsu province AAA grade Credit enterprise; Jiangsu province AAA grade Quality, Integrity Services enterprise and the company also was "Xuzhou Piling Machinery (Hercules) Engineering Research Centers".
Hercules piling machinery was awarded the title of Jiangsu High-tech Products. Our company has 20 state grade patents and new practical patents. Our machine had become the new benchmark for quality piling machinery!
Our main products include Long Auger Drilling Rigs (drilling diameter: Φ 300-Φ 1500mm, drilling Depth: 10m-35m), Diesel Hammer Pile Drivers (4T-10T), Rail Type and Electric Crawler Wick Drain Drivers, Percussion Drilling Rigs (drilling diameter: Φ 800-Φ 3000mm). Especially the machine Multi-function Pile Drivers integrated with expansion pile, compaction pile, gravel pile, pilling rig and prefabricated pipe pile, which favored by the users and lead the sale. We can also make the machinery and the components according to the customers' Requirement.
With the characters of first-class R & D team, controlling the overall design, pursuit of the details, continuously improving according to the users' Experience and lesson in practical engineering, especially the strengthening processing for the key parts, our machines ensure to afford higher-intensity operations and meet user higher efficient construction requirements.
Hercules always believes that the interests of customers are more than our own interests which is also the standard for you to trust us. Hercules treasures your trust and confidence and we always begin from maintaining your construction efficiency.
