Product Description
Induction heater Heating machine for Diamond Saw Blade Welding MachineApplications of induction brazing machineWelding (braze welding, silver soldering and brazing)
It mainly aims to melt the solder by heating it to a certain temperature for the purpose of connecting two types of metals of the same material or different materials.
A. Welding of various hardware cutting tools, such as diamond tool, abrasive tool, drilling tool, alloy saw blade, hard alloy cutter, milling cutter, reamer, planning tool and solid center bit.
B. Welding of various hardware mechanical gadget: Silver soldering and brazing of metals of the same variety or different varieties, such as hardware toilet and kitchen products, refrigerating copper fitting, lamp decoration fitting, precision mold fitting, hardware handle, eggbeater, alloy steel and steel, steel and copper as well as copper and copper.
C. Compound pot bottom welding is mainly applicable to the braze welding of circular, square as well as other irregular plain pot bottom. It is also applicable to plain braze welding of other metals.
D. Welding of heating disc of electric hot-water kettle mainly refers to the braze welding of stainless steel flat base, aluminum sheet and tubular electric heating elements of various forms.
Main characteristics:
1, MOSFET and Inverting technologies of First generation been used;
2, Simple structure and light weight;
3, Simple to operate, A few minutes is enough to learn it;
4, Simple to install, Installation can be done by unprofessional person very easily;
5, Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;

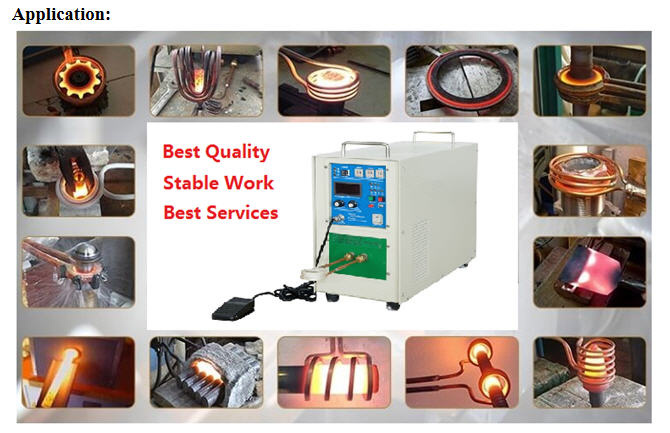

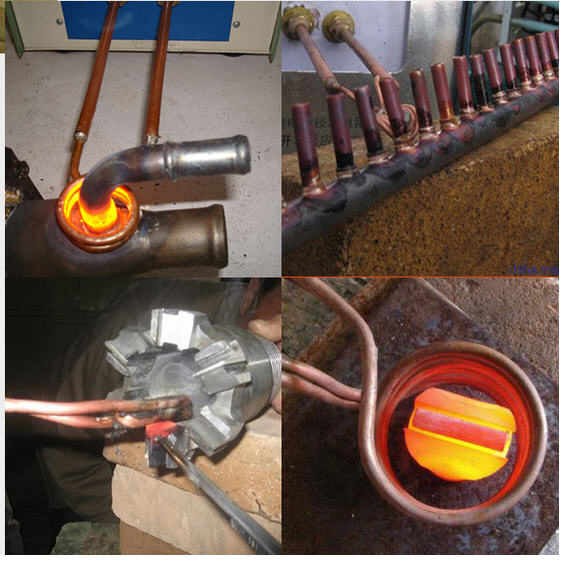

Typical Applications:
Brazing of the diamond blade tool
Brazing of the Machining tools
Brazing of the Micrometer

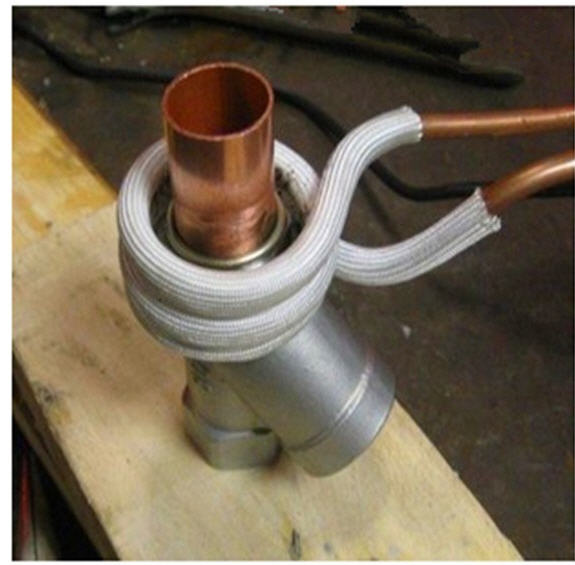

Brazing of Copper tube
Brazing of the connector
Heat treatment of small parts, quenching, annealling, and mor
Melting below 2KG for gold, sliver, copper, brass, steel and iorn
More application
Installing Desire:
1, power supply wire: 6mm2 soft copper; Ground wire 4mm2 soft copper;
2, cooling water desire: Clean and not easy to scale, Inlet water temperature 25-36degree';
3, cooling water systerm: Running water; Circulating water from a pump to a tank; Use an industry refrigerate machine.

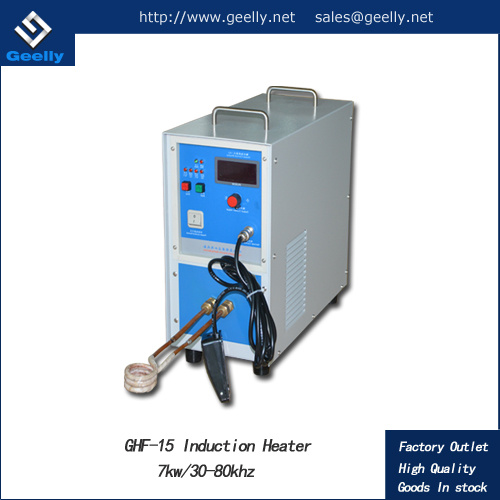

Boxing list of GHF-15 or 15A Induction heating machine:
1. Induction heating machine---1PC
2. Induction coil: According to your requirements- 1-3PCS
3. Foot switch: With line of 2 meters long- 1PC
4. Three-way water tube---1SET
5. Stainless steel hose clamp: ¢ 10-20- 7PCS
6. Fuse: 1A -5PCS
7. User's manual--- 1PC| Model | Input power | Frequency | input voltage | Duty cycle | Heating current | Retaining current | Time | Size CM/weight |
| GHF15 | 7KW | 30-80KHZ | 180-240V, 50/60Hz, single-phase | 80% | 170-600A | | | 46*20*44/18KG |
| GHF15A | 7KW | 30-80KHZ | 180-240V, 50/60Hz, single-phase | 80% | 170-600A | 170-600A | 1--99s | 46*20*44/18KG |
| GHF15B | 7KW | 30-80KHZ | 180-240V, 50/60Hz, single-phase | 80% | 170-600A | | | Generator:
46*20*44/14KG
Transformer:
31*19*433/10KG |
| GHF15AB | 7KW | 30-80KHZ | 180-240V, 50/60Hz, single-phase | 80% | 170-600A | 170-600A | 1--99s |
| Cable length from generator to transformer is 2 meters, and max. length is 6 meters |
Packing detail:1.Standard wooden case, plywood case, and custormized case;
2. Inner packing: packing plastic film and foam to avoid any damage during shipping
3.Accessories: induction coilX 2, foot pedal X1, installing and operating instruction X1 and custormized;
Our service 1. Pre-sale service:
- 1. recommend the most suitable machine for customers, according to their application details.
- 2. Inquiry and consulting support.
- 3. Sample testing support.
- 4. View our Factory.
2. In-sale service:
- 1. Strictly control all the prduction process
- 2. Take run test, according to relevant equipment test run regulations.
- 3. Strictly inspection the machine, before delivery
- 4. Delivery on time.
3. After-sale service:
- 1. 12 months warranty period
- 2. Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, we will provide replacement parts after detecting the faults.
- 3. If any big quality problems occurs during the guarantee period, we will send maintenance
- 4. technician to provide visiting service after checking with the customer and charge for a favorable price.
- 5. We provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
- 6. The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.
FAQ
China Supplies Induction Heating Power Supply
Questions and Answers:
1. Which countries your products are exported to?
Our products are sold many countries and Areas
2.How about the warranty?
All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.
3.How to install your machine?
We have paper installation instructions and videos, we will teach till you learn it.
4. Which export port you use?
Any China port is ok, usually, we will use Shenzhen ,Guangzhou ,Hongkong port, it can appoint as you like.
5.How about the payment terms and delivery time ?
Payment terms for small machines: 100% T/T/ Western Union/Cash in advance.
The big machines and big amount: 30% deposit,70% before shipment (we will take relative pictures for total delivering process for customer's confirmation)and the related papers. You can pay by T/T,L/C, Western Union or other ways.
6.If I have paid but can not receive the goods, how should I do?
Made-in-china website is a famous trade platform and has been mature those years ,every supplier on it has paid large integrity fund,and we have Chinese business licenses which can be checked on China official website or we can show it to you,so that situation will never appear,
7.What is your nature of your company:dealer or factory ?
We are manufacturer and have a big factory ,warmly welcome to visit our factory and contact us.
Shenzhen Geelly Technology Co., Limited is specialized in manufacturing High and Medium Frequency Induction Heating heaters and related equipment.
We own gifted engineers for developing and improving of induction heating generators. We have research lab and production base, We manufacture wide range of product lines which include induction heaters in range of power from 3KW to 240KW and output frequency range from 2kHz to 1.1MHz. We also manufacture and design Gold melting furnace, Platinum melting furnace, and the coils of induction heaters. Industrial chiller. Quartz ceramic crucible and pure graphite crucible. We also offer spare parts of induction heater and some auxiliary parts.
Our induction heater have been used by more and more customers home and abroad due to the good quality and reasonable cost. Our products offer a perfect solution in the fields of metal heating soldering and brazing, forging, shaping, heat treatment and melting.
We offer technical consultation to inquires with instant feedback and recommend suitable machine models for varied applications.
