Induction Heating Machine for Diamond Saw Blade Welding Brazing Machine

Induction Heating Machine for Diamond Saw Blade Welding Brazing Machine
Price: US $ 800-1000/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: GHF series

Product Description

Main Model:
GHF-15 --Normal;
GHF-15A--With time
GHF-15B Split type
GHF-15AB With time and split

Main characteristics:
1, MOSFET and Inverting technologies of First generation been used;
2, Simple structure and light weight;
3, Simple to operate, A few minutes is enough to learn it;
4, Simple to install, Installation can be done by unprofessional person very easily;
5, Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;

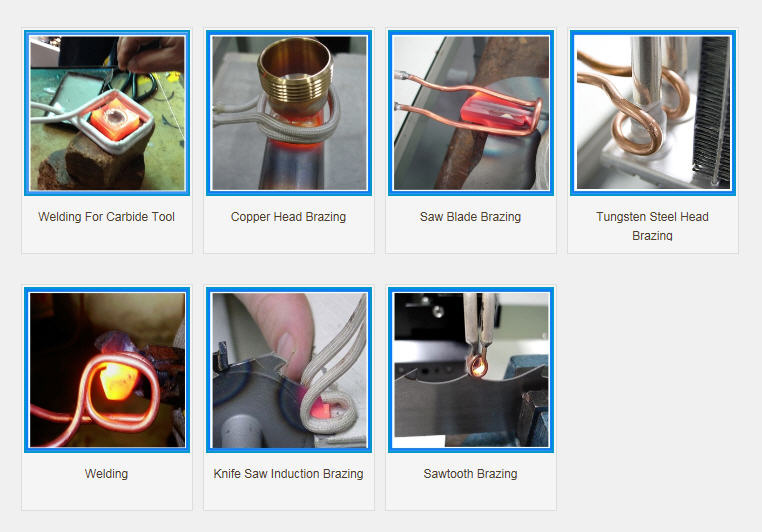

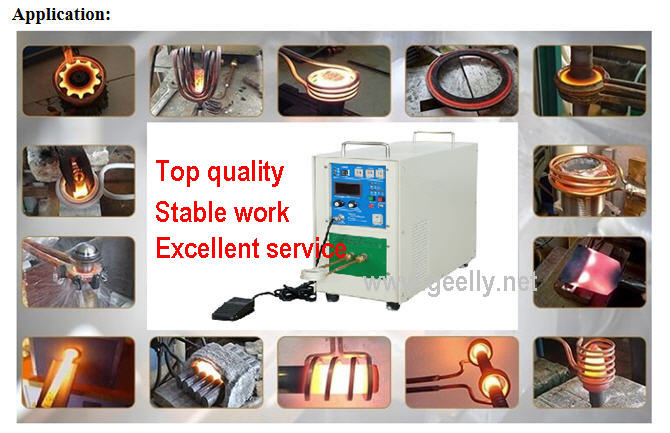

Typical Applications:

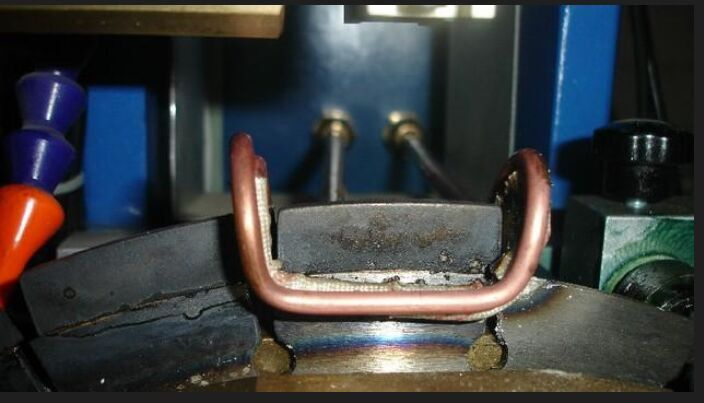

Brazing of the diamond blade tool
Brazing of the Machining tools
Brazing of the Micrometer
Brazing of Copper tube
Brazing of the connector
Heat treatment of small parts, quenching, annealling, and mor
Melting below 2KG for gold, sliver, copper, brass, steel and iorn





Installing Desire:
1, power supply wire: 6mm2 soft copper; Ground wire 4mm2 soft copper;
2, cooling water desire: Clean and not easy to scale, Inlet water temperature 25-36degree';
3, cooling water systerm: Running water; Circulating water from a pump to a tank; Use an industry refrigerate machine.


Boxing list of GHF-15 or 15A Induction heating machine:
1. Induction heating machine---1PC
2. Induction coil: According to your requirements- 1-3PCS
3. Foot switch: With line of 2 meters long- 1PC
4. Three-way water tube---1SET
5. Stainless steel hose clamp: ¢ 10-20- 7PCS
6. Fuse: 1A -5PCS
7. User's manual--- 1PC
ModelInput powerFrequencyinput voltageDuty cycleHeating currentRetaining current TimeSize CM/weight
GHF157KW30-80KHZ180-240V, 50/60Hz, single-phase80%170-600A  46*20*44/18KG
GHF15A7KW30-80KHZ180-240V, 50/60Hz, single-phase80%170-600A170-600A1--99s46*20*44/18KG
GHF15B7KW30-80KHZ180-240V, 50/60Hz, single-phase80%170-600A  Generator:
46*20*44/14KG
Transformer:
31*19*433/10KG
GHF15AB7KW30-80KHZ180-240V, 50/60Hz, single-phase80%170-600A170-600A1--99s
Cable lengthfrom generator to transformer is 2 meters, and max. length is 6 meters




Shenzhen Geelly Technology Co., Limited is specialized in manufacturing High and Medium Frequency Induction Heating heaters and related equipment.

We own gifted engineers for developing and improving of induction heating generators. We have research lab and production base, We manufacture wide range of product lines which include induction heaters in range of power from 3KW to 240KW and output frequency range from 2kHz to 1.1MHz. We also manufacture and design Gold melting furnace, Platinum melting furnace, and the coils of induction heaters. Industrial chiller. Quartz ceramic crucible and pure graphite crucible. We also offer spare parts of induction heater and some auxiliary parts.

Our induction heater have been used by more and more customers home and abroad due to the good quality and reasonable cost. Our products offer a perfect solution in the fields of metal heating soldering and brazing, forging, shaping, heat treatment and melting.

We offer technical consultation to inquires with instant feedback and recommend suitable machine models for varied applications.
