| Prod Model: |
RP09 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Loading Port: |
Shanghai & Ningbo Port |
| Delivery Date: |
15-30 Days |
| Quality: |
Top |
| Size: |
20-160mm |
| Hardness: |
Hard Tube |
| Type: |
Thermosetting Plastic Pipe |
| Hollow: |
Hollow |
| Shape: |
Round |
| Usage: |
Water Supply Pipe |
| Material: |
PPR |
| Color: |
Green |

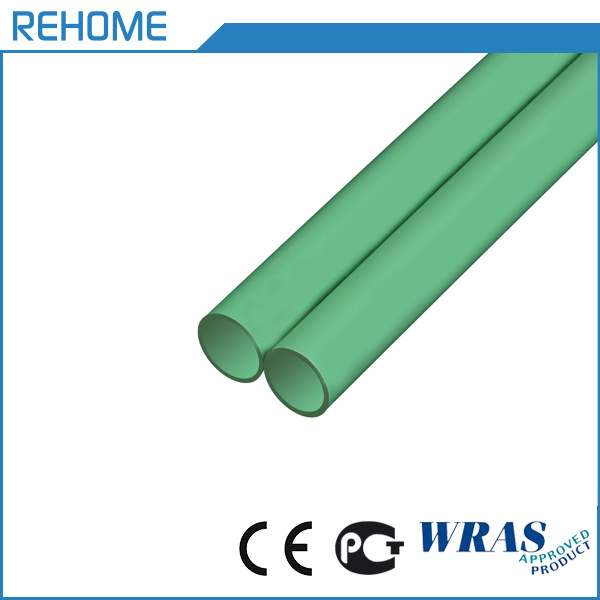

Product Description
Material: 99.9% Korea RP2400 and brass inserts.
Pressure Rating: 1.0MPa, 1.25MPa, 1.6MPa, 2.0MPa, 2.5MPa
Standard: ISO 15874: 2003, GB/T 18742.1-2002
Production temperature: -40° C----+95° C
Certification: ISO9001, ISO14001
Color: Green, White, Grey etc
Size: 16-160 mm
| Spec(mm) | Thickness(mm) | Package(m/bale) |
| S5 1.25mpa | S4 1.6mpa | S3.2 2.0mps | S2.5 2.5mpa |
| 20 | 2.0 | 2.3 | 2.8 | 3.4 | 120 |
| 25 | 2.3 | 2.8 | 3.5 | 4.2 | 120 |
| 32 | 2.9 | 3.6 | 4.4 | 5.4 | 80 |
| 40 | 3.7 | 4.5 | 5.5 | 6.7 | 60 |
| 50 | 4.6 | 5.6 | 6.9 | 8.3 | 40 |
| 63 | 5.8 | 7.1 | 8.6 | 10.5 | 24 |
| 75 | 6.8 | 8.4 | 10.3 | 12.5 | 16 |
| 90 | 8.2 | 10.1 | 12.3 | 15.0 | 8 |
| 110 | 10.0 | 12.3 | 15.1 | 18.3 | 8 |
| 160 | 14.6 | 17.9 | 21.9 | 26.6 | 4 |
Applications:
Cold or hot water supply, heating system including flooring heating, wall heating and radiant, central air conditioning and industrial liquids transportation.
Advantages:
1. High Temperature Resistance: The maximum sustained working temperature is up to 70 Degree Celsius, the maximum transient temperature is up to 95 Degree Celsius
2. Heat Preservation: Low thermal conductivity which is only 1/5000 of copper pipe, and 1/250 of steel pipe
3. Non-toxic: No heavy metal additives, would not be covered with dirt or contaminated by bacterium
4. Corrosion Resistant: Resist chemical matters or electron chemical corrosion
5. Lower Installation Costs: Light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system6. Higher Flow Capacity: Smooth interior walls result in lower pressure loss and higher volume than metal pipes
7. Long Life: More than 50 years under normal conditions
8. Recycled and Environment-friendly
Applications:
1. Cold and hot water supply system for civil and industrial constructions. E. G. In residential buildings, hospitals, hotels, school and office buildings, ship building sports facilities etc
2. Drinking water system and food industry pipe works
3. Central air conditioning system and heating system for residential houses
4. Irrigating system in gardens and green houses
5. Public and sport facilities such as swimming pool and stadiums
6. For rainwater utilization system
