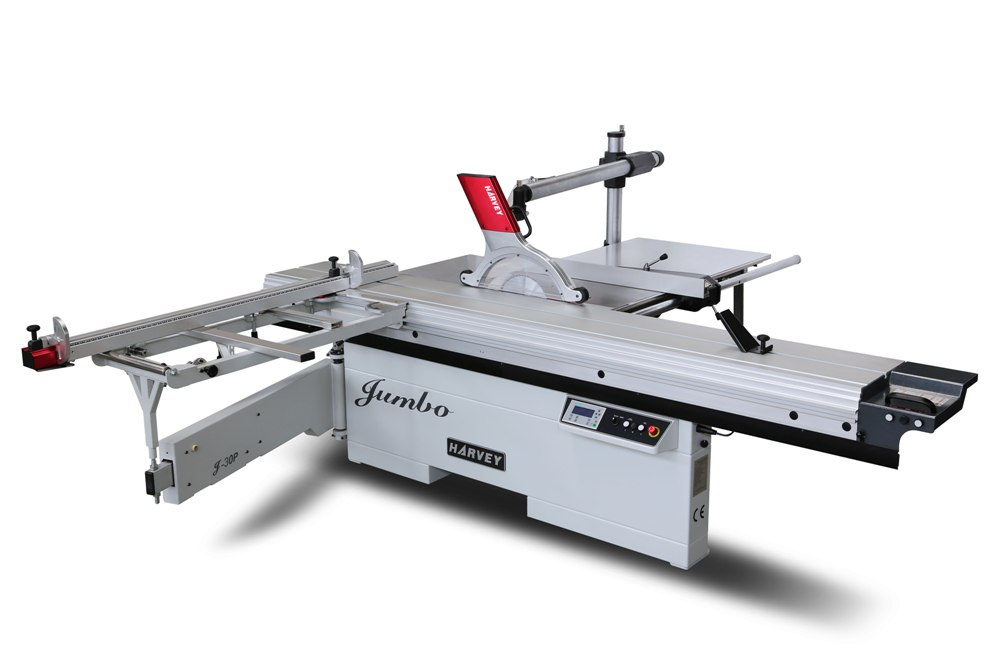

J-30P Electronic Panel Saw

J-30P Electronic Panel Saw
Price: US $ 1-6900/Piece
Min Order: 1/Piece
Pay Type: T/T
Prod Model: J-30P
Weight: 975kgs
Type: Table Panel Saw
Layout: Horizontal
Controlling Mode: Artificial
Automatic Grade: Manual
Precision: Precision
Certification: CSA
Color: RAL7035

Product Description



Features:

• Extreme craftsmanship and operational experience
• "Honeycomb" style extra wide and heavy sliding table
• "Shark" 6-DOF overhead guarding system for best safety and dust collection
• Dado (grove cutting) application up to 15mm width
• Laser cut heavy steel frame with thorough powder coating
• Siemens centralized control and readout panel installed on the machine base
• Rip fence with digital readout
• Electronically blade up/down adjustment with 0.1mm accuracy with height digital readout
• Electronically controlled blade tilting adjustment with 0.1 degree accuracy with digital angle readout
• Dynamical balanced spindles perform at extremely low noise and hardly felt vibration
• High precision industrial ballscrew and linear guide for rip fence
• Dedicatedly engineered for heavy duty industrial production
• T-6 aircraft grade aluminum sliding table with 410mm width
• Harvey unique "Compass" crosscut fence system
• User-friendly dual control panels
• 50" rip fence with aluminum right hand extension board
• Aluminum rear extension board
• 380v/3ph/5.5kw main mechanical brake motor
• Trim shoe
• CE approved

Optional Equipment

• Hold down
• DRO for cross cut fence



Specifications:

Model

J-30P

Sliding table L x W

3200 x 410mm

Maximum cutting length

3000mm (10 ft)

Maximum ripping width

1270mm (50")

Maximum cross cut fence length

3300mm (11 ft)

Main casting worktable size

558 x 860mm (30" x 31-1/2")

Main blade diameter

315mm (12")

Main blade arbor diameter

30mm

Main blade speed

4500RPM

Scoring blade diameter

120mm

Scoring arbor diameter

20mm

Scoring blade speed

8000RPM

Maximum cutting height at 90°

102mm (4")

Maximum cutting height at 45°

76mm (3")

Maximum Dado width

20mm

Main motor power

5.5kW (3 phase)

Scoring motor power

0.5kW (3 phase)

Machine foot print

927.5 x 1980mm

Machine work height

905mm

Machine net weight (approx.)

1045kg

With over 18 years of experience in machineries. Harvey believes that quality is always the only thing a manufacturer should really care about. The quality includes the best performance, the longest durability engineering of machines, as well as satisfactory services for the customers.

As a perfectionist, Harvey spent extraordinary time and efforts on the performance, accuracies, reliability and workmanship of our woodworking machines. On this web, we are presenting a selective fine line of Table Saws, Shapers and Accessories. Thousands of these machines were sold worldwide and they are proven to have to best value for professional users. We are proud to be able to serve the wooding industry and generate constant benefits for our customers.

Also, we are introducing our newest innovation on this web: Tin Coating technology. This patented coating process dramatically improves the worktable quality of the woodworking.

We thank you for your interest in our machines and look forward to working with you.
