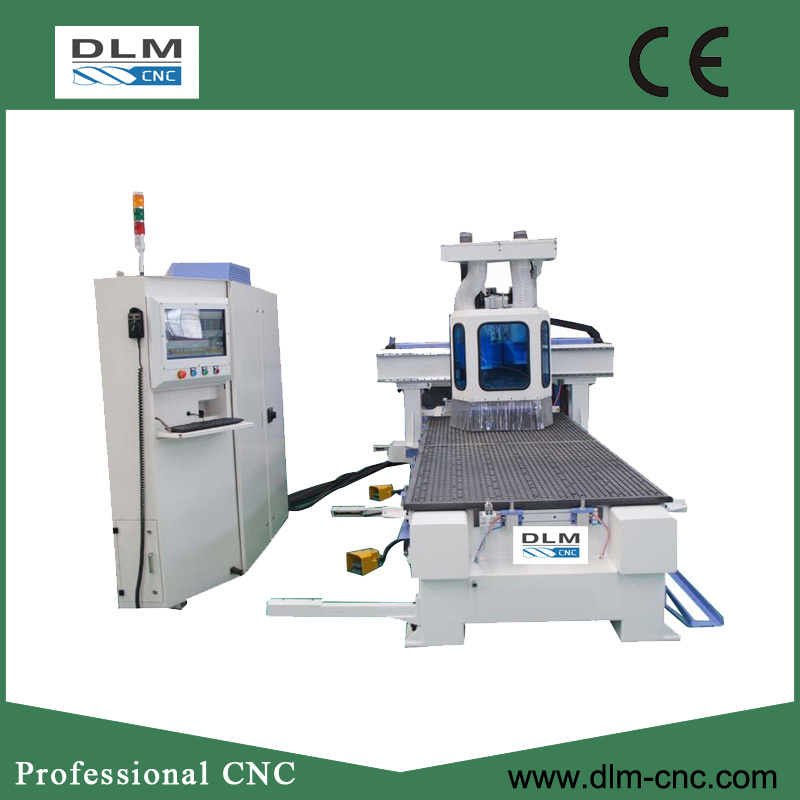

Jinan CNC Woodworking Engraving and Milling Machinery Tool
Price: |
US $ 29500-35500/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union,Paypal |
Prod Model: |
UA-482 |
Spindle: |
9kw Air Cooling Spindle /Italy |
Controller: |
Taiwan Syntec Controller |
Motor: |
Yaskawa Servo Motor / Japan |
Rack: |
Helical Racks |
Table: |
Double Layer PVC Vacuum Table |
Rail: |
Taiwan Linear Rail |
Reducer: |
Taiwan Planetary Reducer |
Dust Collector: |
3kw / 5.5kw |
Pump: |
5.5kw Air Cooling Pump |
Ball Screw: |
High Precision |
Product Description
CNC Machining Center
Model | UA-482 |
Table size | 1220mm*2440mm |
Max. working stroke | 1320mm*2540mm |
Working height | 200mm |
X & Y Rapid speed | 80m/min |
Z & W rapid speed | 20m/min |
Vacuum pump | 5.5KW / 160m3/h |
Dimensions | 3500mm*2200mm*2100mm |
Net weight | 3500 kgs |
Spindle | 4.5KW air cooling spindle / 18000rpm |
Spindle | 9KW / Italy / 24000rpm / air cooling |
Controller | Taiwan Syntec |
Motor | Yaskawa servo motor / Delta servo motor |
Rail | Taiwan linear rail |
Rack | Helical racks |
Table design | Double layer PVC table |
ATC | Linear type / 8 positions |
Positioning cylinder | 3 pcs. |
Tool holder | ISO-30 |
Package | Plywood box |
Software | Type 3/ ArtCAM |
Jinan DLM CNC Router Company with more than 5 years manufacturing experience in CNC non-metal computer machining center, and attachment technology research, machinery, parts procurement, production and assembly, software development, electric wiring, business sales, repair and after-sale service, etc. Owing abundant application experience and excellent technical team, can quickly resolve any technical issues about CNC equipment and provide the technical resources of CNC machining processing practice experience.
We offer a comprehensive range of highly-efficient products castering for the needs of different industrial sectors. All of our products feature solid structure, best quality components, superio machining techiques and complete reliability. We marketour products through a strong network extending to the whole world market, including but not limited to Russia, Australia, New Zealand, USA, Brazil, Middle East, South East Asia. Our machines are widely used in various industries, furniture manufacturing, electronic industries, construction industries, audio and musical instruments, stationary gifts, advertisenment engrave, mold, high-speed train, yacht and boats, aircraft industry, machine produce, etc.
