| Prod Model: |
MDW-KT-QR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension(mm): |
11.5mm/11.0mm |
| Item: |

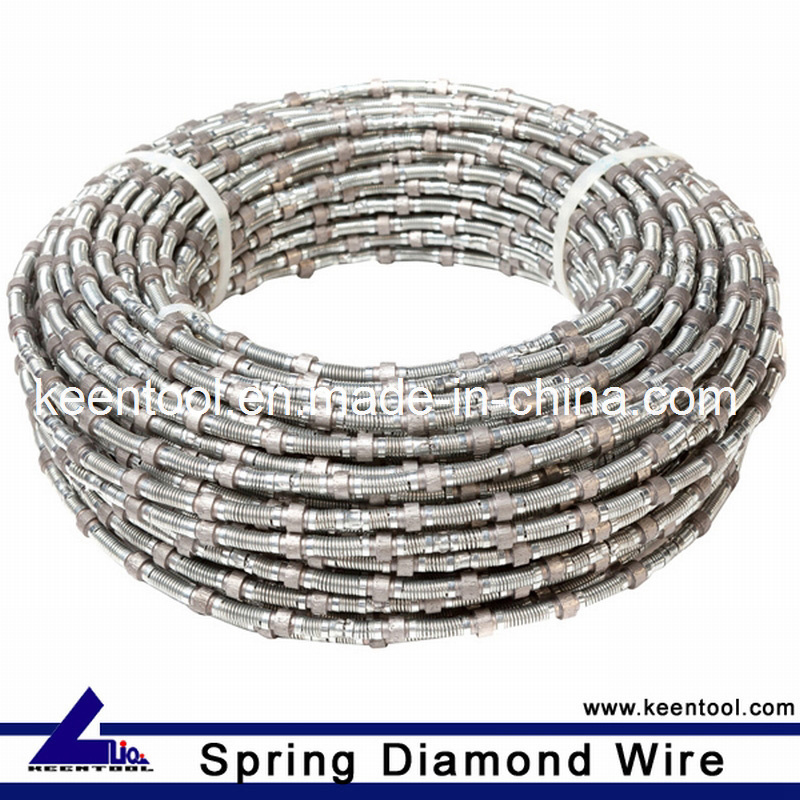

Travertine Cutting Wire |
| Beads: |
26-37/M |
| Coating: |
Spring |
| Materials: |
Diamond Beads with Steel Cable |
| Length Of Wire: |
50m/Roll |
| Weight: |
18.5kg |
| Package: |
Carton with Water Proof Plastic |
Product Description

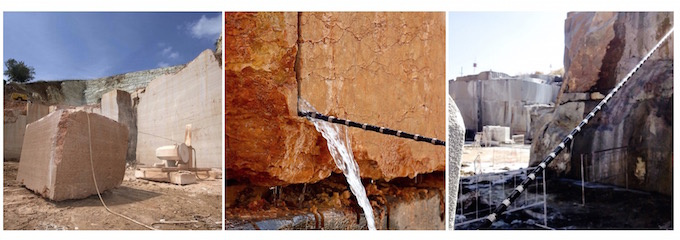

Description:Travertine cutting wire with advantages of good flexibility, low request for temperature, easy assembling, easy replacing and repairment, low cost, can be considered as the most simple and versatile of instruments for quarrying Marble, Limestone, Travertine etc.
Technical DataTravertine cutting wire
| Specification of Beads(mm) | Model | Coating | Beads No.
(Pcs/Meter) | Hardness of Marble | Cutting speed
(M2 /Hour) | Cutting life
( M2/Meter) |
Φ11.0mm
Φ10.5mm | MDW-KT-QS | Spring | 26 | SOFT | 16-25 | 55-75 |
| MEDIUM | 12-16 | 45-65 |
| HARD | 7-10 | 30-45 |
| | | | | | | |

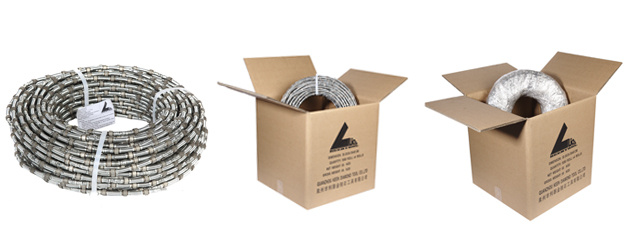

Packaging & Shipping:Packaging: Carton with water proof plastic.
Meters/Roll: 50 Meters/Roll
NW: 18.5KG
Sample lead time: In 3 working days.
Delivery time: In 14 days for quantity of 1000 Meters diamond cutting wire.
Our Services:1. Wire sawing operational assistance service.
2. Proposal for quarry development and plan, if necessary.
Company Information:We produce the travertine cutting wire with procedures as follows:
1. Sintered diamond beads with cobalt bond system and top quality diamond from South Korea and U. K, which make sure for good cutting performance in both speed and life.
2.40 PCS Diamond beads with specification of 11.5mm diameter, and 6.5mm width of diamond for better cutting life
3. Top quality steel cable from Germany with diameter of 4.8mm and structure of 133 thighs (7*19PCS), with guarantee for no break during normal work.
4. Good quality crude rubber with advanced technical procedures and equipment for injection, which make the rubber get inside of steel cable with better protection of steel cable and no break during work.
When place order of travertine cutting wire, please kindly inform:1. The power and technical parameters of wire saw machine
2. The hardness and chemical information of granite material, if possible
3. The usual dimension of cutting bench, especially the working height
4. Expected cutting performance in both speed and life
5. Special requirement if any
