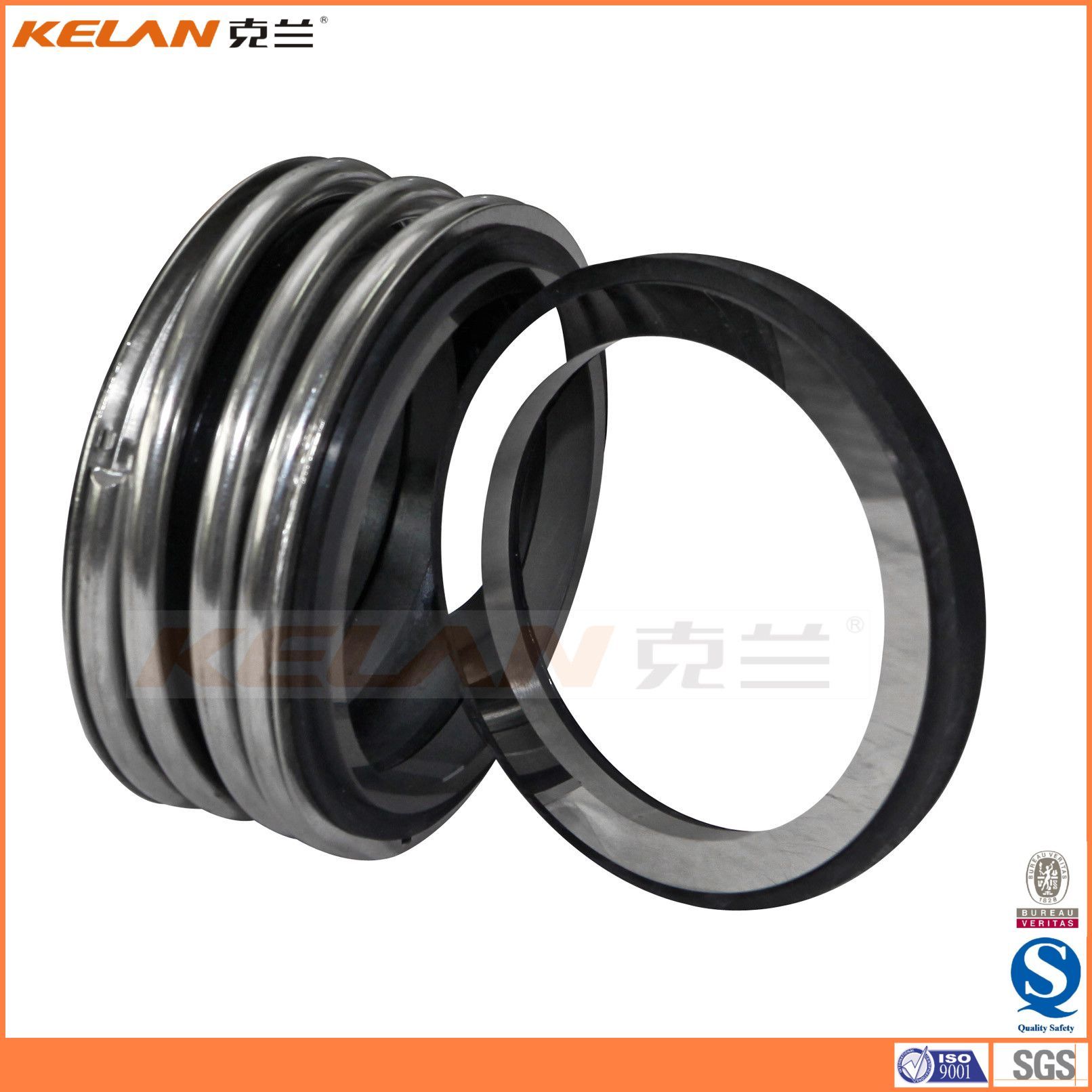

Kl109 Elastomer Bellow Mechanical Seal Pump Seal (Eagle Burgmann MG1 Type)
| Price: |
US $ 0.01/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
KL109 (Burgmann MG1) |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Usage: |
Wide |
| Standard: |
Standard |
| Type: |
HU5 |
| Performance: |
Cost-Effective |
Product Description
ELASTOMER BELLOW KL109 SERIES MECHANICAL SEALSApplicable Range:Pressure in seal chamber: 0-0.8MPa
Temperature in the seal chamber: -20ºC-----150ºC
Linear Velocity: ≤ 10m/s
Medium: water,polluted water,oil and minor corrosive liquid.
Static ring code: G4,G60,KL9Features:For plain shaft
Elastomer bellows rotating
Independent direction of rotation
Shaft protection over entire seal length
High flexibility due to wide offer on materials
Dimension adaptions and additional seats availableApplications:Process industry
Chemical industry
Pulp and paper industry
Water and waste water technology
Stock pumps
Circulating pumps
Submersible pumps
Water and waster water pumpsMaterials:Stationary Ring: , Ni-binder Tungsten Carbide, Silicon Carbide Reaction Bonded, Ceramic(Alumina), Silicon Carbide Sintered Pressureless
Rotary Ring: Resin Impregnated Carbon Graphite(), Antimony Impreg. Carbon Graphite, Silicon Carbide Sintered Pressureless, Silicon Carbide Reaction Bonded Secondary Seal: Fluorocarbon Rubber(Viton), Nitrile(NBR), Ethylene Propylene(EPDM)| | | | | | | | |
| Model(mm) | d | d1 | d2 | D | L | L1 | L2 |
| | | | | | | | |
| KL109-14 | 14 | 26.5 | 29.0 | 25 | 23.6 | 17.0 | 6.6 |
| KL109-18 | 18 | 29.0 | 32.0 | 33 | 27.0 | 19.5 | 7.5 |
| KL109-20 | 20 | 33.0 | 38.0 | 35 | 29.0 | 21.5 | 7.5 |
| KL109-25 | 25 | 38.0 | 42.5 | 40 | 30.5 | 23.0 | 7.5 |
| KL109-30 | 30 | 44.0 | 49.0 | 45 | 34.0 | 26.5 | 7.5 |
| KL109-35 | 35 | 50.0 | 57.0 | 50 | 36.0 | 28.5 | 7.5 |
| KL109-40 | 40 | 55.0 | 62.0 | 58 | 39.0 | 30.0 | 9.0 |
| KL109-45 | 45 | 60.0 | 68.0 | 63 | 39.0 | 30.0 | 9.0 |
| KL109-50 | 50 | 65.0 | 74.0 | 70 | 40.0 | 30.5 | 9.5 |
| KL109-55 | 55 | 72.0 | 81.0 | 75 | 46.0 | 35.0 | 11.0 |
| KL109-60 | 60 | 79.0 | 88.5 | 80 | 49.0 | 38.0 | 11.0 |
| KL109-65 | 65 | 84.0 | 93.5 | 85 | 51.0 | 40.0 | 11.0 |
| KL109-70 | 70 | 90.0 | 99.5 | 92 | 51.5 | 40.0 | 11.5 |
| KL109-75 | 75 | 95.0 | 107.0 | 97 | 51.5 | 40.0 | 11.5 |
| KL109-80 | 80 | 100.0 | 112.0 | 105 | 52.0 | 40.0 | 12.0 |
| KL109-85 | 85 | 107.0 | 120.0 | 110 | 55.0 | 41.0 | 14.0 |
| KL109-90 | 90 | 114.0 | 127.0 | 115 | 59.0 | 45.0 | 14.0 |
| KL109-95 | 95 | 119.0 | 132.0 | 120 | 60.0 | 46.0 | 14.0 |
| KL109-100 | 100 | 124.0 | 137.0 | 125 | 61.0 | 47.0 | 14.0 |
Excellent Supplier of LIANCHENG GROUPRemark: LIANCHENG GROUP is a large-scale enterprise in pump industry.
