Mechanical Seal for Textile Dyeing Machines, New 100% (KL103)
| Price: |
US $ 1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Usage: |
Wide |
| Standard: |
Standard |
| Performance: |
Cost-Effective |
Product Description

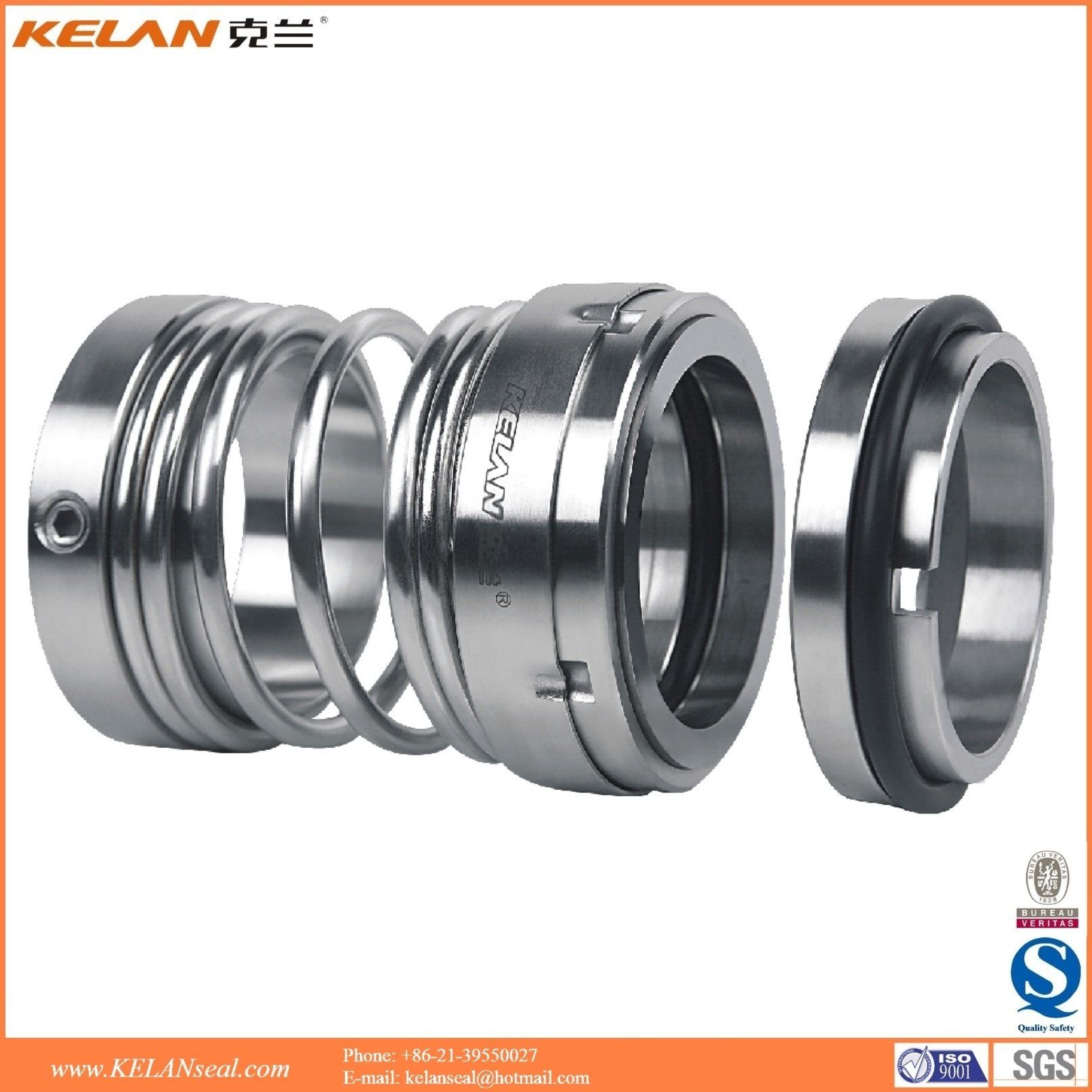

KL103 SERIES MECHANICAL SEALMechanical Seal for Printing And Dyeing Machinery, Textile Machinery.
Applicable Range:
Pressure in the seal chamber: 0-1.2MPa
Temperature in the seal chamber: -30ºC-----180ºC
Linear Velocity: ≤ 10m/s
Medium: water,polluted water,oil and minor corrosive liquid
The direction of rolling: looking from the stationary face,if the pivot be rolled in clockwise direction,spring should be in right direction rolling.
Static ring code: G103
Static ring:
Features:
Complies with GB6556
Certificate: ISO9001
For plain shafts
Shaft diameter d=22mm-95mm or as per requirement
High flexibility due to wide offer on materials
Dimension adaptions and additional seats available
Materials:
Seal face: Graphite, Silicon carbide, Tungsten carbide ,Aluminum oxide
Elastomer: NBR,Viton,EPDM
Metal component:SS304,316
Applications:
Process industry
Chemical industry
Pulp and paper industry
Water and waste water technology
Sugar industry| | | | | | | | | | |
| Model(mm) | d | d1 | D | D1 | L | L1 | L2 | L3 | L4 |
| | | | | | | | | | |
| KL103-22 | 22 | 39 | 42 | 32 | 67 | 62 | 19 | 5 | 48 |
| KL103-25 | 25 | 42 | 45 | 35 | 67 | 62 | 19 | 5 | 48 |
| KL103-30 | 30 | 52 | 50 | 40 | 75 | 70 | 19 | 5 | 56 |
| KL103-35 | 35 | 57 | 55 | 45 | 79 | 74 | 19 | 5 | 60 |
| KL103-40 | 40 | 62 | 60 | 50 | 83 | 78 | 19 | 5 | 64 |
| KL103-45 | 45 | 67 | 65 | 55 | 90 | 85 | 19 | 5 | 71 |
| KL103-50 | 50 | 72 | 70 | 60 | 94 | 89 | 19 | 5 | 75 |
| KL103-55 | 55 | 77 | 75 | 65 | 96 | 91 | 19 | 5 | 77 |
| KL103-60 | 60 | 82 | 80 | 70 | 96 | 91 | 19 | 5 | 77 |
| KL103-65 | 65 | 92 | 90 | 80 | 110 | 106 | 22 | 6 | 88 |
| KL103-70 | 70 | 97 | 97 | 85 | 116 | 110 | 25 | 6 | 91 |
| KL103-75 | 75 | 102 | 102 | 90 | 116 | 110 | 25 | 6 | 91 |
| KL103-80 | 80 | 107 | 107 | 95 | 123 | 117 | 25 | 6 | 98 |
| KL103-85 | 85 | 112 | 112 | 100 | 125 | 119 | 25 | 6 | 100 |
| KL103-90 | 90 | 117 | 117 | 105 | 126 | 120 | 25 | 6 | 101 |
| KL103-95 | 95 | 122 | 122 | 110 | 126 | 120 | 25 | 6 | 101 |
Excellent Supplier of LIANCHENG GROUP
Remark: LIANCHENG GROUP is a large-scale enterprise in pump industry.
Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
