Komatsu PC120 Hydraulic Hammer for Excavator Breaker with Excavator Hammer with Excavator
| Price: |
US $ 1/Set |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
JSB series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Yellow Black Optional |
| Delivery: |
3days After Place an Order |
| Impact Rate: |
120-1200bpm |
| Weight: |
80- 6100ton |
| Other: |
OEM Avilible |
| Suitable Excavator: |
1.2-100 Ton |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description

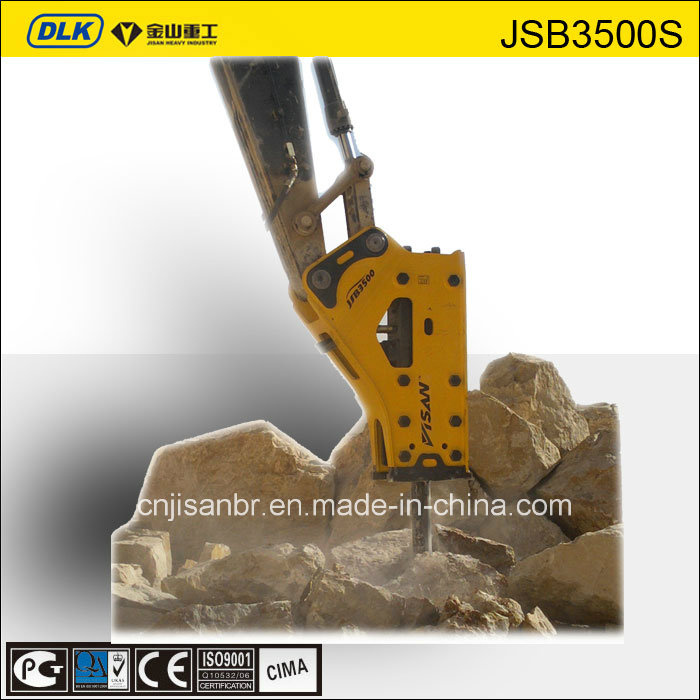

Hydraulic Rock Breaker, Rock breaker, Excavator hammer, Side type breaker, Top type breaker, Box type breaker for excavatorJSB series breakers are compatible with various brand of excavators including: DOOSAN, KOMATSU, CAT, SNAY, HYUNDAI R, CAT PALLET, Volvo, KOBELCO, KATO, KUBOTA, JCB, CASE, GEHL etc.
Our hydraulic breaker (hydraulic hammer) are applicable to a wide rang of weight class of excavators which from1.2 to100 tonFeatures:A. Incorporate much leading edge technology in hydraulic rock breaker. (Lower oil consumption, leading heat treatment, lower noise, long lifespan etc)
B. Suitable with a wide range of excavator.
C. Versatile application including rock broken, paving road, building demolition etc.
D. Top type breaker is applied to special operation that in large elevation angle.
E. Box type breaker namely silent breaker, which is sued in special project that noise is limited.
F one-stop service.
G easy use and easy maintenance.
We have BOX type breaker TOP type breaker SIDE type breaker
The box type (silent type)
The top type
Please contact me freely for further information.
The specification show you as follows for your reference.| THE SPECIFICATIONS OF SIDE TYPE BREAKER |
| Item\Model | Unit | JSB100S | JSB200S | JSB400S | JSB400S | JSB600S | JSB800S | JSB900S |
| Suitable Excavator | ton | 0.8-2.0 | 1.2-3.0 | 2.0-40 | 3.0-5.5 | 4.0-7.0 | 7.0-14.0 | 11.0-16.0 |
| Chisel Diameter | mm | 40 | 45 | 53 | 68/70 | 75 | 85 | 100 |
| Total Weight | kg | 70 | 80 | 165 | 254 | 264 | 486 | 853 |
| Overall Length | mm | 920 | 1100 | 1190 | 1347 | 1528 | 1920 | 2260 |
| Operating Pressure | kg/cm 2 | 90-120 | 90-120 | 90-120 | 110-140 | 110-160 | 120-170 | 150-170 |
| Required Oil Flow | L/min | 15-25 | 15-25 | 25-50 | 25-45 | 30-45 | 45-85 | 80-120 |
| Impact rate | bpm | 800-1400 | 700-1200 | 600-1100 | 500-900 | 500-800 | 400-700 | 400-700 |
| Hose Diameter | inch | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 |
| THE SPECIFICATIONS OF SIDE TYPE BREAKER |
| Item\Model | Unit | JSB1200S | JSB1600S | JSB1900S | JSB2800S | JSB3500S | JSB4500S | JSB5000S |
| Suitable Excavator | ton | 15-18 | 19-26 | 19-26 | 27-38 | 28-40 | 36-45 | 40-55 |
| Chisel Diameter | mm | 120 | 1350 | 140 | 150 | 155 | 165 | 175 |
| Total Weight | kg | 1300 | 1679 | 1898 | 2455 | 2650 | 3753 | 3910 |
| Overall Length | mm | 2530 | 2695 | 2810 | 2895 | 3152 | 3310 | 3400 |
| Operating Pressure | kg/cm 2 | 150-170 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 |
| Required Oil Flow | L/min | 90-120 | 120-160 | 130-170 | 150-190 | 170-220 | 200-300 | 210-290 |
| Impact rate | bpm | 400-700 | 400-700 | 400-600 | 350-500 | 250-400 | 250-350 | 200-350 |
| Hose Diameter | inch | 1 | 1 | 1 | 1 | 1 . 25 | 1 . 25 | 1 . 25 |
