Kze-B Thread Locked Type Hydraulic Quick Coupling
| Price: |
US $ 5-15/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
KZE-B (INTERCHANGE WITH FASTER PVVM) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
From 1/4' and 3/8', All Threads Are Available |
| Interchangeability: |
Faster Pvvm, Parker 3000 |
| Working Pressures: |
10, 000 Psi |
| Mechanical Connection: |
Screw System |
Product Description

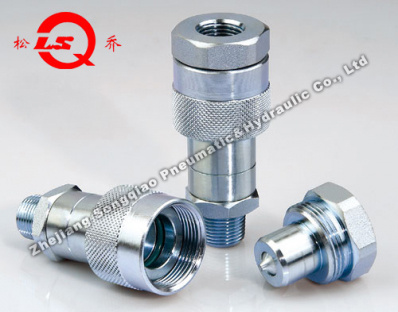

KZE-B Thread Locked type hydraulic quick coupling(steel)
Applications: SongQiao KZE-B Series couplings with their threaded union locking system and precision ball-type check valves, are designed for extreme high pressure applications such as portable hydraulic jacks. Specifications:| Body Size(in) | 1/4 | 3/8 |
| Rated Pressure(PSI) | 10.000 |
| Rated Flow(GPM) | 3 | 6 |
| Temperature Range(std seals) | -20ºC to +120ºC |
| Standard seal material NBR |
KZE-B Features: 1. Machined from solid steel barstock for durability.
2. The KZE-B Series employs a threaded sleeve locking mechanism, mates with matching male threads on the nipple. The two halves must be manually threaded together for connection.
3. Hard, chrome alloy balls are used for valving. They are spring loaded for positive seating of the valve.
4. The valve provides a metal-to-metal seal between the ball and coined seat.
5. The interface seal is polyurethane which resists high pressure extrusion.
6. A threaded valve retainer provides a valve stop that assures positive valve alignment.
7. Compatible with PARKER 3000 Series and FASTER PVVM Series.

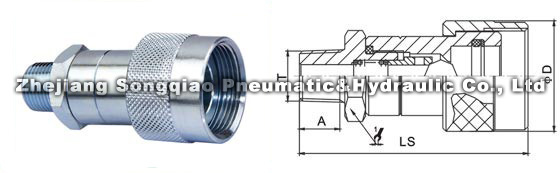

| PARTNO. | LS | ¢D | HEX1 | A | T |
| KZB-B-02SM | 60.8 | 28.5 | 22 | 13.5 | NPT1/4 |
| KZB-B-03SM | 73.5 | 35 | 25 | 14.4 | NPT3/8 |

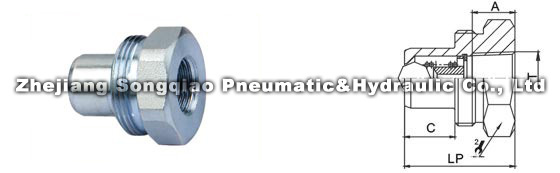

| PARTNO. | LP | C | HEX2 | A | T |
| KZE-B-02PF | 32.5 | 11.2 | 19 | 13 | NPT1/4 |
| KZE-B-03PF | 35 | 16 | 32 | 13.5 | NPT3/8 |
| PARTNO. | L | ¢D | HEX1 | HEX2 | T |
| KZE-B-02 | 74.5 | 28.5 | 22 | 19 | NPT1/4 |
| KZE-B-03 | 83.5 | 35 | 25 | 32 | NPT3/8 |
