Labor Saving Wrench Hydraulic Tools Square Drive Hydraulic Torque Wrench
| Price: |
US $ 1000-5000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
FY-MXTA |
| Model: |
Fy-Mxta |
| Min Torque: |
183nm |
| Max Torque: |
48666 |
| Bolt Diameter: |
M16-M115 |
| Nut Size: |
24-165mm |
| Color: |
Customize |
| Working Pressure: |
700bar |
| Weight: |
2.3-53.5kg |
Product Description
Product Description

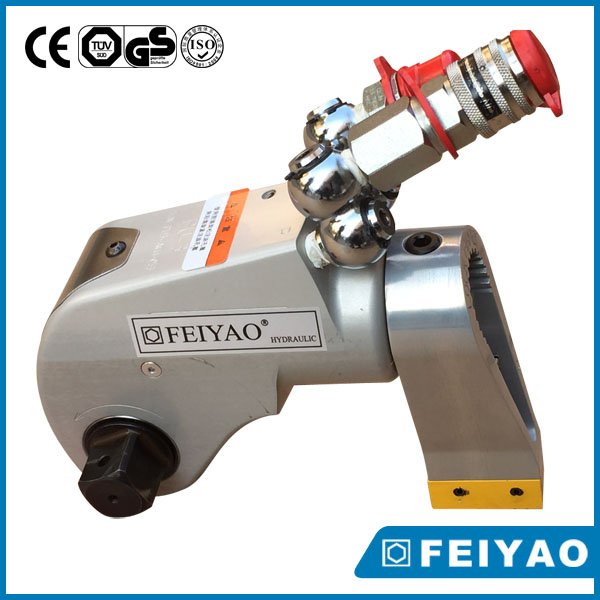

Labor saving wrench hydraulic tools square drive hydraulic torque wrench
Product Description:1. Very high torque-to-weight ratio2. High speed, double acting operation3. High degree of rotation angle4. Never-jam mechanism5. High repeatability, with accuracy ± 3%6. Slim nose radius and 360 degree swivel hose connection allow easier positioning in confined areas7. Few moving parts means durability and low maintenance8. Push button drive release; No tools needed to reverse square or allen key drives for tighening or loosening
Model No. for your reference: | Model | FY-
02MXTA | FY-
05MXTA | FY-
08MXTA | FY-
10MXTA | FY-
16MXTA | FY-
20MXTA | FY-
27MXTA | FY-
39MXTA | FY-
50MXTA | FY-
60MXTA |
| Max. Torque (N.M) | 1940 | 4763 | 8012 | 10704 | 15633 | 20782 | 28286 | 39584 | 50844 | 58673 |
| Min.torque(N. M) | 139 | 340 | 572 | 765 | 1117 | 1484 | 2020 | 2827 | 3632 | 4263 |
| Screw size(mm) | 24-55 | 32-75 | 41-85 | 46-95 | 55-105 | 60-115 | 65-130 | 75-145 | 95-170 | 105-185 |
| Bolt size(M) | 16-36 | 22-48 | 27-56 | 30-64 | 36-72 | 39-80 | 42-90 | 48-100 | 64-120 | 72-130 |
| axle | 3/4" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" |
| L1 | 127 | 170 | 213 | 223 | 251 | 2774 | 309 | 320 | 358 | 375 |
| L2 | 187 | 253 | 292 | 354 | 359 | 418 | 453 | 490 | 522 | 539 |
| L3 | 106 | 145 | 168 | 206 | 210 | 250 | 260 | 290 | 305 | 315 |
| H3 | 52 | 70 | 82 | 94 | 103 | 110 | 126 | 135 | 150 | 156 |
| H2 | 77 | 101 | 127 | 138 | 147 | 163 | 192 | 205 | 214 | 220 |
| H3 | 98 | 133 | 153 | 184 | 196 | 225 | 234 | 269 | 276 | 288 |
| H4 | 169 | 201 | 200 | 281 | 185 | 326 | 328 | 354 | 358 | 373 |
| R | 26 | 35 | 40 | 50 | 52 | 60 | 66 | 70 | 75 | 78 |
weight
(kg) | 2.3 | 5.2 | 8 | 12 | 14.8 | 18.9 | 28 | 41.2 | 46.3 | 53.5 |
Our Service:FEIYAO provide one year guarantee for all the hydraulic torque wrench. We promise if there is any dysfunction of the hydraulic torque wrench during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded in 24 hours.Company Information:Jiangsu Feiyao Machinery Manufacturing Co.,Ltd. Is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001: 2008 consecutively.We are a manufacturer in tools, such as:? Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;? Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);? Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)? Hydraulic pumps, manual and electric type (max up to 3000bar);? Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)? Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.FAQQ1: How can contact sales? A1: Please call: 86-158-5692-3291 for pre-sales or click the contact find our website and email address.Q2: How can I buy FEIYAO products in my country? A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country. Q3: Can I have FEIYAO products catalog and price list? A3: Please visit our English website: www.fyhydraulic.com/en to download our E-catalog, and send us an email for price listQ4: How long does it take to get the product If I place an order? A4: If products stock available, after confirmation of your payment or advance payment, we will pack and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea shipment, it will take 15-45 days depending on different locations. Q5: How to make payment? A5: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma invoice with our banking details. Q6: Manufacturing time? Q6: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-20 days. If it is customized, not our standard products, it will take 20-45 days to produce. For more information about the products please contact me as below: Jiangsu Feiyao Machinery Manufacturing Co.,Ltd
