| Prod Model: |
CG61200 |
| Name: |
Manually Conventional Horizontal Lathe |
| Machining Parts: |
Flange, Wheel Turbine,Cylinder, Shaft, etc |
| Max.Swing Over The Bed: |
2000 mm |
| Max.Length Of Work-Piece: |
3000-120000 mm( Configurable ) |
| Max. Weight Of Work-Piece: |
20t |
| Chuck Diameter: |
1600 mm |
| Delivery Time: |
120 Days |
| Installation And Commissioning: |
Available for Foreign on-Site Service |
| Quality Warranty Period: |
One Year Quality Warranty |
| Customized Lathe Machine: |
Manufacture Customized Lathe |
| Type: |
Horizontal Lathe |
| Tool Holder: |
Double-tool Holder CNC Lathe |
| Power Source: |
Mechanical Drive |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Processing Accessory: |
Flanges, Cylinders, Wheel Turbine,etc |
Product Description

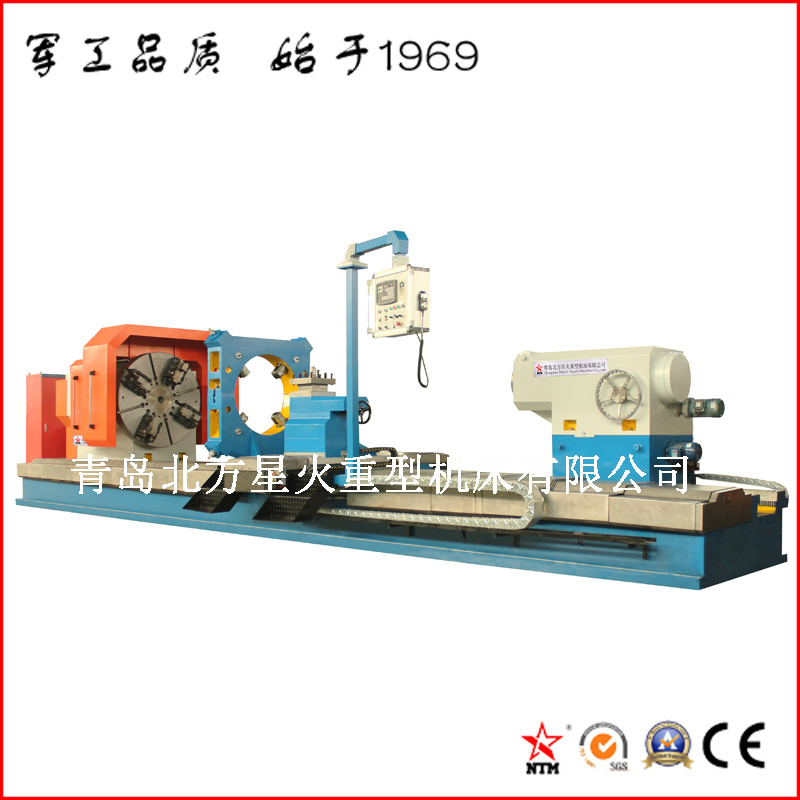

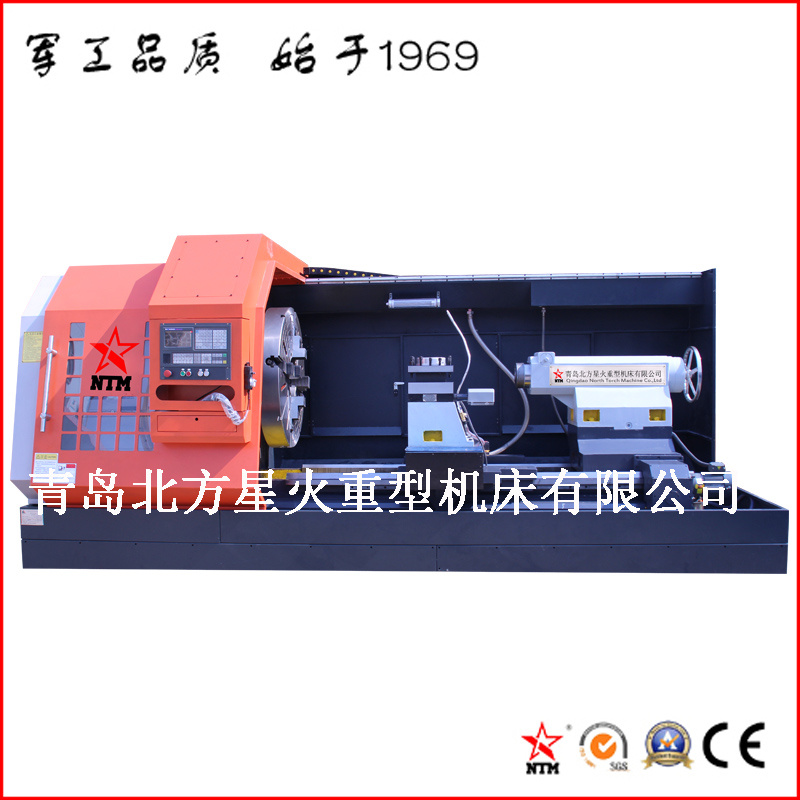

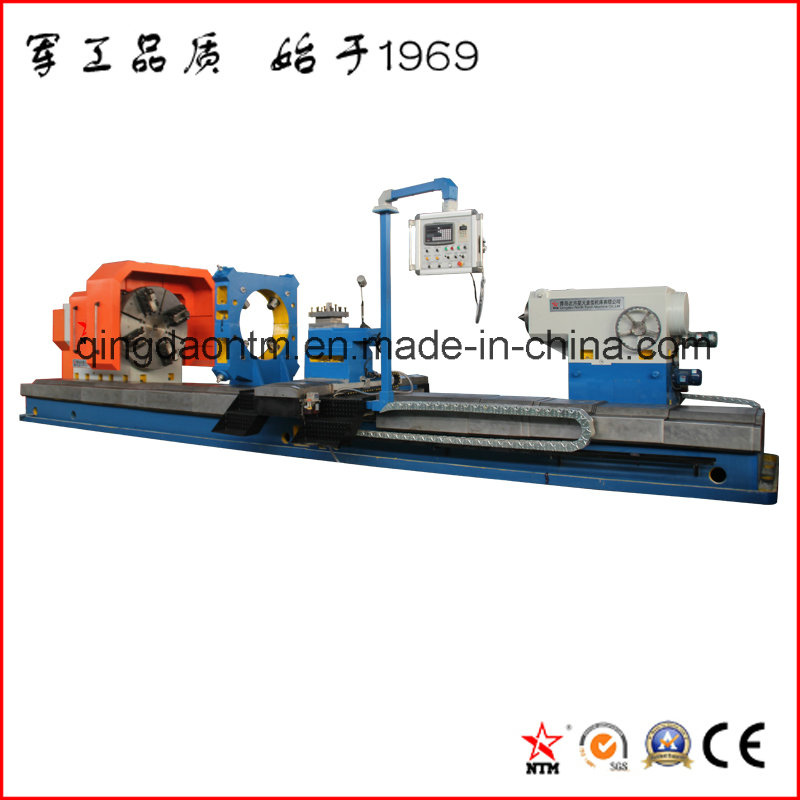

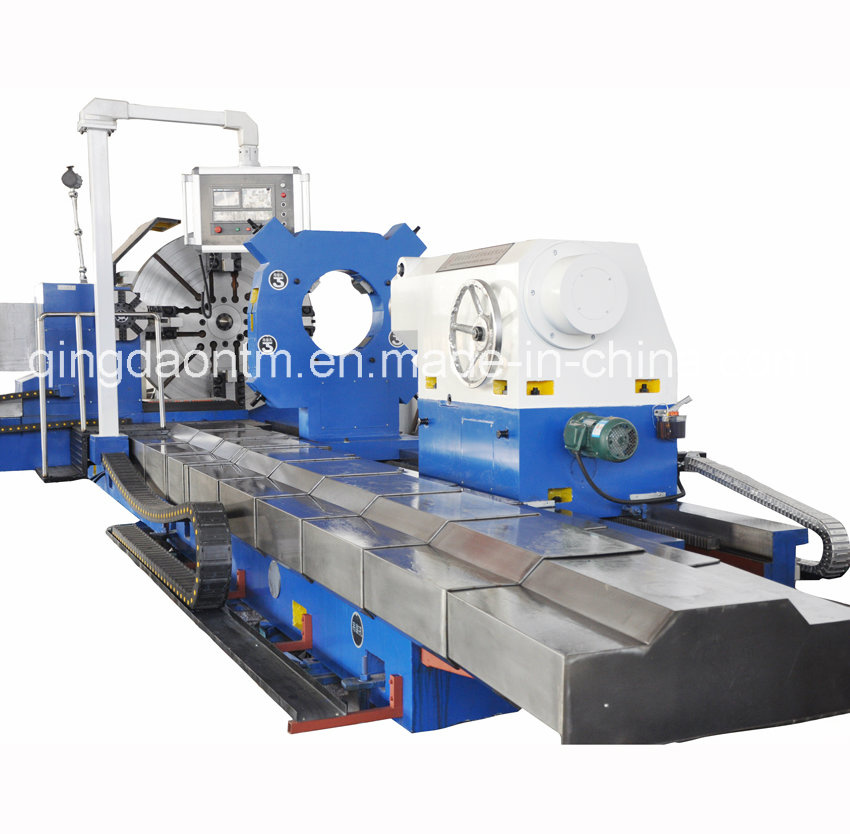

Large Heavy Duty Horizontal CNC Lathe
For Turning Printing Cylinder,Tire Mold,Automobile Hub Turbine,Flange,Oil Pan,Shaft,etc
More than 50 years'experience in machine industry since 1960sManual Control,CNC System like FANUC ,SIMENS or Chinese Brand system (Optional)
Wider guiderails, three X-rails, One piece body to ensure a higher cutting rigidity.
High configuration and low cost. Maximize Customer's Profitability under the minimum invest cost.
Application: This series heavy duty horizontal lathe can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, but also the external/internal cylindrical / conical/ spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body. What's more, it can also realize the constant speed cutting line. This series heavy duty horizontal CNC Lathe is extensively used in Automobile industry, minings and metallurgy, wind power, shipping building and transportation, and other machinery industry, etc.
2. Technical Parameters
Horizontal CNC Lathe for Railway Wheel Pair Machining , exported to Vietnam Government and CSR. | Name | CG61100 | CG61125 | CG61160 | CG61200 | CG61250 | CG61300 |
| Description | Unit |
| Max. Swing Over Bed | mm | 1000 | 1250 | 1600 | 2000 | 2500 | 3000 |
| Max. Swing Over the skateboard | mm | 650 | 800 | 1200 | 1650 | 1800 | 2800 |
| Max. Weight of Work-piece | T | 10 | 15 | 20 | 20 | 20 | 40 |
| Max. Length of Work-piece | mm | 3000-12000 |
| Gears of Spindle Speed | / | Infinitely Variable Speed/step-less speed |
| Range of Spindle Speed | r/Min | 10-300 | 10-200 | 10-160 | 4-80 | 4-80 | 1.6-63 |
| Chuck Diameter | mm | 800 | 1000 | 1250 | 1600 | 2000 | 2500 |
| X,Z-Axis Feed Range | mm/Min | 0-3000 |
| Horizontal Stroke | mm | 500 | 625 | 800 | 1000 | 1250 | 1000 |
| Longitudinal Stroke | mm | 3000-12000 |
| Main Driving Motor | Kw | 11 | 22 | 45 | 75 | 75 | 75 |
| Cutting Force (Carriage) | Kn | 4 | 6 | 20 | 40 | 40 | 60 |
| Sleeve Diameter of Tailstock | mm | 180 | 180 | 290 | 290 | 290 | 480 |
| Spindle Diameter of tailstock | mm | 125 | 125 | 160 | 160 | 160 | 240 |
3. After-sale Service and Maintenance
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
Other Machine Pictures--Professional Heavy Duty Roll Lathe Machine
Current Customers for Heavy Duty Horizontal CNC Lathe: Norway, Romania, India, Iran, Thailand, Singapore, Russia, Mexico,etc.
For more details, please feel free to contact us. Thanks!
