North China Horizontal CNC Lathe for Turning Wind Power (CG61200)
| Price: |
US $ 1999/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
CG61200 |
| Control System Of Heavy Duty CNC Lathe: |
Fanuc, Simens, Mitsubish, GSK, etc |
| Machining Parts: |
Flange, Wheel Turbine, Cylinder, Shaft, etc |
| Max.Swing Over The Bed: |
1000 mm |
| Max.Length Of Work-Piece: |
3000-120000 mm( Configurable ) |
| Max. Weight Of Work-Piece: |
10 T |
| Chuck Diameter: |
800 mm |
| Delivery Time: |
30-45 Days |
| Installation And Commissioning: |
Available for Foreign on-Site Service |
| Quality Warranty Period: |
One Year Quality Warranty |
| Customized Lathe Machine: |
Manufacture Customized Lathe |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Tool Holder: |
Customized Configuration |
| Power Source: |
Customized Configuration Is Available |
Product Description
China Large Professional Horizontal Lathe Machine With 50 Years Experience
(Conventional & CNC control,both are Available)
For Turning and Grinding Roll Shaft, Cylinders, Oil Pipe, Marine Propeller Shaft,Tire Mold, Railway Parts,Wheel Hub Turbine,Flange,etc
1. Outstanding Characteristics: Our company was established in 1969 as a military enterprise at the beginning. With more than 50 years experience, we are specialized in re-designing and manufacturing customized lathe machines per your special demands and requests.

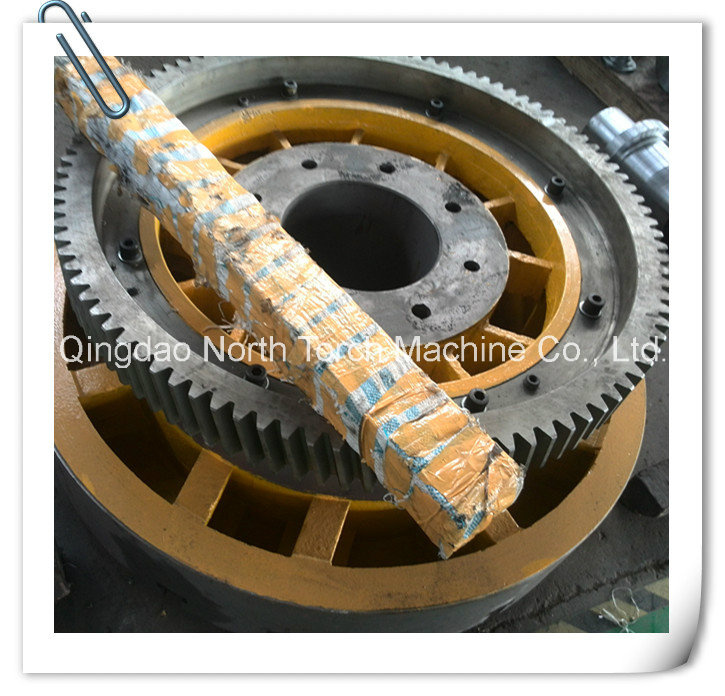

This series lathe machine can be designed into a CNC Grinding Lathe Machine with turning and Grinding functions. It can help you save time and improve efficiency for the part which needs to be truned and Grinding like marine/vessel propeller shaft, Cylinders, etc.1). Reasonable Structure and excellent performance.Special Design for Headstock that use Gear Rim to ensure a large Torque of lathe machine .
2.). High Rigidity, Stability and Precision Maintenance
3.) Permanent After-sale Service to ensure maximum customer's profitability.
4.) Engineers are available for free over-sea installation,commissioning and Training the operators at customer's factory.
5.) All components for machine are freely provided within 3 days by Air to prevent customer's production suspended and minimum customer 's loss within warranty period. 6.) The Main machine components are strictly inspected by the advanced CMM to ensure the excellent quality and high precision.

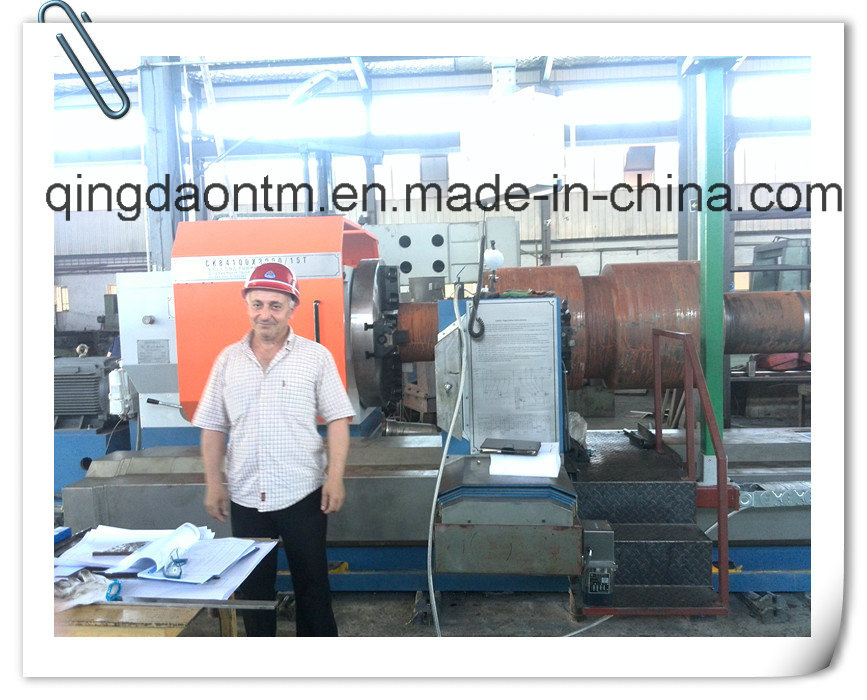

Machine is under Test before shipment by our Customer from Georgia. Inspoection Result is Perfect. Customer is satisfied with our lathe machine.

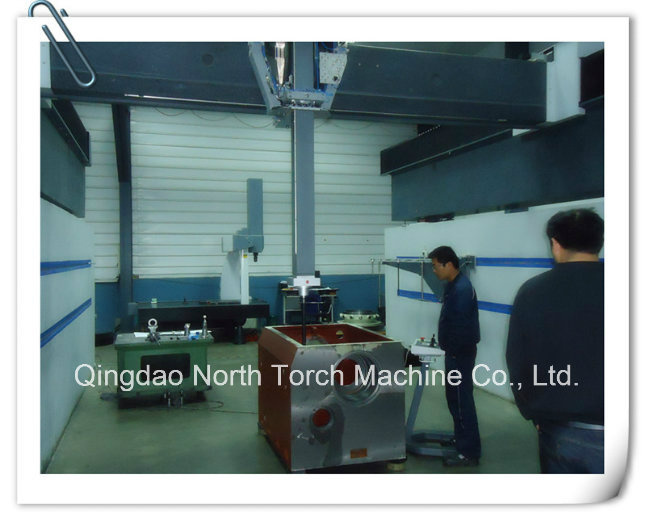

The following picture is the main part that are inspected .
Our Principle : Maximize Customer's Profitability under the minimum invest cost.
Application: This series CNC horizontal lathe can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, but also the external/internal cylindrical / conical/ spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body. What's more, it can also realize the constant speed cutting line. It has both turning and Grinding functions that can finish machining the part one time, which saves clamping times and improve the working efficiency for customers.
2. Technical Parameters | Name | CG61100 | CG61125 | CG61160 | CG61200 | CG61250 | CG61300 |
| Description | Unit |
| Max. Swing Over Bed | mm | 1000 | 1250 | 1600 | 2000 | 2500 | 3000 |
| Max. Swing Over the skateboard | mm | 650 | 800 | 1200 | 1650 | 1800 | 2800 |
| Max. Weight of Work-piece | T | 10 | 15 | 20 | 20 | 20 | 40 |
| Max. Length of Work-piece | mm | 3000-12000 |
| Gears of Spindle Speed | / | Infinitely Variable Speed/step-less speed |
| Range of Spindle Speed | r/Min | 10-300 | 10-200 | 10-160 | 4-80 | 4-80 | 1.6-63 |
| Chuck Diameter | mm | 800 | 1000 | 1250 | 1600 | 2000 | 2500 |
| X,Z-Axis Feed Range | mm/Min | 0-3000 |
| Horizontal Stroke | mm | 500 | 625 | 800 | 1000 | 1250 | 1000 |
| Longitudinal Stroke | mm | 3000-12000 |
| Main Driving Motor | Kw | 11 | 22 | 45 | 75 | 75 | 75 |
| Cutting Force (Carriage) | Kn | 4 | 6 | 20 | 40 | 40 | 60 |
| Sleeve Diameter of Tailstock | mm | 180 | 180 | 290 | 290 | 290 | 480 |
| Spindle Diameter of tailstock | mm | 125 | 125 | 160 | 160 | 160 | 240 |
Rermarks:
1. The above 6 models of Heavy Duty Horizontal CNC Lathe Machine are the standard configurations, we can also design and manufacture customized lathe machines according to the user's workpiece features. So that when you inquire of our lathe machine, please kindly inform us the Length,Diameter,Width,Weight of work-piece, we can recommend the proper machine. Both Conventional or CNC Control are OK, please laso tell us which type you need when you inquire. Thanks
2. This series heavy duty horizontal CNC Lathe Machine have been exported to Georgia, Pakistan, South Africa, Norway, Thailand, Romania, Iran, Russia, Chile for machining Roll, Shaft, Cylinders, railway parts, automobile parts, mining and metallurgy, shipping building, wind power and other machinery industry. 3. Package and Shipment
Anti-rust Oil /Anti-Corrosive Oil for the whole machine. Wrapping protective film.

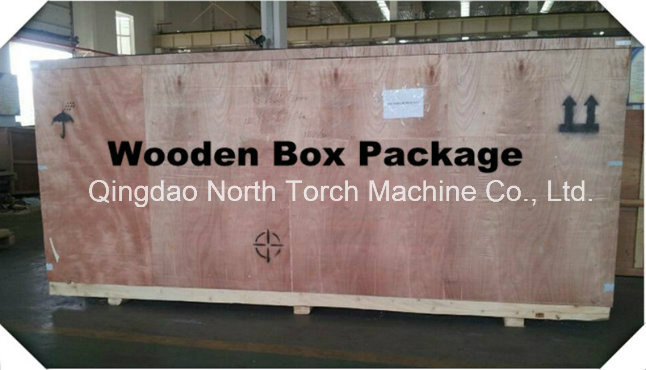

Wooden Box package, vacumm package is also available per customer's special request.
4. After-sale Service& Maintenance1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe. We can also extend the warranty period according to customer's special demands.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. And we warmly welcome you to visit our company for technonolgy discussion and business negociation. Thanks!
Best Regards,
Anna.Sun
Qingdao North Torch Machine Co., Ltd was established in the 60s of last Century. It originally belonged to Liuting Airport Military Enterprise of North China Sea Fleet Aviation (Aviation Machinery Plant), and it is primarily responsible for aircraft maintenance, spare parts processing, middle and small sized machinery manufacturing, etc. In accordance with the document issued in 1999 by central military commission and the state council, the company was changed from military enterprise into a private company, and developed continuously.
CNC Heavy-duty horizontal lathe, roll lathe, CNC End-Face lathe, automobile wheel hub lathe, large floor-type lathe and floor-type boring and milling machine are the leading products of the company. These machines are widely applied to the energy & transport, mining &metallurgy, railways & shipbuilding, pipe molding, automobile parts, wind power chemical industry and other machinery manufacturing industries.
We provide the perfect CAD/CAM information processing and 3D design software, combined with domestic higher-educational institutions to form a science and technology association. We averagely launch more than 5 high technical patent products annually.
The company has passed ISO9001 international quality management system certification, and become one of the 100 progressive growth enterprise supported by the Qingdao Government. It is also an enterprise supported by the national innovation funds. As a key enterprise in Shandong province, we are the first enterprise that researched and manufactured the large floor-type lathe series.
With the concept of "diversity and pursuit of excellence", we aim to offer superior products and service to our customers.
