| Prod Model: |
WSM-55 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Wire Saw |
| Main Motor: |
37-45-55-75kw |
| Cutting: |
Any Direction Cutting |
| Speed: |
0-40m/S |
| Rotation: |
360 Degree |
| Driving Wheel: |
800/1000mm |
| Length Of Wire: |
20-150m |
| Power Supply: |
3p, 380V, 50Hz |
| Applcation: |
Stone Cutting |
| Certificaiton: |
CE SGS |
| Type: |
CNC Cutting Machine |
| Usage: |
Marble |
| Application: |
Construction |
| Source Voltage: |
380V |
| Automation: |
Automatic |

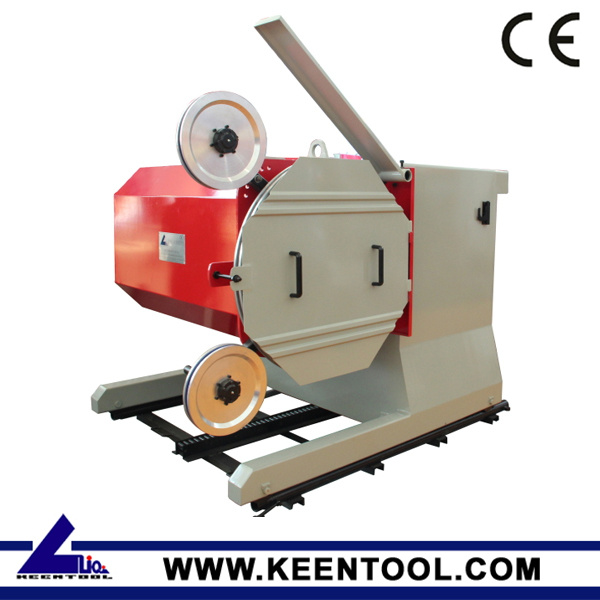

Product Description
We, Keen Diamond Tool Co. Ltd is a specialized manufacturer of diamond tools and equipment for stone quarrying and processing for years, especially in the fields of diamond wires, diamond beads, wire saws, DTH drill etc.
Our newest wire saw machines with features of:
1-Variable wire speed range from 0-40 M/S
2- Automatic step-less tensioning system to keep the wire always in optimal working condition.
3. Motorized rotation of driving wheel holder from 0-3600 with limit protection for over movement.
4. Motorized lateral extension of flywheel shaft position +/- 350-400mm with limit protection for over movement.
5- Maximum travel speed on rail without loading 1.75 Meters/Min.
6- Safety alarm and stop system in case of unexpected wire break or any other faults.
7Distant control with very simple panel to operate the saw with better safety easier understanding to the operator.
8Separate automatic reset selection switch to control the rotation and lateral extension movement; Which can be take off when it is no need.
9-20 second main motor start alarm sound and flash light to warn around people leave away.
10Big and strong steel frame with dimension of 2m length, 1.4m width and 1.3meter height which allows more inside space for easier maintenance and repairment.
11-General gross weight: 2500-3400kgs; General volume dimension: 4-7cubic meter (with packing)
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
