| Prod Model: |
BL-37G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Stone, Rock and Concrete Cutting |
| Voltage: |
380V / 50Hz |
| Power: |
11 - 75 Kw |
| Rotation Angle: |
360 Degree |
| Loading Port: |
Xiamen |
| Application: |
Stone Saw |
| Type: |
Fixed |
| Power Source: |
Electricity |
| Saw Type: |
Wire Saw |
| Brand: |
Bestlink |
Product Description
Products Feature:

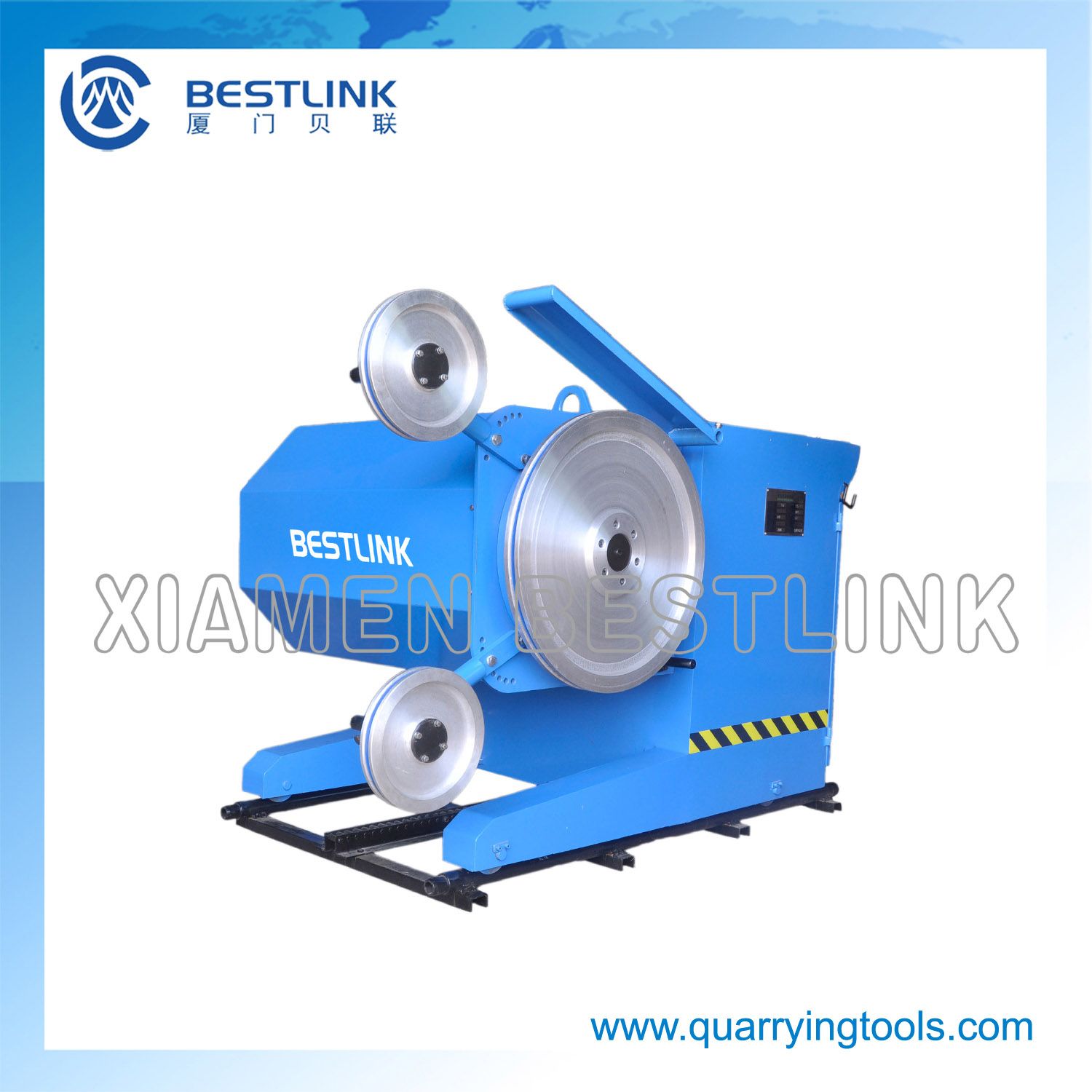

This BL Series Diamond wire saw can apply horizontal, vertical and acclivity and other direction cutting in the quarry. Diamond wire saw can exploit large specification and regular blocks, the cutting fact is smooth and less hurt to the block, the thin crack of the stone operation can improve the working condition and increase the safety factor.
Advantage:
1.The wire tension and cutting current is closed loop automatic controlled by PLC and inverter.
2.The cutting process can be automatic controlled accurately.
3.The movement and rotation of the cutting head is driven by motor with position Limitation Protection.
4.Machine protection functions including: wire broken, Machine overload, cutting finished, and others malfunction happened.
5.Display an saving with digitization: the value of cutting current, linear speed and moving speed indicated on the panel, and the cutting time can be saved.
6. The machine without phase request. It is needn't to change and distinguish .
Main Technical Date:
| Type | BL-11G | BL-15G | BL-18.5G | BL-22G | BL-30G | BL-37G | BL-45G | BL-55G | BL-75G |
| Driving Motor Power (kw) | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 |
| Flywheel's Diameter(mm) | 550 | 550 | 650 | 650 | 800 | 800 | 800 | 800 | 1000 |
| Linear Wire Speed(m/s) | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 |
| Towable length of wire (m) | 10-20 | 10-30 | 10-35 | 10-40 | 20-50 | 20-80 | 20-100 | 20-120 | 20-150 |
| Feeding Power (kw) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
| Sideways range (manual)(mm) | | | 200 | 200 | 450 | 450 | 450 | 450 | 650 |
| Rotation Angle (Degree celsius) | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 |
| Machine Travelling speed (m/h) | 0-30 | 0-30 | 0-30 | 0-30 | 0-32 | 0-32 | 0-32 | 0-32 | 0-32 |
| Length of Rail | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 |
| Power (AC V/Hz) | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| Working Temperature Range | -15~40 | -15~40 | -15~40 | -15~40 | -15~40 | -15~40 | -15~40 | -15~40 | -15~40 |
| Weight (Tons) | 0.35 | 0.37 | 0.6 | 0.7 | 2.1 | 2.3 | 2.6 | 2.9 | 3.1 |
