| Prod Model: |
RE542, RE004, RE543, RE545, RE547, PR52, PR54 |
| Sizes: |
3 Inch to 6 Inch |
| Model: |
Re531, Re004, Re542, Re543, Re545, Pr40, Pr52 |
| Color: |
as Request |
| Quantity: |
Small Quantity Is Acceptable |
Product Description
About us:We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as France, Spain, Italy, South Africa, Iran, Malaysia, Australia ad etc.Futures: Manufactured using premium hardened metals for long life;
Maximum material recovery, up to 98%;
No cross contamination of samples;Handles injection of water, foam, oil, and polymers without performance loss;
Delivers maximum drilling under water.
Product specifications:
1) 3" RC hammers: RE531
2) 4'' RC hammers: RE004/RE004R; RE542
3) 5'' RC hammers:RE543,RE545,RE547;PR40,PR52,PR54; MX5456
4) 6'' RC hammers: RC62/RC62R
5) 8'' RC hammers: RC82/RC82R
6) 10'' RC hammers: RC100/RC100R | Hammer | Bit Shank | Hole Range(mm) | External Diameter(mm) | Length (without bit)mm | Weight | Connection Thread | Working Pressure |
| RE531 | RE531 | 84-100 | 81 | 1069 | 29 | 3" Remet | 1.0-3.0Mpa |
| RE004 | RE004 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet
4" Metzke | 1.0-3.0Mpa |
| RE542 | RE542 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet
4" Metzke | 1.0-3.0Mpa |
| RE543 | RE543 | 120-135 | 116 | 1191 | 62 | 3.5"-4" Remet
4" Metzke | 1.0-3.0Mpa |
| RE545 | RE545 | 122-135 | 117.5 | 1261 | 65 | 4"-4.5"Remet 4"-4.5"Metzke | 1.5-3.5Mpa |
| RE547 | RE547 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |
| PR40 | PR40 | 124-142 | 120.5 | 1362 | 80.5 | 3.5"-4.5"Remet 3.5"-4.5"Metzke | 1.5-3.5Mpa |
| PR52 | PR52 | 126-142 | 121 | 1227 | 68.5 | 4"-4.5"Remet 4"-4.5"Metzke | 1.5-3.5Mpa |
| PR52R | PR52/PR52R | 130-146 | 124 | 1225 | 65 | 4"-4.5"Remet 4"-4.5"Metzke | 1.5-3.5Mpa |
| PR54 | PR54 | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |
| MX5456 | MX5456 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |
| RC62/RC62R | RC62/RC62R | 152-190 | 146 | 1320 | 110 | As Request | 1.5-3.5Mpa |
| RC82/RC82R | RC82/RC82R | 190-250 | 180 | 1395 | 185 | As Request | 1.5-3.5Mpa |
| RC100/RC100R | RC100/RC100R | 250-370 | 240 | 1528 | 328 | As Request | 1.5-3.5Mpa |
RC bits sizes available:Specification:
1) 3" RC bits diameter 84mm-100mm shank RE531
2) 4'' RC Bits:Diameter (104mm-127mm); Shank type: RE004/RE004R;
RE542
3) 5'' RC Bits:Diameter(113mm-146mm) ; Shank type: RE543,RE545,RE547;PR40,PR52,PR54; MX5456
4) 6'' RC Bits: Diameter(152-190mm); Shank type: RC62/RC62R;
5) 8'' RC Bits: Diameter(190-250mm); Shank type: RC82/RC82R;
6) 10'' RC Bits: Diameter(250-370mm); Shank type: RC100/RC100R.
Other size can be upon to customer's requirements We can also provide related products DTH hammers and bits, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc

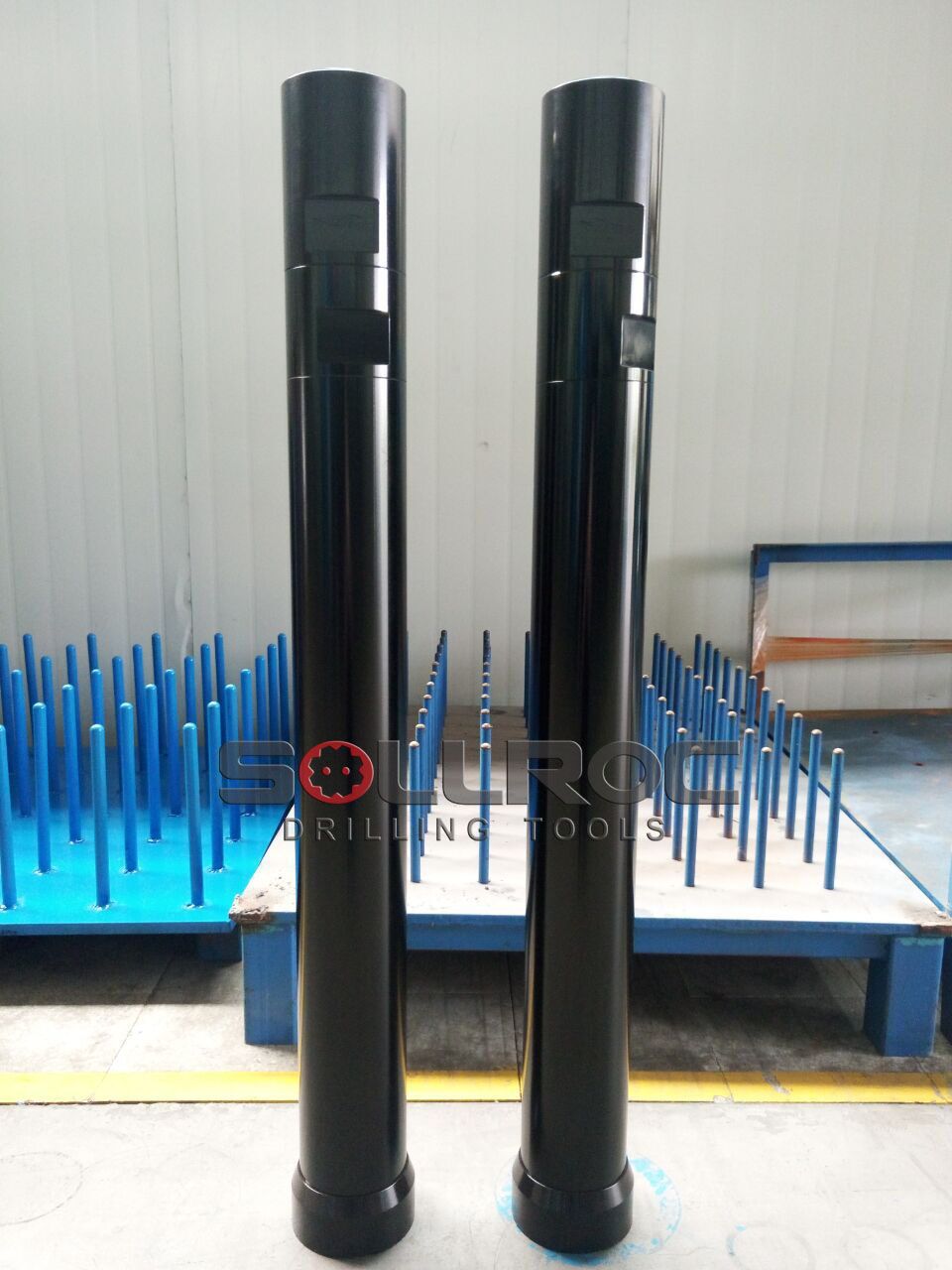

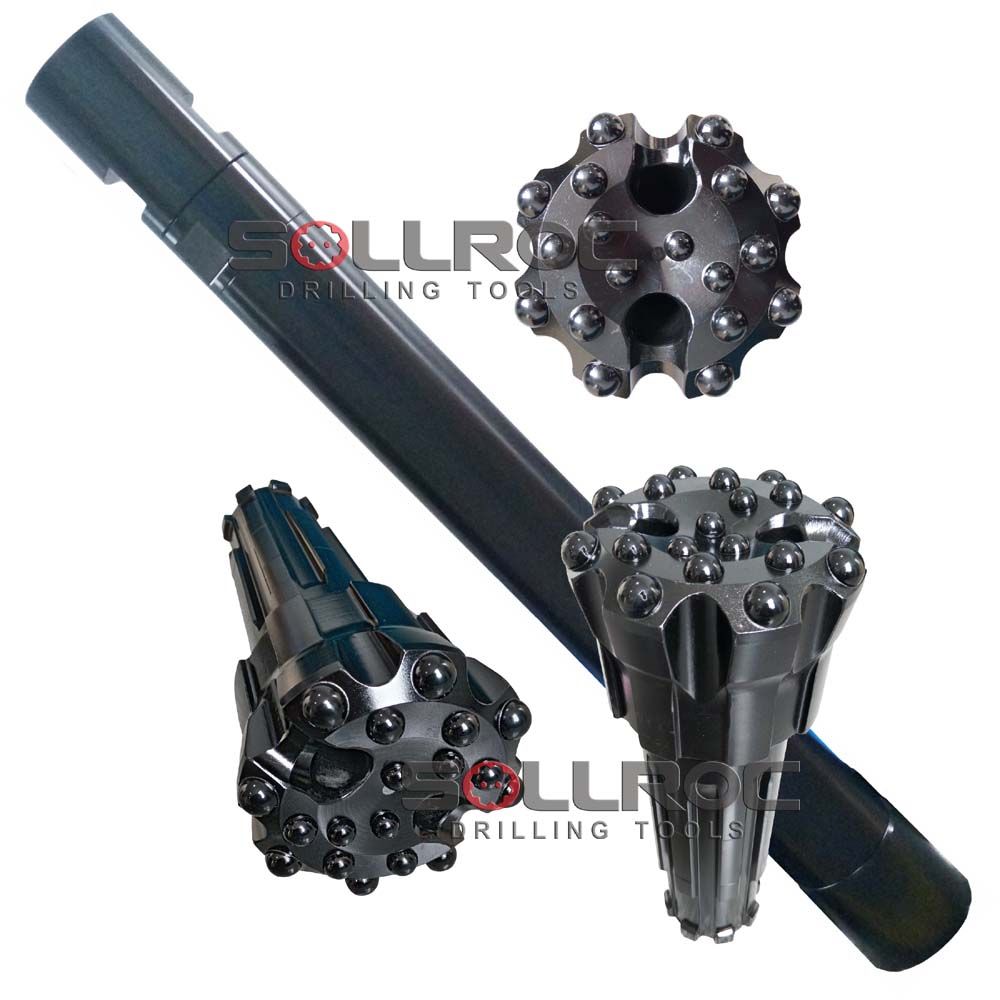

Product photos
Quality warranty:Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.Production time:Generally need 15-25 days
Transportation:
By air, By Express or By sea according to your requests.
Sollroc, with more 20 years of experience, is one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools. Our tools are widely used in different drilling applications including mining, quarrying, water well drilling, geotechnical industries and etc.
Sollroc is specialized in designing, manufacturing and developing equipments and accessories for standard models as well as the special needs of clients and provides them with the best suggestions and solutions. We practice strict and stringent quality control during manufacturing and adhered to recognized and approved quality control systems. Each of our products follows the quality requirements and procedures to ensure finished products are durable and superior up to standard.
We are dedicated to offering our customers only premium quality products and services to enable them to achieve the highest possible productivity for their business and projects. If you are looking for the best, fastest and most productive drilling tools in the world, Sollroc should be your best choice and preference.
