Prod Model: |
md-100 |
Application: |
Drill Heavy Duty Anchor Holes at Side Slope of Wat |
Hole Depth: |
60-120m |
Rod Diameter: |
110-250mm |
Product Description
Description:

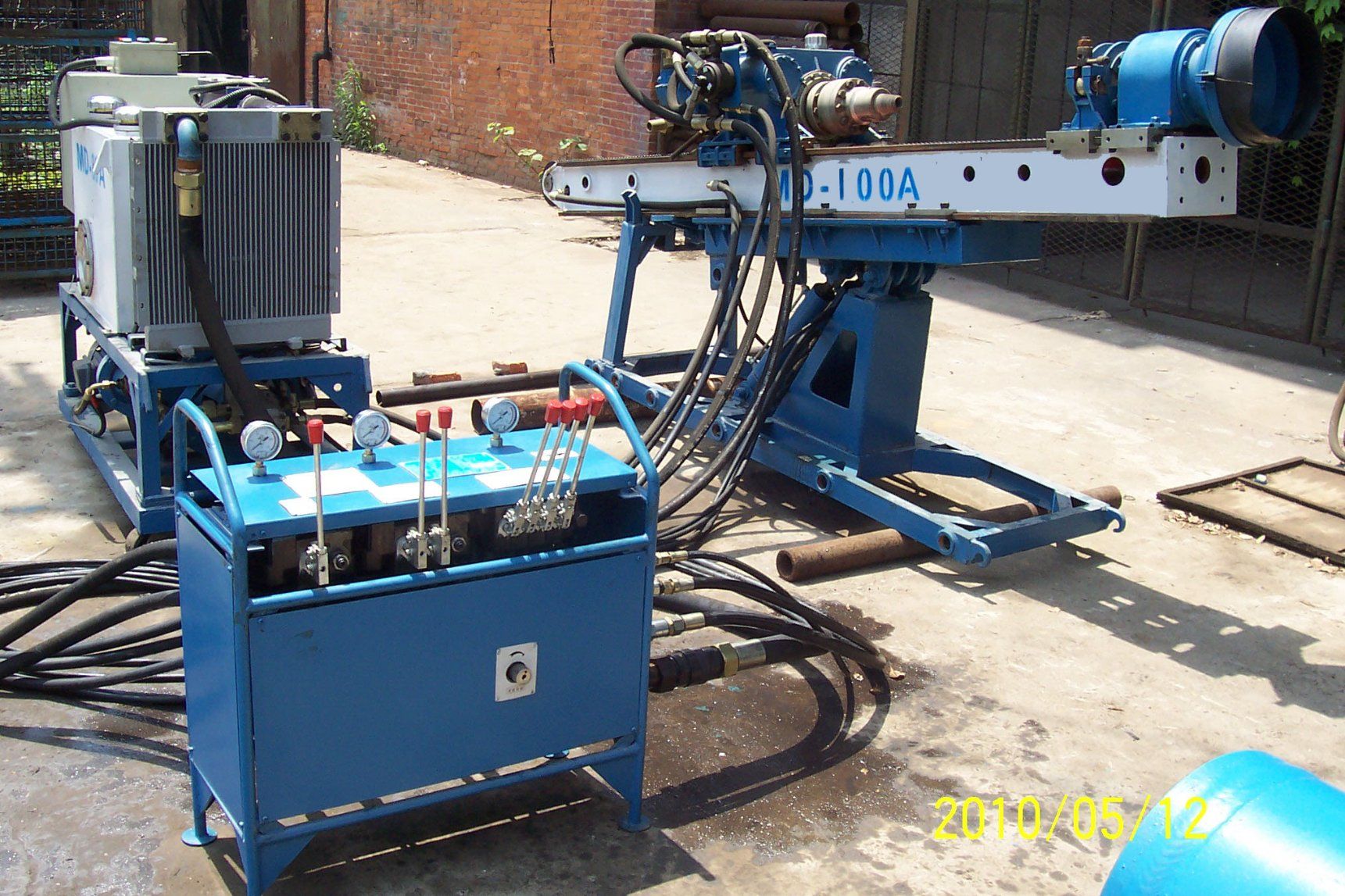

1. MD-100 drilling rig is a kind of full hydraulic power head drilling rig.
2. It is applied to drill heavy duty anchor holes at side slope of water power station, railway or highway projects, to drill drainage holes and It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc. In addition, it is also used to drill high-pressure jet grouting holes.
3.This drilling can be carried out with low manchine weights and in difficult and dangerous on site conditions.
4. The rig is suitable for various drilling methods such as carbide bit drilling, auger drilling, DTH hammer drilling, follow-up casing drilling, etc.
Specifications:
Hole depth | 60-120m |
Rod diameter | 110-250mm |
Hole angle(°) | -1-90° |
Output rotary speed of power head | 10,20,36,48,,75,100r/min |
|
Stroke of power head | 1800mm |
Output torque of power head | 5500N.m |
Lifting force of power head | 65KN |
Feeding force of power head | 33 kN |
Power | Electric motor: | 37+1.5+0.25 |
Weight | 3000KG |
Dimensions (L×W×H) | 3400×650×1500mm |
Applications:
Anchor holes at side slope of water power station, railway or highway projects, to drill drainage holes and It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc
It is also used to drill high-pressure jet grouting holes.
Competitive Advantage:
Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core- drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets
Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd. (brief name: Jiangsu XiTan ) was was founded in 1956 with a registered capital of 20 million and is a large-scale key enterprise in the industry of geological exploration field.
Our factory covers more than 60, 000 square meters. Equipped with more than 60 years professional manufacturing experience and professional production team as well as more than 200 excellent skillful workers, more than 20 experienced engineers and more than four hundred sophisticated equipments, the high quality drilling equipments will be manufactured.
Our company has advanced and scientific production technology and capacity as well as rapid innovation ability, so that our products account for a large market share in the domestic market. At the same time, our drilling rigs have been exported to Vietnam, Brunei, Iran, Britain, Nigeria and other countries and regions.
We have received the ISO9001-2000 quality system certification. We also obtain the science and technology progress award and second prize issued by the China National Light Industry Association.
Our company is located in Wuxi City. It is 2 km away from the railway station, convenient in traffic and beautiful in environment.
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
