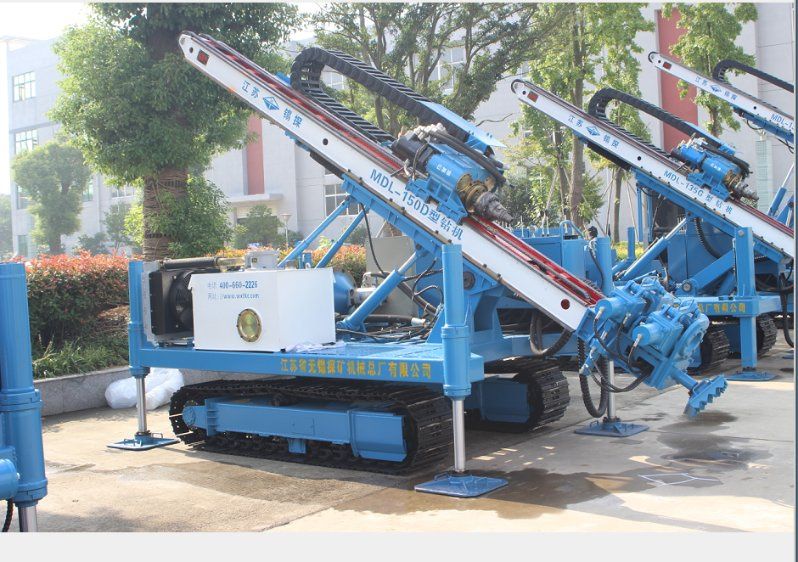

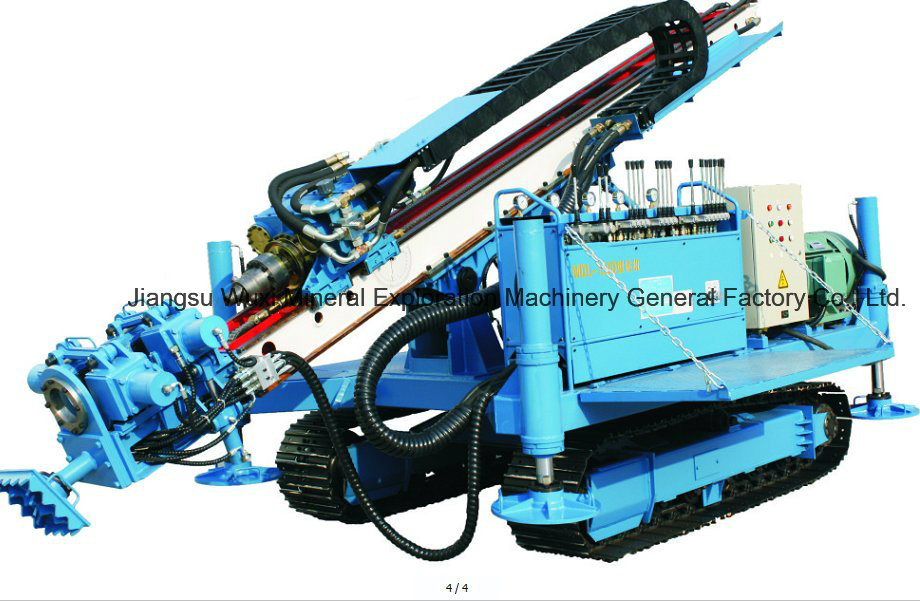

Mdl-150d Anchor Crawler Drilling Rig Drilling Machine Depth 170m Diameter 250mm.

Name: Mdl-150d Anchor Crawler Drilling Rig Drilling Machine Depth 170m Diameter 250mm.
Brand: tool-buy.com
SKU: 831645335
Availability: InStock
Rating: 4.7 (34 reviews)

Price:	US $ 35600-39500/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd.

Showroom Product Company Profile

Prod Model:	MDL-150D
Application:	Urban Subway, High-Rise Buildings, Airport, Groun
Hole Depth:	130-170m
Rod Diameter:	150-250mm

Product Description

Quick Detail:

1. This MDL-150D is a kind of full hydraulic power head anchor crawler drilling rig . Its drilling depth is 130-170m, and drilling diameter 150-250mm.
2. According to the customer's requirements, the torque and rotate speed can be adjusted to achieve best efficiency. The speed of this drill rig can achieve 170 circles every minute. It is increased by 20% compared with that kind of 135D.
3. The MDL-150D anchor crawler drilling rig can do single, double and triple jet grouting.
4. The MDL-150D anchor crawler drilling rig is just applied to the rock and broken layer construction.

Description:

1. This MDL-150D is a kind of full hydraulic power head anchor crawler drilling rig . Its drilling depth is 130-170m, and drilling diameter 150-250mm.
2. The crawler drill rig is mainly applied to urban subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring, jet grouting and dewatering.
3. In addition, this MDL-150D anchor crawler drilling rig is stable, efficient , and able to drill complex layers and deal with accidents.
4. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work..
5. The MDL-150D anchor crawler drilling rig is just applied to the rock and broken layer construction.

Applications:

1. Urban subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring.

2. Jet grouting and dewatering, blast hole,the anti-floating anchoring hole .

3. This engineering drill rig can be used for drilling geothermal hole and well.

4. It can be also used for pipe shed engineering.

Specifications:

Hole depth	130-170m
Hole diameter	150-250mm
Hole angle(°)	0-90°
Output rotary speed of power head	10/20/30/35/40/60//65/70/85/130/170r/min
Stroke of power head	3400mm
Output torque of power head	7500N.m
Stroke of slide frame	900mm
Lifting force of power head	70KN
Feeding force of power head	36kN
Power	Electric motor:	55+18.5KW
Weight	6500KG
Dimensions (L×W×H)	5400×2100×2000mm
