| Prod Model: |
PL-410X1000 |
| Medium Size Gap Bed Lathe Machine: |
Swing Over Bed 410mm, Length 1000, 1500mm. |
| Max.Swing Over Bed: |
410mm |
| Max.Swing Over Cross Slide: |
255mm |
| Center Height: |
580mm |
| Power Of Main Motor: |
2.2/3.3kw(Optional 3/5.5kw) |
| Spindle Bore: |
52mm |
| Distance Between Centers: |
1000/1500mm |
| Spindle Nose: |
D1-6 |
| Brand: |
Uni-Tech |
| Width Of Bed: |
250mm |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Processing Accessory: |
Metal |
| Tool Holder: |
4-Position Tool Post |
Product Description

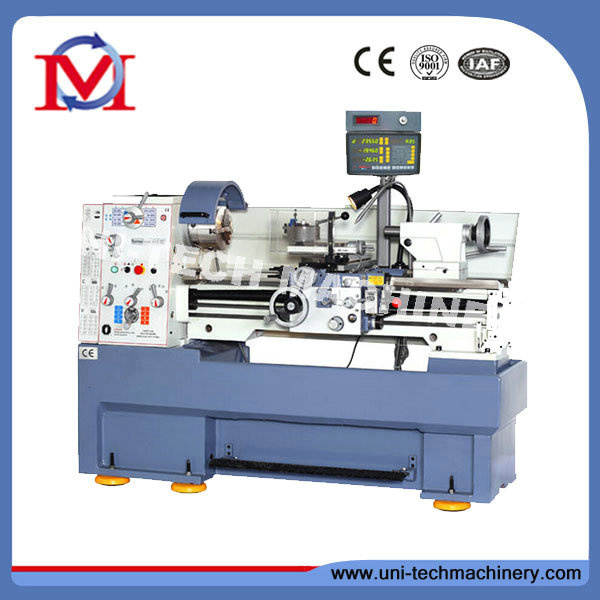

Medium Size Precision Gap Bed Lathe (PL-410X1000)
Main Features:
1)One piece cast iron stand.
2)Infinitely variable spindle speed.
3)1500mm D.B.C available.
4)Precision ground and hardened V-way bed.
5)Totally enclosed universal gearbox allows cutting of inch,metric,whitworth,modular and diametrical threads.
6)Headstock gears run in an oil bath and are hardened and precision ground for smooth,quiet and vibration free operation.
Specification:
| HIGH PRECISION &HEAVY DUTY INDUSTRIAL LATHE |
| Model | PL-410× 1000 | PL-410× 1500 |
| Max.swing over bed | Φ410mm(16") |
| Max.swing over cross slide | Φ255mm(10") |
| Max. swing over gap | Φ580mm(23") |
| Center height | Center height(8") |
| Distance between centers | 1000mm(40")/1500mm(60") |
| Width of bed | 250mm(10") |
| Max.section of tool | 20mm×20mm(3/4"×3/4") |
| Max.travel of cross slide | 210mm(8 1/2") |
| Max.travel of compound rese | 140mm(5 1/2") |
| Spindle bore | Φ52mm(2") |
| Spindle nose | D1-6 |
| Taper of spindle speed | M.T.#6 |
| Range of spindle speed | 16changes25-1800r/min |
| Leadscrew pitch | 4 T.P.I. |
| Range of metric longitudinal feeds range | 0.05-1.7mm/rev(17 Nos) |
| Range of inch longitudinal feeds | 0.002"-0.067"/rev (17 Nos) |
| Range of metric cross feeds | 0.025-0.85mm/rev (17 Nos) |
| Range of inch cross feeds | 0.001"-0.0335"/rev (17 Nos) |
| Range of metric threads | 0.2-14mm(NO. 39) |
| Range of inch threads | 2-72 T.P.I.(NO. 45) |
| Range of Diametrical pitch | 8-44D.P.(21Nos) |
| Range of module pitches | 0.3-3.5 M.P.(18Nos) |
| Dia. of tailstock sleeve | 50mm(2") |
| Travel of tailstock sleeve | 120mm(4 3/4") |
| Morse taper of tailstock sleeve | M.T.#4 |
| Power of main motor | 2.2/3.3kw(optional 3/5.5kw) |
| Power of coolant pump | 4P,3PH 90W |
| Overall diamension(L*W*H) | 1940mm×850mm×1320mm |
| Packing size(L*W*H) | 2070mm×940mm×1600mm |
| N.W/G.W | 1550kg/1760kg |
We want to show more detailed pictures of our PL-410X1000 CE Certificate Horizontal Gap Bed Turning Lathe Machine to you as following:
STANDARD ACCESSORIES
200mm Three Jaw Chuck and Adapter
320mm Four Jaw Chuck and Adapter
300mm Face Plates
Steady Rest
Follow Rest
Thread Chasing Dial
Mt/6/4 Sleeve and MT 4 Center
Oil Gun
One set of Wrenches
Operation Manual
SPECIAL ACCESSORIES
1.200mm Driving plate
2. Quick change Tool Post
3. Taper Turning Attachment
Our service:
We also would like to let you know our warranty about our machines.
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
