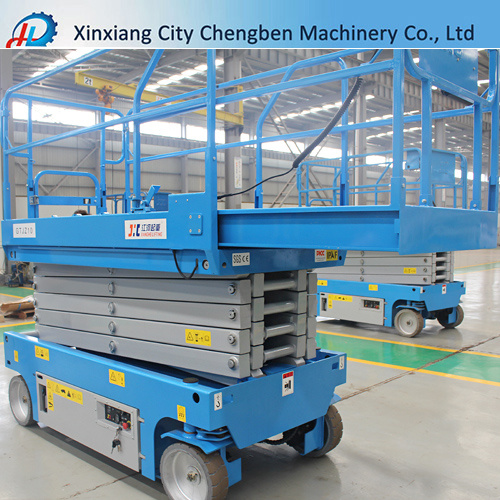

Mini Hydraulic Scissors Lift Electric Power Platform

Mini Hydraulic Scissors Lift Electric Power Platform
Price: US $ 5200-38800/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: GTJZ1010
Material: High Strength Manganese Steel
Platform: Antiskid Platform
Control Mode: Electric Box and Button
Tire: Non-Marking Tires
Color: Blue, Red, Ect
Usage: Hotel, Airport, Station, Dock, Ect
Capacity-Extension Deck: 113kg
Max Platform Heifht: 6m
Extension Deck Size: 0.9m
Max Gradeability: 25%
Carrying Capacity: Light Level
Driven Type: Hydraulic
Running Mode: Moving
Application: Widely Used
Feature: Energy Conservation

Product Description


mini hydraulic scissors lift electric power platform

The following is only a reference. We can design and make products according to the buyer's requirement.
ModelGTJZ06GTJZ08BGTJZ10AGTJZ10BGTJZ12GTJZ14
Working Height6.0m8.0m9.8m10.0m11.8m14m
Platform Height4.0m6.1m7.8m8.2m9.8m12m
Capacity270kg320kg320kg450kg450kg350kg
Platform dimension2.3*0.77m2.3*0.85m2.3*0.85m3.22*1.2m2.65*1.15m3.22*1.2m
Length1.88m2.3m2.3m2.45m2.56m2.55m
Height1.9m2.25m2.38m2.26m2.4m2.5m
Width0.77m0.85m0.85m1.2m1.15m1.2m
Weight1335kg2005kg2180kg2330kg1500kg3350kg
Grade ability25%25%25%25%25%25%

advantages diaplay
Our productsOthers' productsOur advantage
Hydraulic driveElectric driveStrengthen the step-less  speed change capacity,
 improve utilization of power
Minimum distance
 control
between chassis
and ground

No such functionWhen down the platform, minimum distance
 between chassisand ground can reach 100mm,
ensure the whole platform has strong trafficability;
when up the platform, distance between chassis
andground will be intelligentlycontrol to 20mm,
ensurechassis safe and stable during work
Emergency down
 system

Simple assembly,
 low reliability
High quality emergency brake, make the platform
 easily and smoothly downface emergency scene,
ensure workers' safety.
The tilt protection
system

Semi automatic,
mechanical
or no such function
 Intelligent design system, make the platform
 in a intelligent protection condition in face of bumpy
, the uneven or sloping ground, ensure the life
safety of operation personnel
Percentage
control
system
Traditional cable
transmission
Less cable limitation, easy for maintenance and
reduce energy loss.
Simple platform control
 panel
Traditional and
complex
control panel

Humanized operate panel providing easy, efficient
and sensitive operation experience
Charging protection
system

Ordinary charger

Intelligent charger, precise control of the whole
 process of charging current, voltage

Feature Explanation
Excellent mobility

Compact body can easily pass through single channel and double channel , use non-marking solid tire Special locations
Special LocationsFeature of low noise is perfect suitable for the noise sensitive environment , such as office buildings , shopping malls , hotels , schools and so on.
Compact and flexibleMost models are equipped with zero-radius turning system , can be easily and flexibly operated in crowed spaces , such as cramped buildings , elevator and narrow corridor , etc .Up-down , left-right , forward-backward, turning , movements can be easily operated by one person
Easy maintainingRandom fault diagnosis system can immediately detect the faults , can be repay type battery trays make it easy to repair the power generator.
The min clearance control of  chassisWhen lowered the platform, chassis can reach 100 mm minimum clearance from the ground,to ensure that the platform as a whole has a strong through, when the platform rises chassis ground decreased to 20 mm minimum clearance automatically by the intelligent control, to ensure the safety of the chassis while working stability.
Emergency descent systemHigh quality and high precision pressure relief valve cylinder, under a state of emergency (such as electricity) can make the platform steady fall easily, to ensure the safety of the staff of life.
Proportion of intelligent controlReduce the wiring harness, reduce energy losses, make smooth control accuracy.
Slope protection systemIntelligent design of the machine, the platform in potholes, the tilt or uneven ground in intelligent protection condition, ensure the life safety of the operator.
Simple platform control equipmentHuman nature of easy to use control panel, provide efficient and sensitive operation experience.

security assurance
1.  Control voltage is DC24V.Keeping working person safe.
2.  Electrical control box is water-proof design.
3.  Installing Emergency button,Can keeping working person safe.
4.  Self-locking funtion will work when electricity is suddenly cut off.

Detail display
1.self-propelled hydraulic powered.
2.solid non-marking tires to suit tough outdoor working conditions.
3.manual platform lowering valve in case of machine breaking down.
4.on-board diagnostic system to save time and manpower maintenan
5.pothole guards and tilt level sensor to guarantee operators' safety.
6.emergency stop to avoid potential danger.
7.compact body and excellent mobility.

Our delivery is Efficient , Reliable ,and Prompt!
Packaging Detail:

.Electric parts are packed by strong plywood crate,
.others packaged in polythene woven cloth.
.Or according to customer's requiment
Delivery Detail:· If the size is suitable for container ship, usually by container;

· If the size is too big, usually by bulk ship or by container after t

Any question pls feel free to contact Ms. Julia at any time. Thanks!
Mobile: +86-15560236078
Office No.: +86 373 5895178
Web: www.crane-lifts.com / www.cn-cbjx.com

To satisfy your needs is always our first job.Since your first purchase,training,parts,maintenance and repair everything are included
1.Presale service:we could be your personal service team,call us any time you facing problem.
2.In sale service:Professional guidance from our genius enjineer will let you know more about your equipment,both machine control and inside  mechanism.
3.After-sale service:One year warranty service of whole machine and lifetime maintenance.our service team will provide you full service,inspection,repair,maintainance to improve performan
Xinxiang City Chengben Machinery Co., Ltd is a professional manufacturer and trading company, specializing in all kinds of transferring and lifting equipment which was founded in 1985. We serve our clients with professional skills, high responsibility, rigorous working attitude, cohesive teamwork and have ability to provide a complete set of advanced lifting projects. Our clients include manufacturing and process industries, shipyards, ports, construction factory and so on. Regardless of your transferring and lifting needs, our company is committed to provide you with lifting equipment and services that increase the effectiveness and add value to your business. Our company is having technology and design, which is a worldwide reputed company at domestic & overseas. Our company also called as the "Birth Place of Chinese Cranes".

Our company focuses more on innovation and development about products in the future and accumulates more rich experiences and support in production from our co-partners. Assimilating and seeking the most developed trends and advantages, we design and develop series of high, new and intelligent products. We have many advantages to develop faster than our competitors in the world.

Our products mainly includes material transfer cart, truck crane, lifting table, crane, and other spare part, etc. The product gets CE, SASO, SGS, ISO certificate and other 8 national patent, our products have been exported to more than 50 countries and regions, such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.

In order to make our company a famous, professional manufacturing, trading and service team in this field, we are independent and creative to make full use of high technology. We look forward to having good cooperation and communications with friends and partners from all over the world!
