| Prod Model: |
HGS-B |
| Motor: |
100% Copper Core Motor |
| Safety Device: |
Handle Switch with Emergency Stop Button |
| Hook: |
Forged Alloy Steel Hook with Latch |
| Height Limted: |
Included |
| Warranty: |
One Year |
| Application: |
Small Crane |
| Power Source: |
Electric |
| Sling Type: |
Wire Rope |
| Certification: |
SGS |
| Lift Speed: |
10m/Min |
| Maximum Lifting Height: |
30m |
| Chain Falls: |
Wire Rope |
| Color: |
Orange ,Red or as Your Requirement |
Product Description

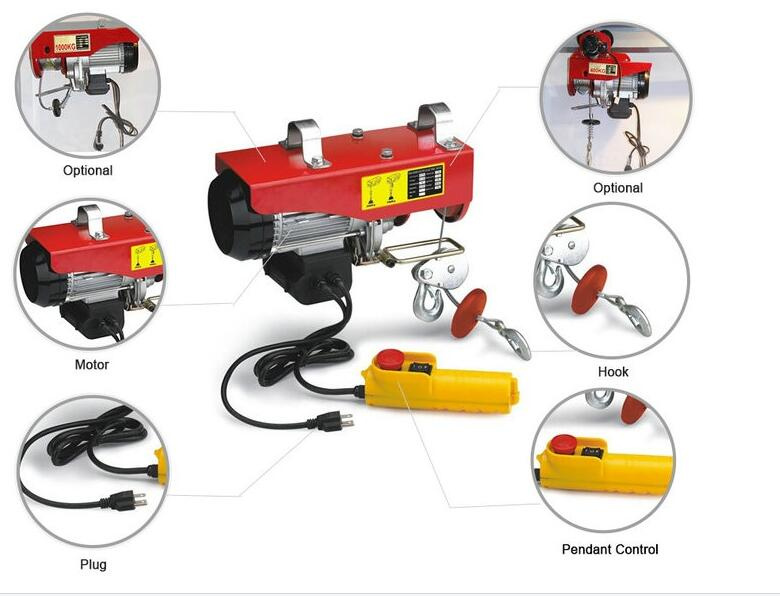

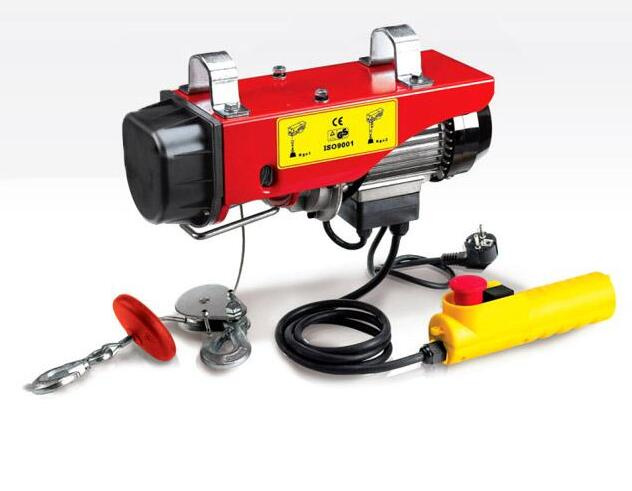

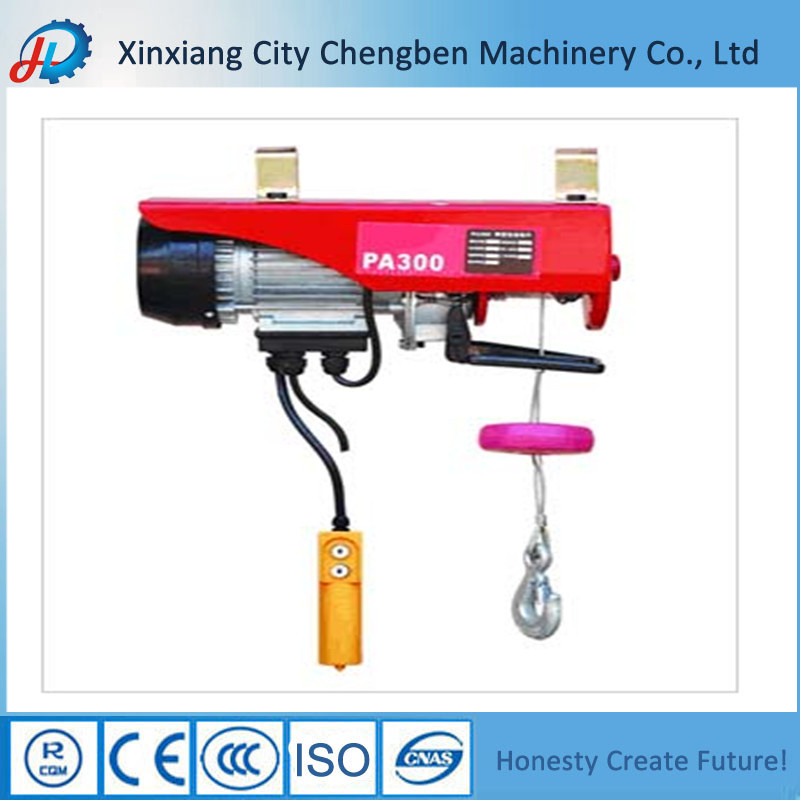

PA Electric Wire Rope Hoist Mini Power Winch
Production Show
Key Advantage :
1.Compact structure
2.Small volume ,light weight
3.Easy to operate
4.High commonality of component and parts
Main Features:
1.Compact and high efficient motor with heat protection device
2.Use Copper motor,big power and different voltage are available
3.Push button 24V low voltage to guarantee safety and limit switch system
4.Sensitive break system .Friction disk without asbestos
5.Choose precise process of high tensile helix gear working system to keep lower noise.
6.IP54 protection grade on electric hoist for prevent water and dust.
7.Fire stopper:Adjustable mechanical memory structure,high sensitivity
8.Weight limiting stopper:preventing hook clashing the top, sensitive reaction. Safe and durable, easy
to install and debug
9.Overload limiter:Preset related data according working condition,show accurate weight;value clearly .Modular, low power design

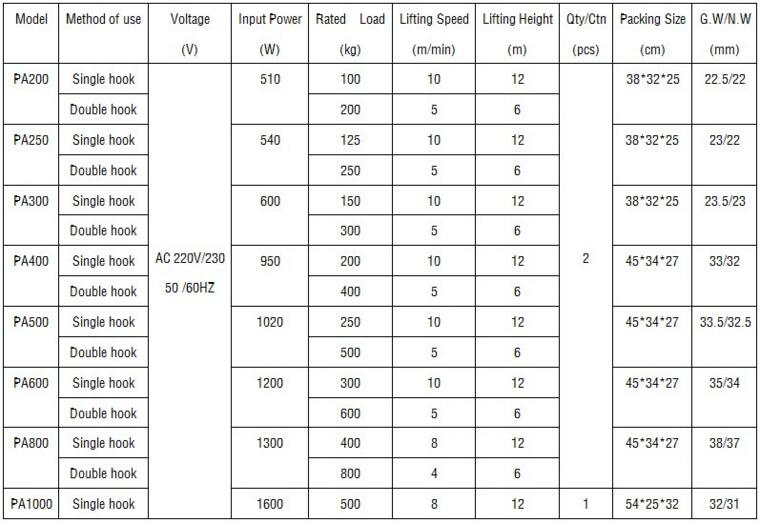

Technical Parameter :
Configuration of PA wire rope mini electric hoist :

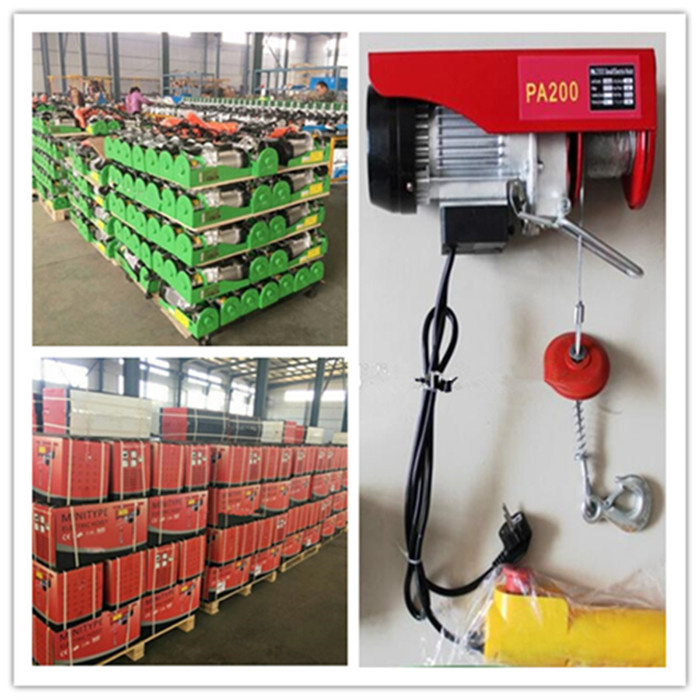

Workshop show :
FAQ::
