Mining Exploration Diamond Core Bits (BQ NQ HQ PQ)

Name: Mining Exploration Diamond Core Bits (BQ NQ HQ PQ)
Brand: tool-buy.com
SKU: 730932685
Availability: InStock
Rating: 4.8 (40 reviews)

Price:	US $ 50-200/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Changsha Miracleland Import & Export Co., Ltd.

Showroom Product Company Profile

Prod Model:	AQ BQ NQ HQ PQ NQ2 BQ3 NQ3 HQ3 PQ3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shape:	Round
Manufacturing Arts:	Sinter
Standard:	Boart Longyear Standard
Use:	Mining Exploration

Product Description

Changsha Miracleland Import & Export Co., Ltd is a professional and credible international trade company. We are specialized in manufacturing and exporting drilling tools and equipment for mining exploration, soil investigation, water well construction, and etc.

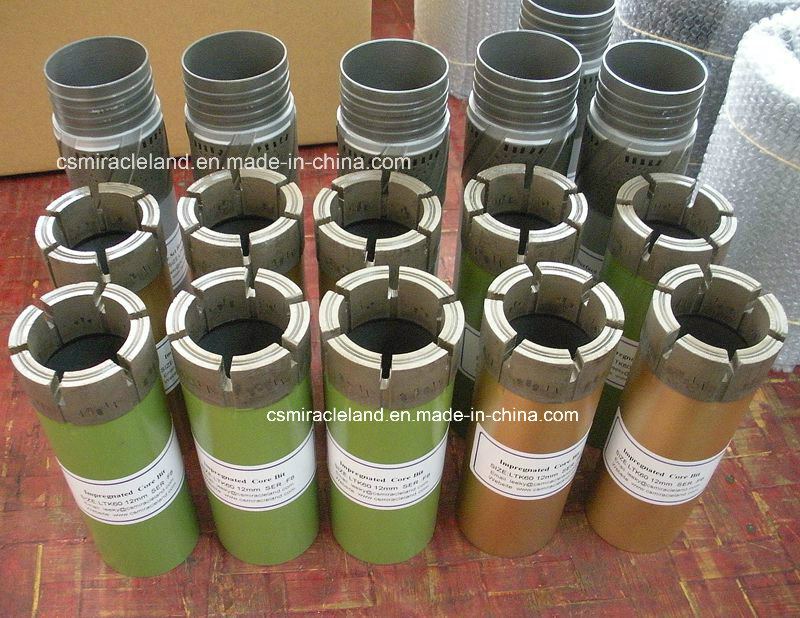

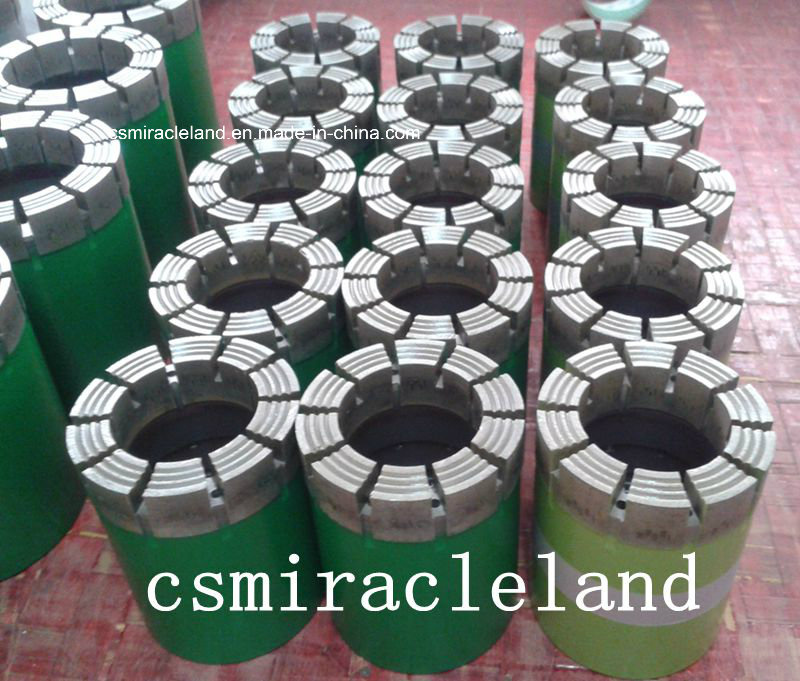

Impregnated bits can penetrate a broad range of formations from the softest to the hardest rocks. They are manufactured with very small, high quality synthetic diamonds mixed evenly through a tungsten carbide matrix. During drilling the matrix wears away evenly resulting in continuous exposure of new, sharp diamond points throughout the life of the bit.
All impregnated bits have T.C. and diamond gauge protection. The optimum diamond size, concentration and matrix composition varies according to the hardness and abrasiveness of the rock formations to be drilled.

We had been making great efforts to develop various drilling tools to meet the different needs for our customers. The drilling tools including core bits, diamond core bits, non-coring bits, reaming shells, casing shoes & casing bits, core barrels, overshots, drill rods, casing tubes, SPT tools and other drilling tools.

If you need any further information about our any type drilling tools, please feel free to contact with us, we would be quite pleased to show all the details you asked for.

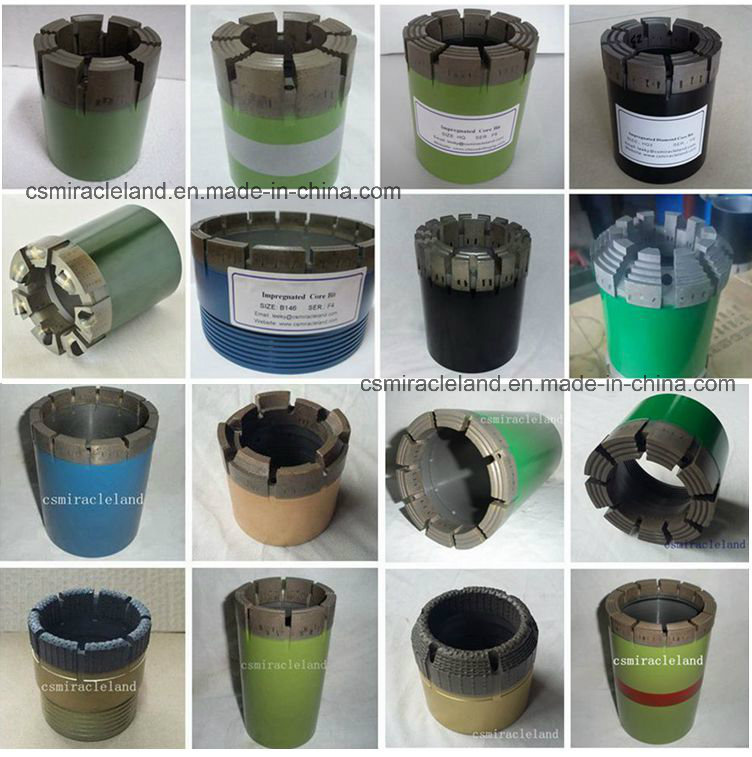

A-Gauge Core Bits: AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48

B-Gauge Core Bits: BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BWM, BWT, LTK60, TBW

N-Gauge Core Bits: NQ, NQ-RSG, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW,

H-Gauge Core Bits: HQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT

P-Gauge Core Bits: PQ, PQ3, PWF-Long, PWF-Short

S-Gague Core Bits: SWF-Long, SWF-Short

U-Gague Core Bits: UWF-Long, UWF-Short

Z-Gauge Core Bits: ZWF-Long, ZWF-Short

T, TT, T2&TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-66, T2-76, T2-76Coreline, T2-86, T2-86Coreline, T2-101, T2-101Coreline

T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146

T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116,T6S-131, T6S-146

B Series(IS03552-1)Metric Core Bits: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146

Dimensions of Core Bits:

A-Gauge Core Bits
Size	Outside diameter		Inside diameter
Size	inch	mm	inch	mm
AQ	1.880/1.870	47.75/47.50	1.607/1.057	27.10/26.85
AQ-RSG	1.895/1.885	48.13/47.88	1.067/1.057	27.10/26.85
AWG,AX	1.880/1.870	47.75/47.50	1.190/1.180	30.23/29.97
AWM	1.880/1.870	47.75/47.50	1.190/1.180	30.23/29.97
AWT	1.880/1.870	47.75/47.50	1.286/1.276	32.66/32.41
LTK48	1.880/1.870	47.75/47.50	1.394/1.384	35.40/35.15
B-Gauge Core Bits
BQ	2.350/2.340	59.69/59.44	1.438/1.428	36.52/36.27
BQ-RSG	2.365/2.355	60.77/59.82	1.438/1.428	36.52/36.27
BQ-2.400	2.045/2.395	61.09/60.83	1.438/1.428	36.52/36.27
BQ3	2.350/2.340	59.69/59.44	1.325/1.315	33.65/33.40
BWG,BX	2.350/2.340	59.69/59.44	1.660/1.650	42.16/41.91
BWM	2.350/2.340	59.69/59.44	1.660/1.650	42.16/41.91
BWT	2.350/2.340	59.69/59.44	1.755/1.745	44.58/44.32
LTK60	2.350/2.340	59.69/59.44	1.742/1.732	44.25/44.00
TBW	2.350/2.340	59.69/59.44	1.785/1.775	45.34/45.09
N-Gauge Core Bits
NQ	2.970/2.960	75.44/75.19	1.880/1.870	47.75/47.50
NQ-RSG	2.985/2.975	75.82/75.57	1.880/1.870	47.75/47.50
NQ-3.032	3.037/3.027	77.14/76.89	1.880/1.870	47.75/47.50
NQ2	2.970/2.960	75.44/75.19	2.000/1.990	50.80/50.55
NQ2-RSG	2.985/2.975	75.82/75.57	2.000/1.990	50.80/50.55
NQ3,NWLTT	2.970/2.960	75.44/75.19	1.780/1.770	45.21/44.96
NQ3-RSG	2.985/2.975	75.82/75.57	1.780/1.770	45.21/44.96
NQ3-3.032	3.037/3.027	77.14/76.89	1.780/1.770	45.21/44.96
LMLC	2.970/2.960	75.44/75.19	2.052/2.042	52.12/51.87
NWG, NX	2.970/2.960	75.44/75.19	2.160/2.150	54.86/54.61
NWM	2.970/2.960	75.44/75.19	2.160/2.150	54.86/54.61
NWT	2.970/2.960	75.44/75.19	2.318/2.308	58.87/58.62
TNW	2.970/2.960	75.44/75.19	2.394/2.384	60.80/60.55
H-Gauge Core Bits
HQ	3.770/3.755	95.76/95.38	2.505/2.495	63.63/63.38
HQ-RSG	3.790/3.755	96.27/95.89	2.505/2.495	63.63/63.38
HQ-3.830	3.840/3.825	97.54/97.16	2.505/2.495	63.63/63.38
HQ-3.895	3.897/3.882	98.98/98.60	2.505/2.495	63.63/63.38
HQ3, WLHTT	3.770/3.755	95.76/95.38	2.411/2.401	61.24/60.99
HQ3-RSG	3.790/3.755	96.27/95.89	2.411/2.401	61.24/60.99
HQ3-3.830	3.840/3.825	97.54/97.16	2.411/2.401	61.24/60.99
HQ3-3.895	3.897/3.882	98.98/98.60	2.411/2.401	61.24/60.99
HMLC	3.897/3.882	98.98/98.60	2.505/2.495	63.63/63.38
HWF-Long	3.912/3.897	99.36/98.98	3.005/2.995	76.33/76.08
HWF-Short	3.897/3.882	98.98/98.60	3.005/2.995	76.33/76.08
HWG, HX	3.897/3.882	98.98/98.60	3.005/2.995	76.33/76.08
HWM	3.897/3.882	98.98/98.60	3.005/2.995	76.33/76.08
HWT	3.897/3.882	98.98/98.60	3.192/3.182	81.08/8082
P-Gauge Core Bits
PQ	4.815/4.795	122.30/121.80	3.350/3.340	85.09/84.84
PQ3	4.815/4.795	122.30/121.80	3.275/3.265	83.18/82.93
PWF-Long	4.755/4.740	120.78/120.40	3.635/3.620	92.33/91.95
PWF-Short	4.735/4.715	120.27/119.76	3.635/3.620	92.33/91.95
S-Gauge Core Bits
SWF-Long	5.755/5.740	146.18/145.80	4.447/4.432	112.95/112.57
SWF-Short	5.735/5.715	145.67/145.16	4.447/4.432	112.95/112.57
U-Gauge Core Bits
UWF-Long	6.880/6.860	174.75/174.24	5.515/5.495	140.08/139.57
UWF-Short	6.855/6.825	174.12/173.36	5.515/5.495	140.08/139.57
Z-Gauge Core Bits
ZWF-Long	7.880/7.860	200.15/199.64	6.515/6.495	165.48/164.97
ZWF-Short	7.855/7.825	199.52/198.76	6.515/6.495	165.48/164.97
T, TT, T2 & TB Series Metric Core Bits
T36	1.422/1.412	36.12/35.87	0.859/0.849	21.82/21.57
TT46	1.818/1.808	46.18/45.92	1.394/1.384	35.40/35.15
T2-46	1.818/1.808	46.18/45.92	1.253/1.243	31.82/31.57
TB56	2.220	56.30	1.640	41.70
TT56	2.210/2.200	56.13/55.88	1.788/1.778	45.41/45.16
T2-56	2.210/2.200	56.13/55.88	1.647/1.637	41.83/41.58
T2-66	2.603/2.593	66.12/65.87	2.040/2.030	51.81/51.56
T2-76	2.997/2.987	76.12/75.87	2.434/2.424	61.82/61.57
T2-76 Coreline	2.997/2.987	76.12/75.87	2.288/2.278	58.12/57.87
T2-86	3.391/3.381	86.13/85.88	2.828/2.818	71.83/71.58
T2-86 Coreline	3.391/3.381	86.13/85.88	2.682/2.672	68.13/67.88
T2-101	3.981/3.971	101.12/100.87	3.300/3.290	83.82/83.57
T2-101 Coreline	3.971/3.971	101.12/100.87	3.155/3.145	80.13/79.88
T6 Series Metric Core Bits
T6-76	2.997/2.987	76.12/75.87	2.249/2.239	57.12/56.87
T6-86	3.391/3.381	86.13/85.88	2.643/2.633	67.13/66.88
T6-101	3.981/3.971	101.12/100.87	3.115/3.105	79.12/78.87
T6-116	4.575/4.560	116.20/115.82	3.667/3.657	93.14/92.89
T6-131	5.165/5.150	131.19/130.81	4.257/4.247	108.13/107.88
T6-146	5.755/5.740	146.18/145.8	4.847/4.837	123.11/122.86
T6S Series Metric Core Bits
T6S-76	3.009/2.999	76.43/76.18	1.883/1.873	47.83/47.58
T6S-86	3.403/3.393	86.43/86.18	2.277/2.267	57.83/57.58
T6S-101	3.993/3.983	101.43/101.18	2.828/2.818	71.83/71.58
T6S-116	4.586/4.571	116.48/116.10	3.379/3.369	85.83/85.58
T6S-131	5.177/5.162	131.48/131.10	3.970/3.960	100.83/100.58
T6S-146	5.767/5.752	146.48/146.10	4.560/4.550	115.83/115.58
B Series (ISO3552-1) Metric Core Bits
B36	1.422/1.412	36.12/35.87	0.859/0.849	21.82/21.57
B46	1.818/1.808	46.18/45.92	1.253/1.243	31.82/31.57
B56	2.210/2.200	56.13/55.88	1.647/1.637	41.83/41.58
B66	2.603/2.593	66.12/65.87	2.040/2.030	51.81/51.56
B76	2.997/2.987	76.12/75.87	2.434/2.424	61.82/61.57
B86	3.391/3.381	86.13/85.88	2.828/2.818	71.83/71.58
B101	3.981/3.971	101.12/100.87	3.418/3.408	86.82/86.57
B116	4.575/4.560	116.20/115.82	4.009/3.999	101.83/101.58
B131	5.165/5.150	131.19/130.81	4.599/4.589	116.82/116.57
B146	5.755/5.740	146.18/145.80	5.190/5.180	131.82/131.57
