Prod Model: |
MJ45Y |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Guarantee: |
12 Month |
Delivery: |
30 Days |
Type: |
Table Panel Saw |
Layout: |
Horizontal |
Automatic Grade: |
Semiautomatic |
Precision: |
Precision |
Certification: |
ISO |

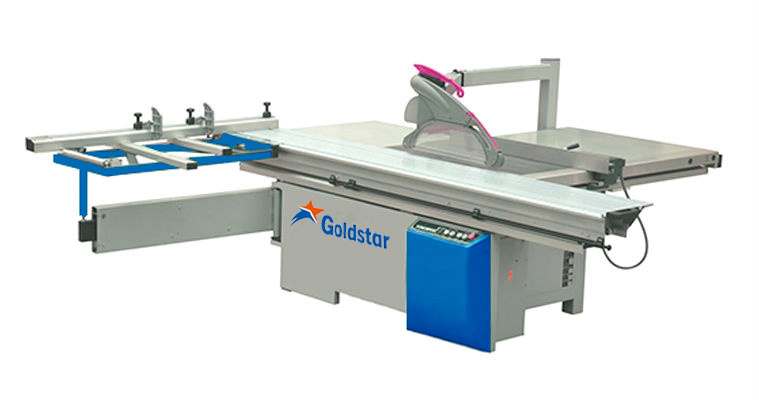

Product Description
1).Apply to processing all kinds of density boards, shaving boards, wood-Based Panels , ABS Panels, PVC Panels , Organic glass plates and solid wood and others with wood structure and similar hardness.

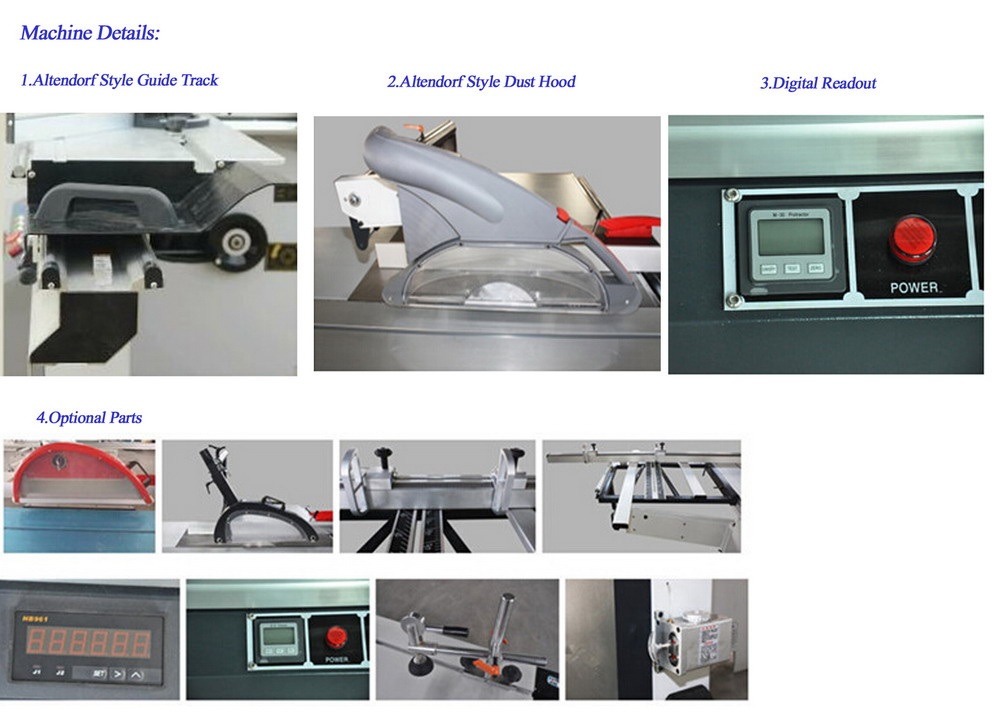

2).Movable table Guide Track is plating chromium steel balls structure, exact and durable
3).Made of high-strength extruded aluminum alloy , movable table is high in strength and won't bend.
4).With oxidation treatment , movable table surface is beautiful and hardwearing.
Technical Feature
Dimensions sliding table | 3200×415mm |
Gross Cut Capacity | 3200mm |
Width Cut between saw blade and Rip Fence | 1250mm |
Main Saw blade φ | φ 300mm x φ30mm |
Tilling saw blade | 0-45° |
Speed of main saw blade | 4000/6000rpm |
Main motor | 4kw(5.5KW) |
coring saw blade | 120mm x 20mm |
Speed of scoring saw blade | 8000r/min |
Scoring Motor | 5.5kw |
Max sawing thickness φ300 | 75mm |
Gross weight | 1100kg |
Overall dimensions | 3250 ×3150×900mm |
