Mold Parts Shoulder Sleeve and Extensions Sleeves Mould

Prod Model:	XZA06-AISI 1215
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Heat Treatment:	Vacuum or Nitrided
Color:	Original
Tolerance:	Within 0.002mm or as Clients' Requests
Roughness:	as Requested
Hardness:	Depend on Raw Material
Shipment:	by Air or by Sea
Quotation:	Within 24 Hours
Samples:	Free
Packaging:	Inner: Platic Bag; Outter: Carton Box
Compatible:	All Standard Like Hasco Misumi etc
Shaping Mode:	Injection Mould
Application:	Hardware
Installation:	Fixed
Process Combination Type:	Plastic Injection Mold Components
Design Software:	Pdf, CAD, PRO-E, Ug, Other Drawing Formats
Certification:	ISO9001:2008

Product Description

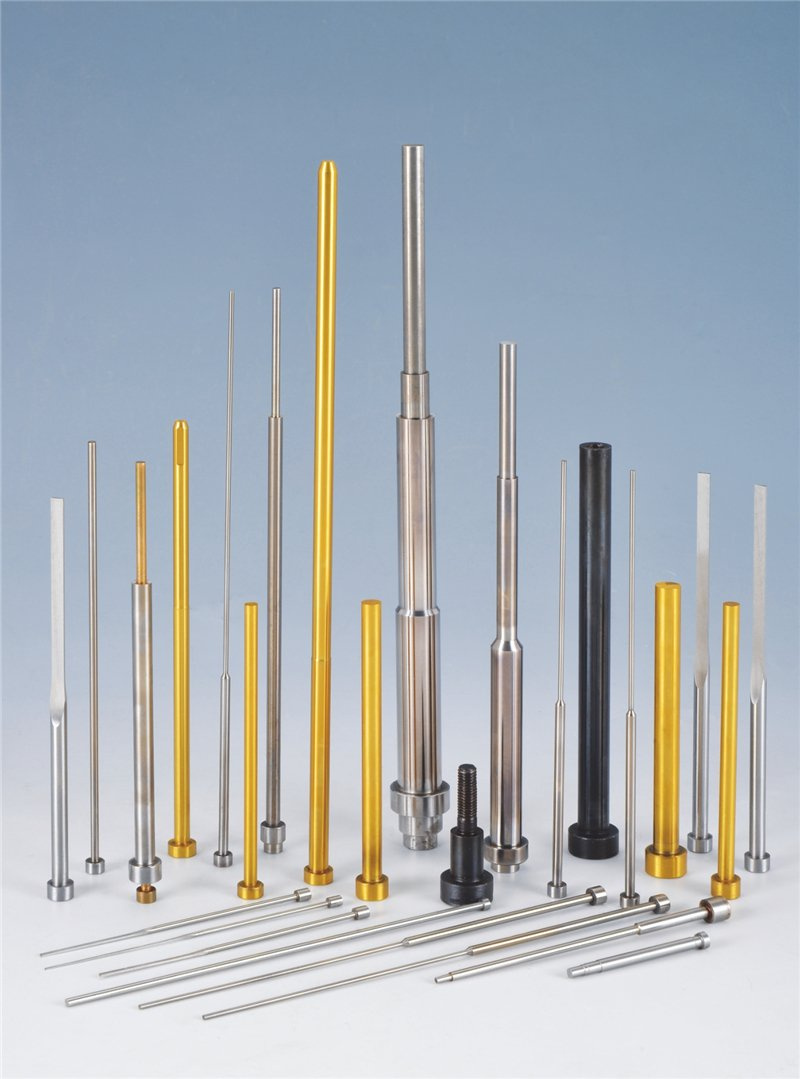

Product's name: Shoulder Ejector Sleeve
Raw Matarial: SKD61, 1.2344, H13, FDAC
Heatment: Nitrided
Hardness: Inner HRC43+/-2
           Surface HRC60-70
Packing: 1) Double layers plastic bag package
                 2) Sponge
                 3) Thick cartons box
                 4) in wooden case




1.Factory information:

Company: Dong guan city Xiang zhen mold parts Co.,Ltd

Website: www.nsmmold.com

Location: Dong guan,China (close to Hong Kong,Shen Zhen,Guang Zhou)

Software: PDF,Auto-CAD,Pro-E,UG etc are available

Employee: 100-200

Manufacture in: High precision mold parts/Hot-runner and related parts/CNC/EDM parts/Grinding parts/Customized mold parts

Export Markets: Global

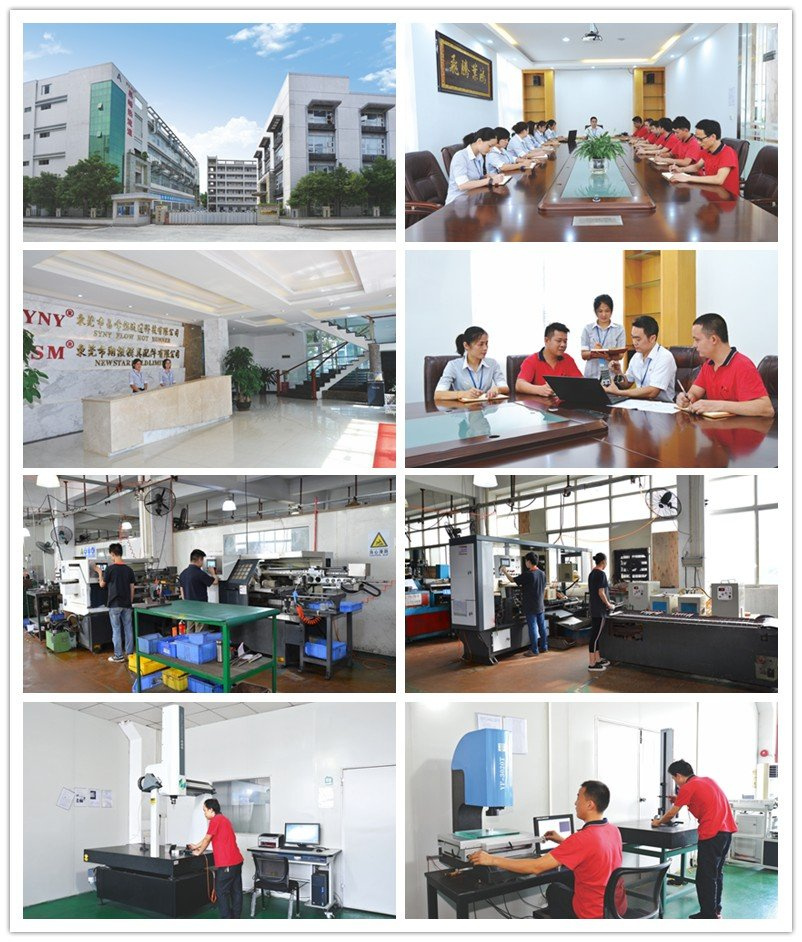

2.Equipment and Inspection measurement:

Description	Machine type name	Origin from and brand	Quantity	Precision level(mm)
Processing equipment	CNC Processing	Taiwan	3	±0.01
	CNC Lathe	Japan	2	±0.003
	WEDM (Low speed wire cutting)	Japan	2	±0.005 ±0.002
	WEDM (high-speed wire cutting)	China	2	±0.005 ±0.01
	Flood grinder	China	1	±0.002
	EDM	Taiwan	2	±0.005
	ID Grinder	Taiwan	3	±0.001
	Depth drill	Taiwan	3	±0.02
	Automatic grinder	Taiwan	2	±0.001
	Centerless Grinder	Taiwan	12	±0.001
	Surface Grinder	Japan	2	±0.001
	Surface Grinder	Taiwan	5	±0.001
	Vertical hydraulic Heading Machine	China	2
	Semi-automatic Heading Machine	Taiwan	3
	Manual Heading Machine	Taiwan	2
	Automatic forging machine	Taiwan	1
	Bench grinders	Taiwan	2
	Punch Grinder	Taiwan	6	±0.002
	Lathe	China	4	±0.01
	32 type Lathe	Taiwan	4
	25 type Lathe	Taiwan	3	±0.01
	15 type Lathe	Taiwan	10	±0.01
	Milling Machine	Taiwan	6	±0.01
	Liquid nitriding furnace	China	1
	Tempering furnace	China	2
	Oxidation furnace	China	1
Inspection equipment	Rockwell hardness	Shanghai	1	±0.5°
	Height gage	Japan	2	0.001mm
	Microscope	Shanghai	2	0.0001mm
	Three-dimensional	Germany(Zeiss)	1	±0.002
	2.5 dimension	Taiwan	1	±0.001
	Digital Projector	Taiwan	1	±0.002
	Vickers hardness tester	Taiwan	1
	Concentricity device	Taiwan	2	±0.001
	Digital Micrometer calipers	Taiwan	Multiple	Conventional
	slide calliper rule	Taiwan	Multiple	Conventional
	Height Gauge	Taiwan	1	Conventional
	Roughometer	Japan	1	Conventional

3.Precision parts information:

Accuracy for EDM	Clearance angle	R0.03mm
	Surface Roughness	Ra0.05mm
Accuracy for Grinding	Clearance angle	R0.02mm
	Shape tolerence	±0.001mm
	Accuracy for surface	Ra0.05mm
	Minimum thickness	0.1mm
	Minimum groove	Wide 0.01mm;Depth 0.25mm
Material	Japan:SKD61/SKD11/SKH51/SUJ2
	Germany:1.2343/1.2344 or as Customer's request.
Size	Standard as DME/Hasco/Punch etc or Customized
MOQ	1Pcs/Type
Price	EXW/FOB/CNF/CIF
Payment	T/T or %advance-%against shippment

4.Why choose us:
*-Quality: Qualified Raw Material
          Reliable Machines
          Mature process
          Skillful employees
          Strict Quality Control
*-Price: Competitive price /Reasonable margin
*-Service: Any inquiries replied within 24 hours
                  Quick Delivery
                  Quick Response (7/7)
                  Warranty: Depend on product type.
                  Stardand parts: 500K---2M cycles

5. How to order:
(1) Send us drawing or standard code & size
(2) We quote you within 1 day (except Saturday and Sunday)
(3) Get agreement with price and sign PO or Contract
(4) Make payment in advance
(5) If sample required,we will make sample first

6. FQA:
(1) Q:Where is your factory located? How can I vist there?
    A:Our factory is located in A # Building, Ju Long Industrial Park, Tian Xin Village, Huang Jiang Town,Dong Guan,
China. All our clients from home or abroad are warmly welcomed to visit us at any time.
(2) Q:Are you a factory or a trading company?
    A:We are factory with 2 plants, and our company have engaged in production and foreign trade sales for so many years.
(3) Q:Before shipment how to make sure the produce quality?
    A:You can come to our factory or let the third party for inspection, if not we will be as your inspection worker.
We can supply you the inspection reports.
(4) Q:Do you provide free sample?
    A:Yes,we could offer some samples for free, but freight collect.
(5) Q:How do I know about the delivery?
    A:We will inform you of the tracking number once we get it from shipping agent. Also we will keep updating the
latest shipping information for you.
(6) Q:What will you do after sales?
    A:We have after-sales servise, when you received our products,we will follow up and await your feedback.
Any question related to our ejector pins,our experienced engineers are ready to help.
