Motor Driven Cable Reel for Coiling Power Cable
| Price: |
US $ 1500-5000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
JDC60-5 |
| Color: |
Blue |
| Power Type: |
Moment Motor Powered |
| Installation Pattern: |
Horizontal Coiling (Reel Movable) |
| Number Of Reel Groove: |
Five |
| Coil Length Of Cable: |
60m |
| Matched Cable Diameter: |
40mm |
| Max.Torque: |
40nm |
| Mass: |
925kg |
| Reel Types: |
Spring or Motor Optional |
| Application: |
Supply Power for Mobile Apparatus |
| Type: |
Module Connecting Machine |
| Certification: |
SGS |
| Customized: |
Customized |
| Condition: |
New |
| Feature: |
Moistureproof |
Product Description
Description:
Motor-driven cable reel drum is designed for coiling or releasing the large specification and long distance power supply cable, which can be in synchronous operation with the mobile electrical apparatus to coil or release the cables. In view of its power patterns which is divided into torque motor driven type and three phase asynchronous motor driven type. There are so many motor-driven reel models available which can coil or release the power supply cables under 500V and high voltage cables for 6kv and 10kv.
Features:
1. For different types power cable
2. Its driven by the electric motor
3. The cable reel is usually fixed on the mobile machine and works horizontally.
4. Additional turnover anchor will be provided if the power is feed centrally
5. Additional control cabinet is also equipped.About Enquiry:
1. Do you have special requirement about the power types?
Spring type / motor powered type
2. What is the cable specification?
Cable core number × Cross section,Cable outer diameter,coil length of cable?
3. What kind of mobile equipment will the cable reel be applied with?

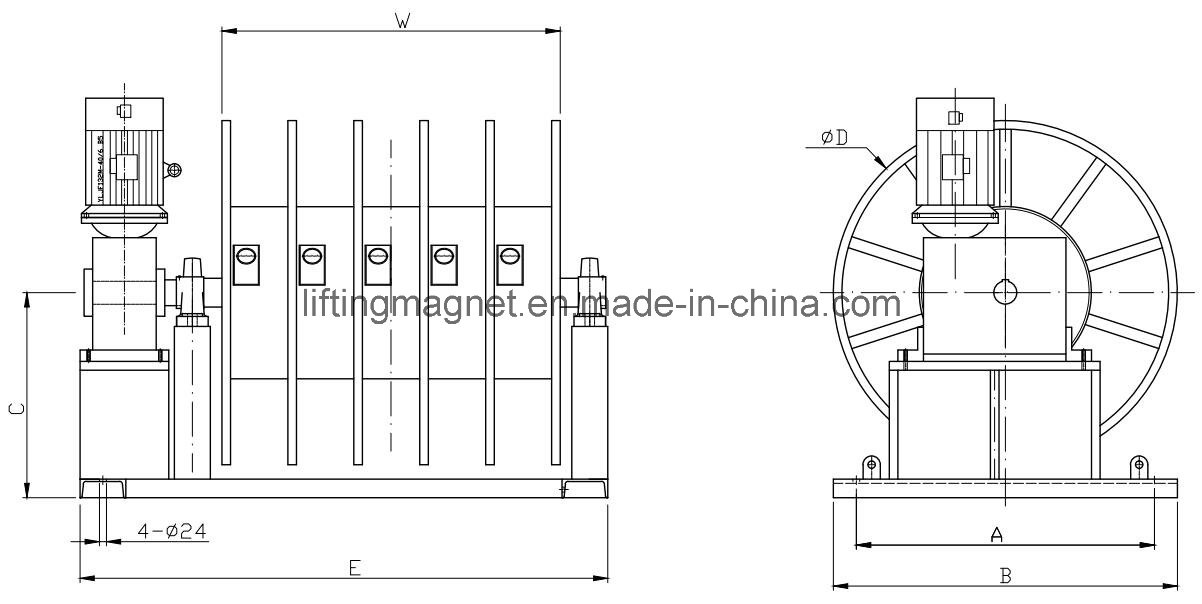

Lifting electromagnet, all kinds of crane or othersOverall dimension drawing:

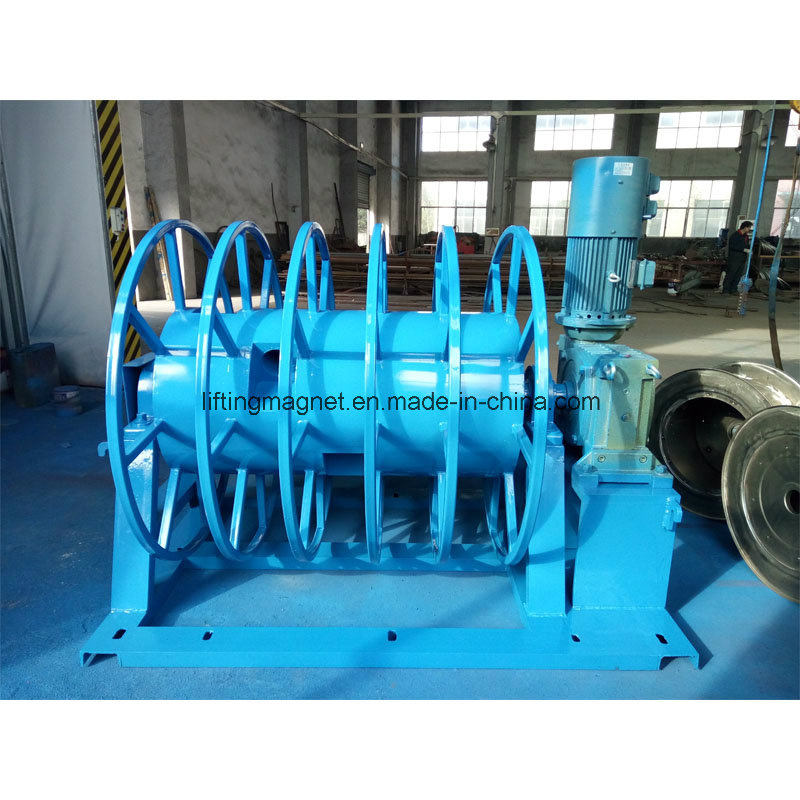

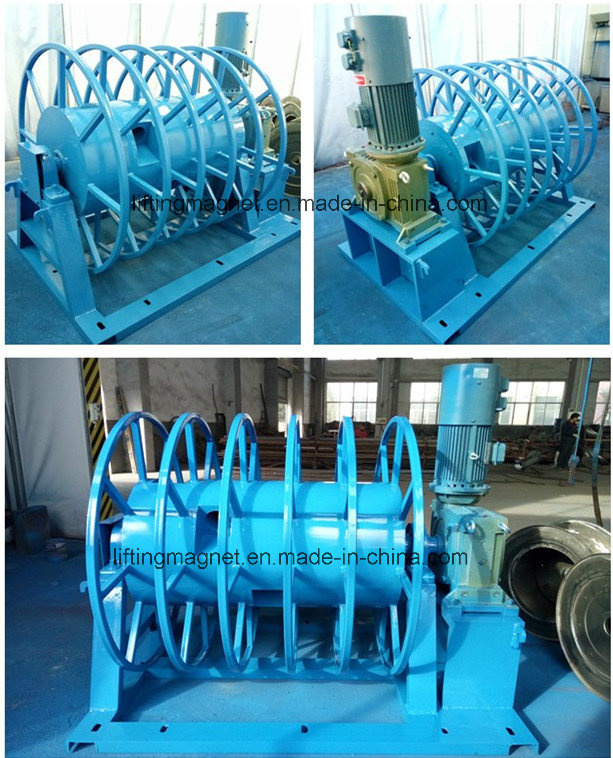

Produtct picture:
Technical data:
The cable reel size is designed according to your requirement and specific application.
| Cable Model | Enable Current(A)
(40 centigrade) | 50m series | Item
No. | 100m series | Item
No. | 150m series | Item
No. | 200m series | Item
No. |
Core numbers ×
cross section
(mm²) | continuously | 1 min. on;
1 min. Off |
| YC3×25+1×10 | 90 | 120 | | | JDD90-100-4 | 3 | JDD90-150-4 | 4 | JDD90-200-4 | 4 |
| YC3×35+1×10 | 110 | 150 | | | JDD110-100-4 | 3 | JDD110-150-4 | 4 | JDD110-200-4 | 4 |
| YC3×50+1×16 | 140 | 180 | JDD140-50-4 | 1 | JDD140-100-4 | 3 | JDD140-150-4 | 4 | JDD140-200-4 | 5 |
| YC3×70+1×25 | 180 | 220 | JDD180-50-4 | 1 | JDD180-100-4 | 3 | JDD180-150-4 | 4 | JDD180-200-4 | 5 |
| YC3×95+1×35 | 210 | 270 | JDD210-50-4 | 2 | JDD210-100-4 | 4 | JDD210-150-4 | 5 | JDD210-200-4 | 6 |
| YC3×120+1×35 | 250 | 320 | JDD250-50-4 | 2 | JDD250-100-4 | 4 | JDD250-150-4 | 5 | JDD250-200-4 | 6 |
| Overall dimension table(mm) |
| Item No. | A | B | C | D1 | D2 | d | E | F | H | I | K | W | Mass (kg) |
| 1 | 665 | 575 | 720 | 1000 | 1800 | 26 | 750 | 1450 | 900 | 80 | 60 | 180 | 830 |
| 2 | 665 | 575 | 720 | 1000 | 2000 | 26 | 750 | 1450 | 900 | 80 | 60 | 180 | 840 |
| 3 | 665 | 575 | 720 | 1000 | 2200 | 26 | 750 | 1450 | 900 | 80 | 60 | 180 | 860 |
| 4 | 665 | 575 | 720 | 1200 | 2500 | 26 | 750 | 1450 | 900 | 80 | 60 | 220 | 930 |
| 5 | 665 | 575 | 720 | 1300 | 2800 | 26 | 750 | 1450 | 900 | 80 | 60 | 220 | 980 |
| 6 | 665 | 575 | 720 | 1500 | 3200 | 26 | 750 | 1450 | 900 | 80 | 60 | 220 | 1000 |

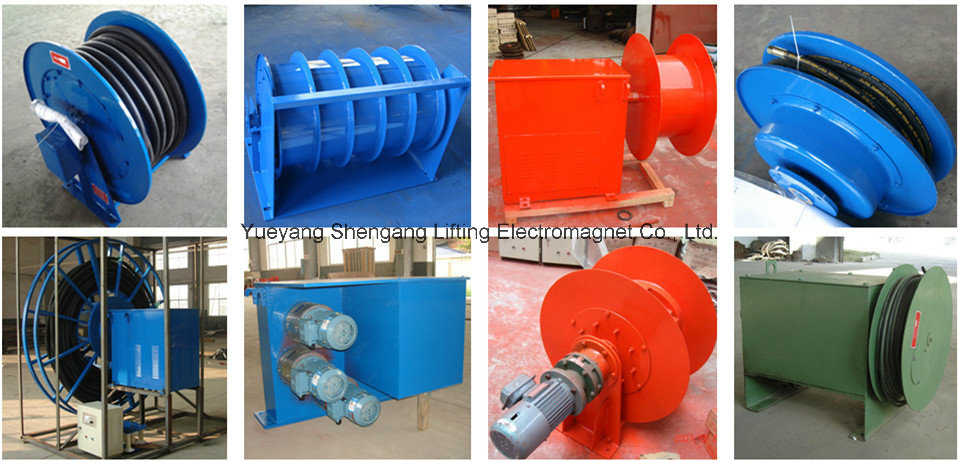

Cable Reel Series:
--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..
Customer Visit:

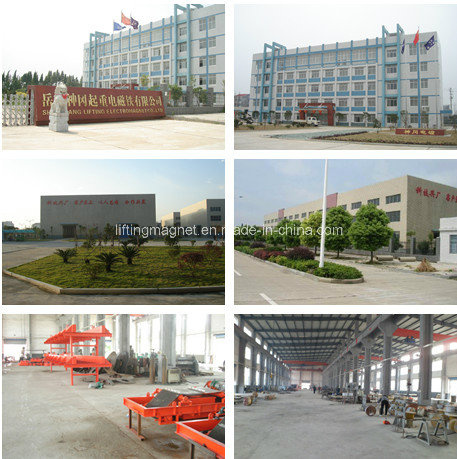

Factory View:
Standard Export Package:
Angle steel welded frame and are fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.
