Overhanging Type Cable Reel for Power Cable
| Price: |
US $ 900-1500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: |
JTD125-70-4-III |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Red |
| Power Type: |
Spring Type |
| Current Capacity: |
125A |
| Cable Length: |
70m |
| Phase Number: |
4 Phase |
| Installation Pattern: |
Overhanging Type |
| Cable Coiling Mode: |
Horizontal Coiling |
| Cable Specification: |
Yc3*25+1*10 |
| Cable Diameter: |
36mm |
| Application: |
Lifting Magnets, Electric Powered Flat Bed Trailer |
| Type: |
Module Connecting Machine |
| Certification: |
SGS |
| Feature: |
Moistureproof |
| Customized: |
Customized |
| Condition: |
New |
Product Description
Overhanging Type Cable Reel for Power CableDescription:
JT Series spring type cable reel is designed by our factory specially. It is a kind of automatic mechanical device which is driven by the spiral springs and using a spring energy storage automatic coiling cable.There are three different types of product available for the customers:
Slip ring built-in type with compact and pretty contour; Slip ring exterior installed type in convenience of service,over hanging type which can coil up much longer cables.Structures and Features:
-- Using spiral springs as power without electric energy consumption to keep reliable in operation;
-- Using collector slip ring carbon brush bracket to transfer the electric energy steadily and continuously;
-- Equipped with reversible unit/guide pulley to avoid the reel counter-rotating to break the springs;
-- Power supply easily, safety and reliability in operation.

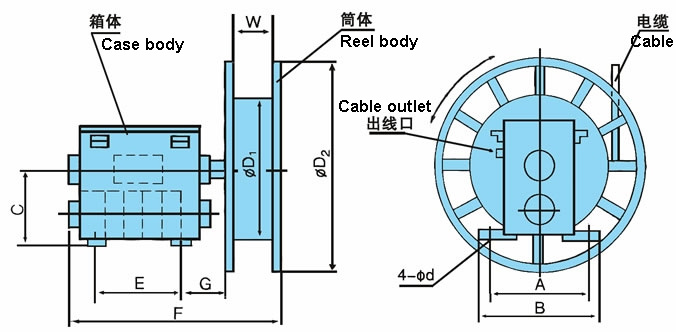

-- Ways of coiling cable: Mid-feed(with guide pulley) or End-feed.Overall Dimension Drawing:

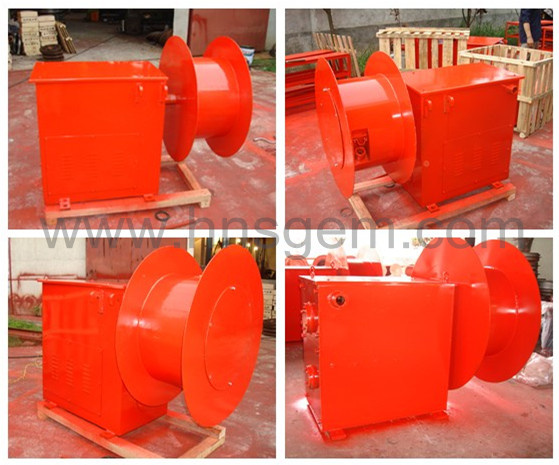

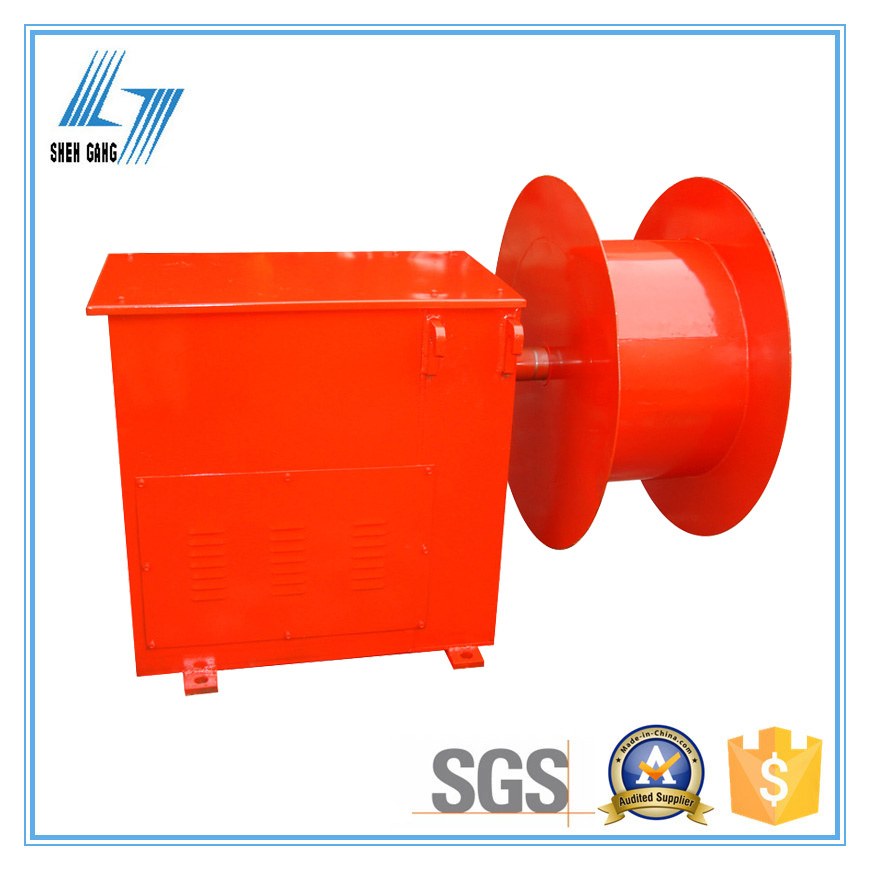

Product Pictures:
About Enquiry:
1. Do you have special requirement about the power types?
Spring type / motor powered type
2. What is the cable specification?
Cable core number × Cross section,Cable outer diameter,coil length of cable?

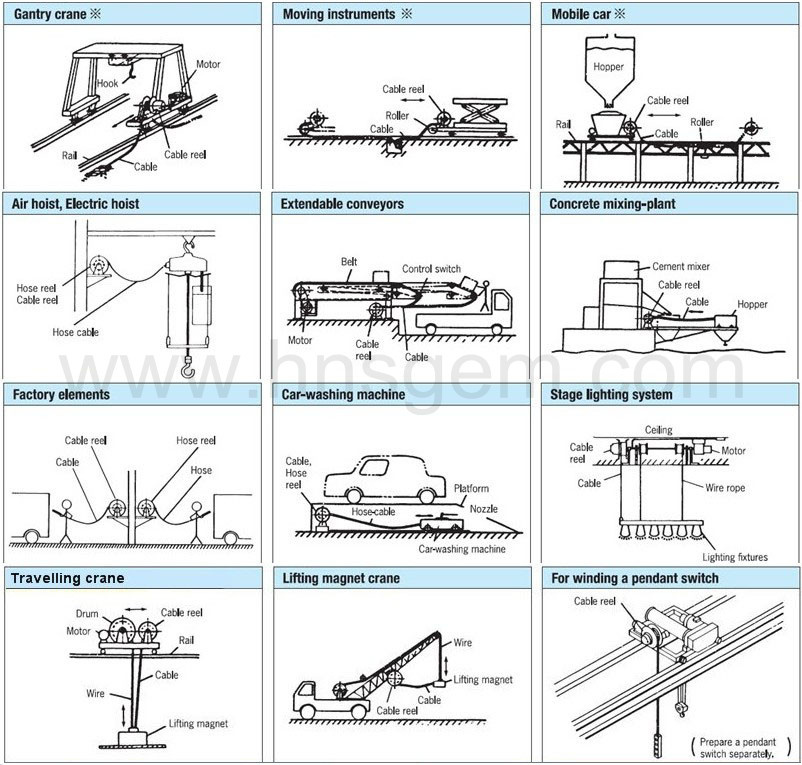

3. What kind of mobile equipment will the cable reel be applied with?
Lifting electromagnet, all kinds of crane or others
Standard Export Package:
(fixed iron frame with five polywoodboard packing to keep safety long-distance transportation; Don't need to be fumigated. )
Quick Response:
--We highly appreciate your any enquiry by email, fax or instant message.
--We will reply your email or fax within 24 hours.
--Please fell free to call us at any time if there is any questions.
Convenient Transportation:
*All available shipping ways could be applied, by courier, air or sea.
*Appointed shipping company or our own forwarders all could be used in shipment.
*Full-way tracking the cargos for you till the goods arrive.| Overall dimension table(mm) |
| Item No. | A | B | C | D1 | D2 | d | E | F | G | W | Weight(kg) |
|
| 1 | 410 | 450 | 462 | 800 | 1300 | 18 | 520 | 1010 | 105 | 250 | 360 |
| 2 | 410 | 450 | 462 | 1000 | 1300 | 18 | 520 | 1010 | 105 | 250 | 380 |
| Technical Data |
| Cable Model | Enable Current(A) (40 centigrade) | 50m series | Item No. | 60m series | Item No. | 70m series |
| Core numbers ×cross section(mm²) | continuously | 1 min. on;1 min. Off |
| YC3×25+1×10 | 91 | 125 | JTC125-50-4-III,JTD125-50-4-III | 1 | JTC125-60-4-III,JTD125-60-4-III | 3 | JTC125-70-4-III,JTD125-70-4-III |
| YC3×35+1×10 | 113 | 150 | JTC150-50-4-III,JTD150-50-4-III | 1 | JTC150-60-4-III,JTD150-60-4-III | 3 | JTC150-70-4-III,JTD150-70-4-III |
| YC3×50+1×16 | 140 | 190 | JTC190-50-4-III,JTD190-50-4-III | 1 |
|
|
|
| YC3×35+1×6+4×4 | 110 | 150 | JTC150-50-8-III,JTD150-50-8-III | 1 | JTC150-60-8-III,JTD150-60-8-III |
|
|
| CRHF10×2.5 | 12 | 20 |
|
| JTC20-60-10-III,JTD20-60-10-III |
|
|
| CRHF12×2.5 | 12 | 20 |
|
| JTC20-60-12-III,JTD20-60-12-III |
|
|
