Spring Operated Cable Reeling Drum for Power Cable
| Price: |
US $ 300-1500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
JTA100-15-2 |
| Color: |
Blue/Red |
| Power Type: |
Spring Type |
| Installation Pattern: |
Vertical Coiling |
| Current Capacity: |
100A |
| Coil Length Of Cable: |
15m |
| Phase Number/Hose Number: |
2 Phase |
| Structure Type: |
Slip Ring Built-in |
| Matched Cable Model: |
Yc 2*16 Sq mm |
| Application: |
Lifting Electromagnet, All Kinds of Cranes etc. |
| Power Source For Cable Reel: |
Spring or Motor Type Optional |
| Type: |
Module Connecting Machine |
| Certification: |
SGS |
| Customized: |
Customized |
| Condition: |
New |
| Feature: |
Insulation |
Product Description
Spring Operated Cable Reeling Drum for Power Cable
Description:
1. JT Series spring type cable reel is designed by our factory specially. It is a kind of automatic mechanical device which is driven by the spiral springs and using a spring energy storage automatic coiling cable.
2. It is suitable for all kinds of situations where the mobile cable power supply is needed, such as lifting magnet, electromotion flat car, all kinds of crane, hydraulic pressure grab bucket etc. It has the characteristics of easy power-supply, reliable operation etc.
Structures and Features:
-- Using spiral springs as power without electric energy consumption to keep reliable in operation;
-- Using collector slip ring carbon brush bracket to transfer the electric energy steadily and continuously;
-- Equipped with reversible unit/guide pulley to avoid the reel counter-rotating to break the springs;
-- Power supply easily, safety and reliability in operation.
-- Ways of coiling cable: Mid-feed(with guide pulley) or End-feed.

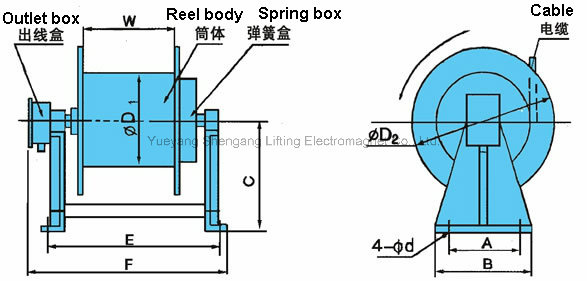

Overall Dimension Drawing:

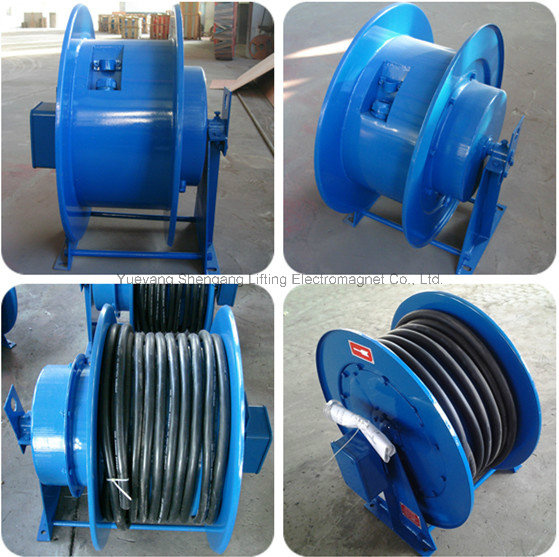

Product Photo:

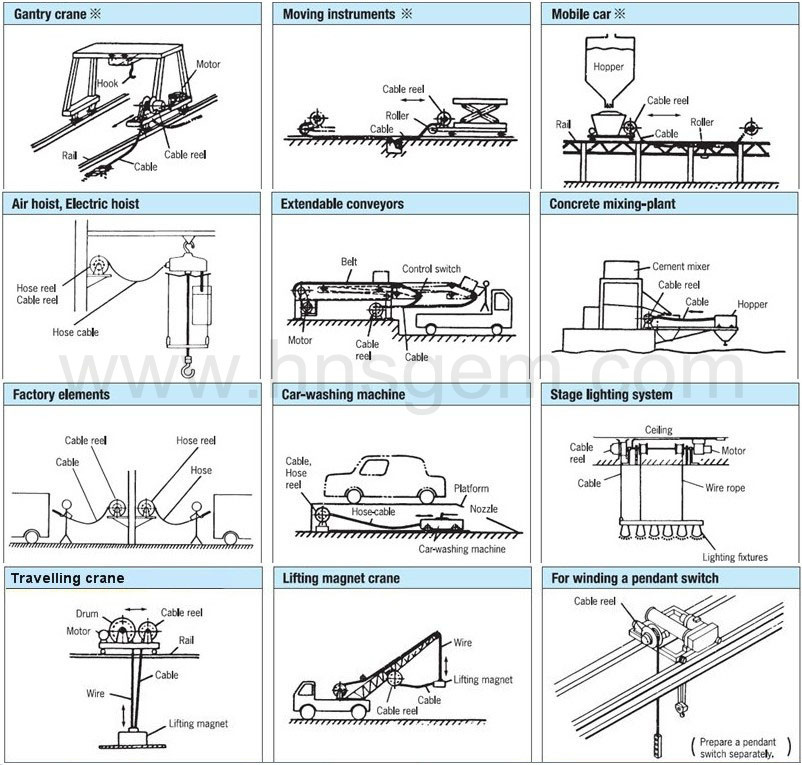

Application:
About Enquiry:
1. Do you have special requirement about the power types?
Spring type / Motor powered type
2. What is the cable specification?
Cable core number × Cross section,Cable outer diameter,coil length of cable?
3. What kind of mobile equipment will the cable reel be applied with?

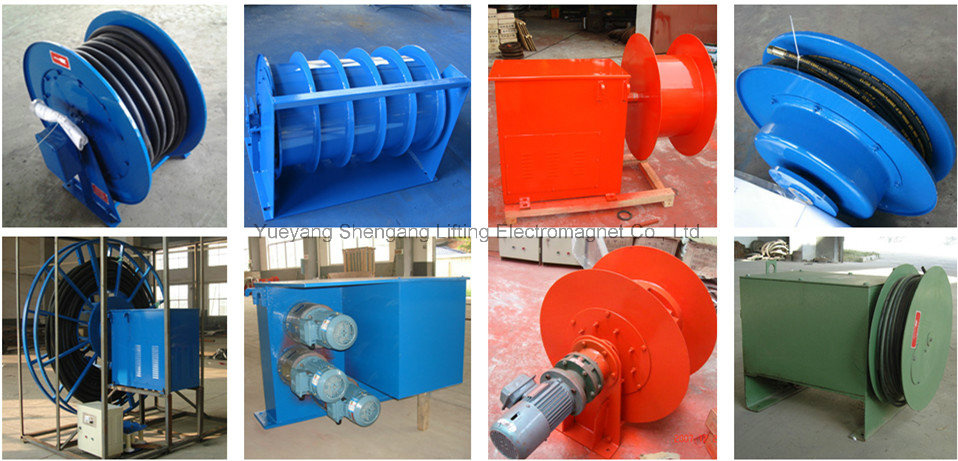

Lifting electromagnet, all kinds of crane or others Cable Reel Series:
--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..
Technical data: | Overall dimension table(mm) |
| Contour items | A | B | C | D1 | D2 | d | E | F | W | Mass (kg) |
|
| 10m series | 1 | 250 | 300 | 300 | 360 | 500 | 14 | 450 | 600 | 320 | 73 |
| 2 | 485 | 650 | 350 | 78 |
| 15m,20m series | 1 | 300 | 360 | 400 | 500 | 700 | 15 | 440 | 600 | 250 | 95 |
| 2 | 490 | 650 | 300 | 100 |
| 3 | 560 | 720 | 250 | 115 |
| 4 | 610 | 770 | 300 | 120 |
| 5 | 720 | 880 | 300 | 150 |
| Technical Data |
| Cable Model | Enabled Current(A)
(40 centigrade) | 15m series | Contour item | 20m series | Contour item | 25m series | Contour item | 30m series | Contour item |
Core number×
Cross section(mm²) | continuously | 1 min. on;
1 min. Off |
| YC2×6 | 40 | 50 | | | | | JTA50-25-2 | 1 | | |
| | | | | JTB50-25-2 | | |
| YC2×10 | 58 | 75 | JTA75-15-2 | 1 | JTA75-20-2 | 1 | JTA75-25-2 | 2 | JTA75-30-2 | 6 |
| JTB75-15-2 | JTB75-20-2 | JTB75-25-2 | JTB75-30-2 |
| YC2×16 | 77 | 100 | JTA100-15-2 | 1 | JTA100-20-2 | 3 | JTA100-25-2 | 2 | JTA100-30-2 | 6 |
| JTB100-15-2 | JTB100-20-2 | JTB100-25-2 | JTB100-30-2 |
| YC2×25 | 106 | 135 | JTA135-15-2 | 4 | JTA135-20-2 | 4 | JTA135-25-2 | 3 | JTA135-30-2 | 8 |
| JTB135-15-2 | JTB135-20-2 | JTB135-25-2 | JTB135-30-2 |
| YC2×35 | 132 | 170 | JTA170-15-2 | 4 | JTA170-20-2 | 5 | JTA170-25-2 | 4 | | |
| JTB170-15-2 | JTB170-20-2 | JTB170-25-2 | | |
Standard Export Package:
(fixed iron frame with five polywoodboard packing to keep safety long-distance transportation; Don't need to be fumigated. )
