| Prod Model: |
SV16S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Power: |
220V Single Phase, 50Hz |
| Rated Pressure: |
700bar |
| Cutting Capacity: |
25t |
| Punching Capacity: |
31t |
| Bending Capacity: |
15t, 25t |
| Punching Thickness: |
4-13mm |
| Weight: |
114.5-160kg |
| Application: |
Machinery & Hardware |
| Type For Cutting Machine: |
Hydraulic Cutting Machine |
| Type For Fold-bending Machine: |
Hydraulic Fold-bend Machine |
| Type For Pipe And Tube Bending Machine: |
Electric Hydraulic Pipe Bender |
Product Description

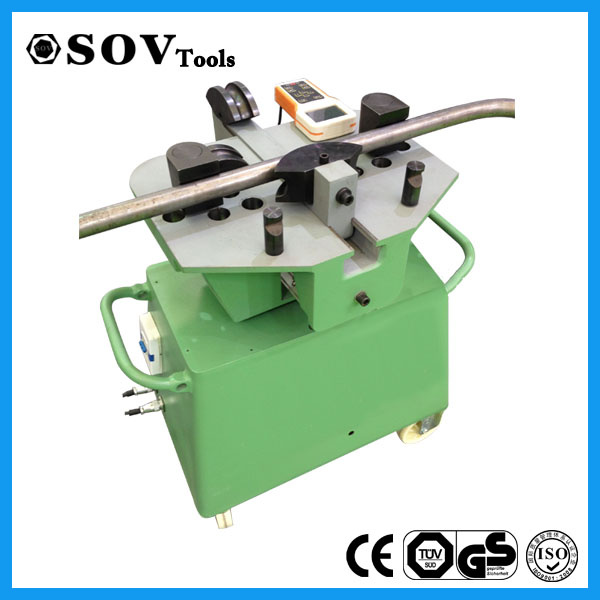

SV16S Series Multifunctional Hydraulic Busbar Machine
Brief Introduction
SV16S series multifunctional hydraulic busbar machine is specially designed to meet the need for increased working efficiency and guaranteed safety. It includes the electric hydraulic pump station, busbar cutter, puncher and busbar bender. All these parts are mounted on one workbench.
Advantages
Adjustable bending angle from 1 degree to 120 degrees; pedal control switch
Safe operating system
Convenient replacement of dies for increased working efficiency
700bar hydraulic system for low noise, durable use and high hardness
Smooth cut edge, precise angle and high efficiency
Double locating ruler available
Double angle ruler available
Specifcations
Model |
SV16S30 |
SV16S30A |
SV16S30B |
Function |
Cutting, punching and bending |
Input Power |
220V single phase, 50HZ |
Rated Pressure |
700bar |
Cutting Capacity |
25T |
Punching Capacity |
31T |
Bending Capacity |
15T |
25T |
25T |
Max. Cutting Capacity |
Cu/Al 150mmx12mm |
Max. Bending Capacity |
Cu 150mmx12mm (horizontal) |
Cu/Al 125mmx16mm (horizontal) |
Cu/Al 125mmx16mm (horizontal) |
Al 150mmx16mm (horizontal) |
Cu/Al 125mmx12mm (vertical) |
Cu/Al 125mmx12mm (vertical) |
Punching Thickness |
4-13mm |
Diameter of Standard Punching Dies |
10.5, 13.5, 17.5, 20.5 |
Workbench Dimension |
910mm(L)x600mm
(W)x1160mm(H) |
910mm(L)x660mm
(W)x1160mm(H) |
910mm(L)x750mm
(W)x1160mm(H) |
Weight |
114.5kg |
153kg |
160kg |
Optional Fittings |
Punching dies |
Punching dies |
Punching dies, bending dies |
Packaging & Shipping
1. Each busbar machine is packed with standard wooden case.
2. Shipping by air or by sea is designated by customer.
Our Services
1. One year guarantee for free repair and mainenance
2. OEM service available
3. Wholehearted after-sales service
