| Price: | US $ 10-50/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,D/P |
| Prod Model: | HKL1416 |
|---|---|
| Working Conditions: | Water Cooling |
| Machine: | Bridge Automatic Cutting Machine or Manual Machine |
| Process: | High-Frequency Welding |
| Feature: | Good Sharpness,Long Working Life |
| Blade Material: | Diamond Segment ,65mn Steel Body &30CrMo |
| Usage: | Dry and Wet |
| Advantage: | Imporved Efficiency,Cutting Lifetime |
FEATURE
1.Adopt high quality steel blank,long working life
2.self-produced diamond powder as raw material to produce diamond segments
3.Good sharpness,high efficiency and stable performance

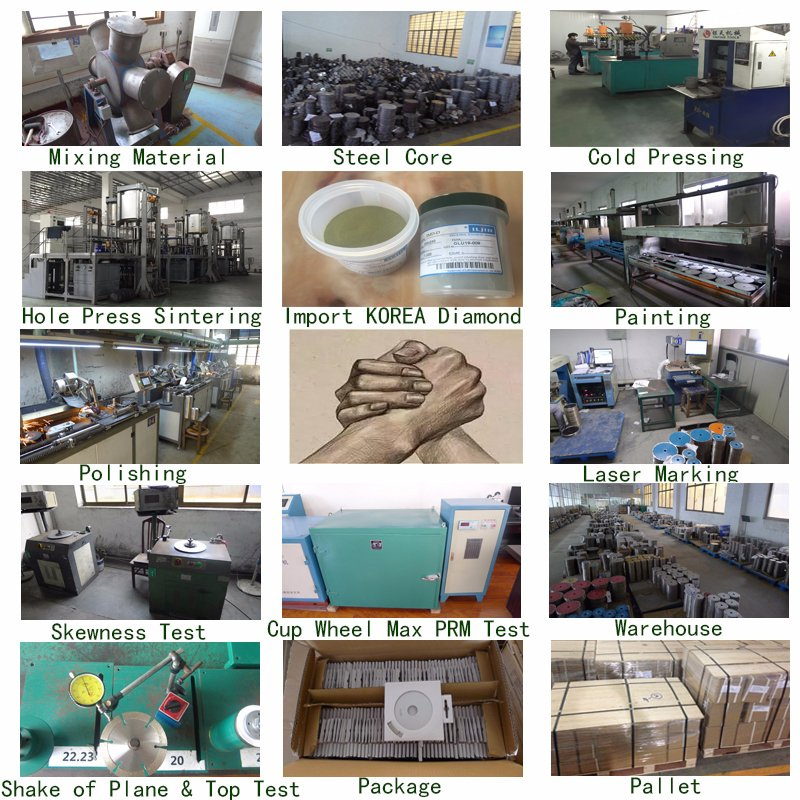

4.Mature production process
5.Strict product quality inspection process
Above specification is only for Reference, other or special specification can be ordered by clients
DIAMETER (MM) | BORE DIAMETER (MM) | SEGMENT WIDTH (MM) | SEGMENT HEIGHT | APPLICATION |
| ∅105 | 20 | 1.8 | 7/10 | For trimming and slabbing granite & hard stone etc. |
| ∅110 | 22.23 | 1.8 | 7/10 | |
| ∅115 | 22.23 | 1.8 | 7/10 | |
| ∅125 | 22.23 | 2.0 | 7/10 | |
| ∅150 | 22.23 | 2.0 | 7/10 | |
| ∅180 | 22.23 | 2.2 | 7/10 | |
| ∅200 | 22.23 | 2.4 | 7/10 | |
| ∅230 | 22.23 | 2.4 | 7/10 | |
| ∅250 | 25.4 | 2.6 | 7/10 | |
| ∅300 | 25.4 | 2.8 | 7/10 | |
| ∅350 | 25.4 | 3.0 | 7/10 |
1. Can we use our brand?
Sure, we provide OEM service ,just send us your packing design and company logo .
2.Can you supply sample for test and your samples are free?
Yes, we will make sample specially according to clients' request,sample cost and freight charge will be paid by clients, but sample cost will be return back to client after order confirmed in future.
3: What are your payment terms?
For small order, pay 100% in advance. Air Cargo or air express, the payment should be 100% T/T before shipment. For the big order, pay 30% or 50% in advance, pay the balance after complete the production of order. We can also accept other payment terms, for example L/C to support our clients.
4: What should we do if your tools can not work well?
Give us detailed report about the usage and we should analyze the reason. If the problem is not caused by unproper operation or different stone type and you can prove our tools problem, we will make another batch of tools to replace the bad one. Besides, we will try to find a way to solve the problem.
5: How can I get the best suitable diamond saw blades and diamond segment for my work?
Provide more details about your stone and saw machine parameters:
1. tell us your target output/performance, such as lifespan and sharpness,
2. Stone Hardness, Abrasiveness and Grit Size of diamond, pictures or samples if possible.
3. Machine type to be used for example Diamond saw blades, Bridge Saw, Table Saw, Brick Saw, etc.
4. Main Motor of Machine, Spindle RPM, Feeding Speed and Cutting Depth.
5. Thickness of blade core blank (blade without diamond segments) for suitable diamond segment width.
Please provide more details as possible as you can.
