| Prod Model: |
AQ BQ NQ HQ PQ B T TT T2 T6 T6S LTK WG WF MLC. |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Matrix Height: |
6mm-14mm |
| Crown: |
W Profile |
| Waterway: |
Standard Type |
| Standard: |
Boart Longyear Standard |
| Use: |
Mining,Core |
Product Description
The main crown technical parameters of impregnated diamond core bits include diamond grade,size,
concentrarion and quality,matrix hardness and crown shapes. The users can make rational selections according to the formations to be drilled.

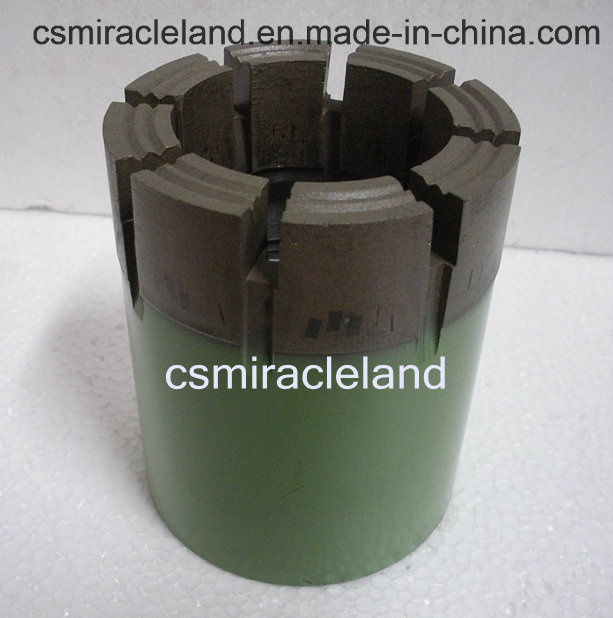

To avoid excessive bit wear, tungsten carbide inserts are used on both sides on the waterway,and gage stones are a bit large. Impregnated Diamond Core Bit is made with high quality synthetic diamonds, mixed evenly through a metal alloy matrix. It can drill various formations from the softest to hardest rocks.
The choice of the diamond bit crown shape:
W Profile
Suitable for drilling hard dense formations with high penetration rate.
Semi-Round Profile
Impregnated bits with this profile are recommended for use in highly fractured formations with good drilling stability. Surface set bits of this style have a long bit life and the matrix is not easy to be damaged.
Flat Profile
It's suitable for various rocks, often used in impregnated casing bits, casing shoes as well as the bits with very hard matrices(e.g. F1, F2).
Cross Profile
It's especially designed for ultra-hard formations, such as granite (hardness 8-9), ganister, quartzite, siliceous limestone, chert, etc.
Multi-Step Profile
Multi-Step type impregnated bit are suitable for soft to medium hard formations and alternating hard-soft formations. With very good drilling stability, it makes the borehole not liable to deflection and the penetration fast. This profile is also often adopted in thick-kerf surface set core bits, with good drilling stability and fast penetration.
Shaped Gear Profile
It's suitable for competent formations, and can expand the flushing ways and improve the penetration rate.
Face Discharge
It's suitable for sedimentary and metamorphic formations, or the formations including with lots of mineral powders, this design can protect the core from flushing and improve the getting effciency of core samples.
Sizes Available:
Diamond core drill bits
A-Gauge Core Bits: AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: NQ, NQ-RSG, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW,
H-Gauge Core Bits: HQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P-Gauge Core Bits: PQ, PQ3, PWF-Long, PWF-Short
S-Gauge Core Bits: SWF-Long, SWF-Short
U-Gauge Core Bits: UWF-Long, UWF-Short
Z-Gauge Core Bits: ZWF-Long, ZWF-Short
T, TT, T2 & TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-66, T2-76, T2-76Coreline, T2-86,
T2-86 Coreline, T2-101, T2-101 Coreline
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
B Series(IS03552-1)Metric Core Bits: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
and all other standard CDDA, DCDMA, Crealius, and ISO sizes .
Dimensions of Core Bits:
| A-Gauge Core Bits |
| Size | Outside diameter | Inside diameter |
| inch | mm | inch | mm |
| AQ | 1.880/1.870 | 47.75/47.50 | 1.607/1.057 | 27.10/26.85 |
| AQ-RSG | 1.895/1.885 | 48.13/47.88 | 1.067/1.057 | 27.10/26.85 |
| AWG,AX | 1.880/1.870 | 47.75/47.50 | 1.190/1.180 | 30.23/29.97 |
| AWM | 1.880/1.870 | 47.75/47.50 | 1.190/1.180 | 30.23/29.97 |
| AWT | 1.880/1.870 | 47.75/47.50 | 1.286/1.276 | 32.66/32.41 |
| LTK48 | 1.880/1.870 | 47.75/47.50 | 1.394/1.384 | 35.40/35.15 |
| B-Gauge Core Bits |
| BQ | 2.350/2.340 | 59.69/59.44 | 1.438/1.428 | 36.52/36.27 |
| BQ-RSG | 2.365/2.355 | 60.77/59.82 | 1.438/1.428 | 36.52/36.27 |
| BQ-2.400 | 2.045/2.395 | 61.09/60.83 | 1.438/1.428 | 36.52/36.27 |
| BQ3 | 2.350/2.340 | 59.69/59.44 | 1.325/1.315 | 33.65/33.40 |
| BWG,BX | 2.350/2.340 | 59.69/59.44 | 1.660/1.650 | 42.16/41.91 |
| BWM | 2.350/2.340 | 59.69/59.44 | 1.660/1.650 | 42.16/41.91 |
| BWT | 2.350/2.340 | 59.69/59.44 | 1.755/1.745 | 44.58/44.32 |
| LTK60 | 2.350/2.340 | 59.69/59.44 | 1.742/1.732 | 44.25/44.00 |
| TBW | 2.350/2.340 | 59.69/59.44 | 1.785/1.775 | 45.34/45.09 |
| N-Gauge Core Bits |
| NQ | 2.970/2.960 | 75.44/75.19 | 1.880/1.870 | 47.75/47.50 |
| NQ-RSG | 2.985/2.975 | 75.82/75.57 | 1.880/1.870 | 47.75/47.50 |
| NQ-3.032 | 3.037/3.027 | 77.14/76.89 | 1.880/1.870 | 47.75/47.50 |
| NQ2 | 2.970/2.960 | 75.44/75.19 | 2.000/1.990 | 50.80/50.55 |
| NQ2-RSG | 2.985/2.975 | 75.82/75.57 | 2.000/1.990 | 50.80/50.55 |
| NQ3,NWLTT | 2.970/2.960 | 75.44/75.19 | 1.780/1.770 | 45.21/44.96 |
| NQ3-RSG | 2.985/2.975 | 75.82/75.57 | 1.780/1.770 | 45.21/44.96 |
| NQ3-3.032 | 3.037/3.027 | 77.14/76.89 | 1.780/1.770 | 45.21/44.96 |
| LMLC | 2.970/2.960 | 75.44/75.19 | 2.052/2.042 | 52.12/51.87 |
| NWG, NX | 2.970/2.960 | 75.44/75.19 | 2.160/2.150 | 54.86/54.61 |
| NWM | 2.970/2.960 | 75.44/75.19 | 2.160/2.150 | 54.86/54.61 |
| NWT | 2.970/2.960 | 75.44/75.19 | 2.318/2.308 | 58.87/58.62 |
| TNW | 2.970/2.960 | 75.44/75.19 | 2.394/2.384 | 60.80/60.55 |
| H-Gauge Core Bits |
| HQ | 3.770/3.755 | 95.76/95.38 | 2.505/2.495 | 63.63/63.38 |
| HQ-RSG | 3.790/3.755 | 96.27/95.89 | 2.505/2.495 | 63.63/63.38 |
| HQ-3.830 | 3.840/3.825 | 97.54/97.16 | 2.505/2.495 | 63.63/63.38 |
| HQ-3.895 | 3.897/3.882 | 98.98/98.60 | 2.505/2.495 | 63.63/63.38 |
| HQ3, WLHTT | 3.770/3.755 | 95.76/95.38 | 2.411/2.401 | 61.24/60.99 |
| HQ3-RSG | 3.790/3.755 | 96.27/95.89 | 2.411/2.401 | 61.24/60.99 |
| HQ3-3.830 | 3.840/3.825 | 97.54/97.16 | 2.411/2.401 | 61.24/60.99 |
| HQ3-3.895 | 3.897/3.882 | 98.98/98.60 | 2.411/2.401 | 61.24/60.99 |
| HMLC | 3.897/3.882 | 98.98/98.60 | 2.505/2.495 | 63.63/63.38 |
| HWF-Long | 3.912/3.897 | 99.36/98.98 | 3.005/2.995 | 76.33/76.08 |
| HWF-Short | 3.897/3.882 | 98.98/98.60 | 3.005/2.995 | 76.33/76.08 |
| HWG, HX | 3.897/3.882 | 98.98/98.60 | 3.005/2.995 | 76.33/76.08 |
| HWM | 3.897/3.882 | 98.98/98.60 | 3.005/2.995 | 76.33/76.08 |
| HWT | 3.897/3.882 | 98.98/98.60 | 3.192/3.182 | 81.08/8082 |
| P-Gauge Core Bits |
| PQ | 4.815/4.795 | 122.30/121.80 | 3.350/3.340 | 85.09/84.84 |
| PQ3 | 4.815/4.795 | 122.30/121.80 | 3.275/3.265 | 83.18/82.93 |
| PWF-Long | 4.755/4.740 | 120.78/120.40 | 3.635/3.620 | 92.33/91.95 |
| PWF-Short | 4.735/4.715 | 120.27/119.76 | 3.635/3.620 | 92.33/91.95 |
| S-Gauge Core Bits |
| SWF-Long | 5.755/5.740 | 146.18/145.80 | 4.447/4.432 | 112.95/112.57 |
| SWF-Short | 5.735/5.715 | 145.67/145.16 | 4.447/4.432 | 112.95/112.57 |
| U-Gauge Core Bits |
| UWF-Long | 6.880/6.860 | 174.75/174.24 | 5.515/5.495 | 140.08/139.57 |
| UWF-Short | 6.855/6.825 | 174.12/173.36 | 5.515/5.495 | 140.08/139.57 |
| Z-Gauge Core Bits |
| ZWF-Long | 7.880/7.860 | 200.15/199.64 | 6.515/6.495 | 165.48/164.97 |
| ZWF-Short | 7.855/7.825 | 199.52/198.76 | 6.515/6.495 | 165.48/164.97 |
| T, TT, T2 & TB Series Metric Core Bits |
| T36 | 1.422/1.412 | 36.12/35.87 | 0.859/0.849 | 21.82/21.57 |
| TT46 | 1.818/1.808 | 46.18/45.92 | 1.394/1.384 | 35.40/35.15 |
| T2-46 | 1.818/1.808 | 46.18/45.92 | 1.253/1.243 | 31.82/31.57 |
| TB56 | 2.220 | 56.30 | 1.640 | 41.70 |
| TT56 | 2.210/2.200 | 56.13/55.88 | 1.788/1.778 | 45.41/45.16 |
| T2-56 | 2.210/2.200 | 56.13/55.88 | 1.647/1.637 | 41.83/41.58 |
| T2-66 | 2.603/2.593 | 66.12/65.87 | 2.040/2.030 | 51.81/51.56 |
| T2-76 | 2.997/2.987 | 76.12/75.87 | 2.434/2.424 | 61.82/61.57 |
| T2-76 Coreline | 2.997/2.987 | 76.12/75.87 | 2.288/2.278 | 58.12/57.87 |
| T2-86 | 3.391/3.381 | 86.13/85.88 | 2.828/2.818 | 71.83/71.58 |
| T2-86 Coreline | 3.391/3.381 | 86.13/85.88 | 2.682/2.672 | 68.13/67.88 |
| T2-101 | 3.981/3.971 | 101.12/100.87 | 3.300/3.290 | 83.82/83.57 |
| T2-101 Coreline | 3.971/3.971 | 101.12/100.87 | 3.155/3.145 | 80.13/79.88 |
| T6 Series Metric Core Bits |
| T6-76 | 2.997/2.987 | 76.12/75.87 | 2.249/2.239 | 57.12/56.87 |
| T6-86 | 3.391/3.381 | 86.13/85.88 | 2.643/2.633 | 67.13/66.88 |
| T6-101 | 3.981/3.971 | 101.12/100.87 | 3.115/3.105 | 79.12/78.87 |
| T6-116 | 4.575/4.560 | 116.20/115.82 | 3.667/3.657 | 93.14/92.89 |
| T6-131 | 5.165/5.150 | 131.19/130.81 | 4.257/4.247 | 108.13/107.88 |
| T6-146 | 5.755/5.740 | 146.18/145.8 | 4.847/4.837 | 123.11/122.86 |
| T6S Series Metric Core Bits |
| T6S-76 | 3.009/2.999 | 76.43/76.18 | 1.883/1.873 | 47.83/47.58 |
| T6S-86 | 3.403/3.393 | 86.43/86.18 | 2.277/2.267 | 57.83/57.58 |
| T6S-101 | 3.993/3.983 | 101.43/101.18 | 2.828/2.818 | 71.83/71.58 |
| T6S-116 | 4.586/4.571 | 116.48/116.10 | 3.379/3.369 | 85.83/85.58 |
| T6S-131 | 5.177/5.162 | 131.48/131.10 | 3.970/3.960 | 100.83/100.58 |
| T6S-146 | 5.767/5.752 | 146.48/146.10 | 4.560/4.550 | 115.83/115.58 |
| B Series (ISO3552-1) Metric Core Bits |
| B36 | 1.422/1.412 | 36.12/35.87 | 0.859/0.849 | 21.82/21.57 |
| B46 | 1.818/1.808 | 46.18/45.92 | 1.253/1.243 | 31.82/31.57 |
| B56 | 2.210/2.200 | 56.13/55.88 | 1.647/1.637 | 41.83/41.58 |
| B66 | 2.603/2.593 | 66.12/65.87 | 2.040/2.030 | 51.81/51.56 |
| B76 | 2.997/2.987 | 76.12/75.87 | 2.434/2.424 | 61.82/61.57 |
| B86 | 3.391/3.381 | 86.13/85.88 | 2.828/2.818 | 71.83/71.58 |
| B101 | 3.981/3.971 | 101.12/100.87 | 3.418/3.408 | 86.82/86.57 |
| B116 | 4.575/4.560 | 116.20/115.82 | 4.009/3.999 | 101.83/101.58 |
| B131 | 5.165/5.150 | 131.19/130.81 | 4.599/4.589 | 116.82/116.57 |
| B146 | 5.755/5.740 | 146.18/145.80 | 5.190/5.180 | 131.82/131.57 |
