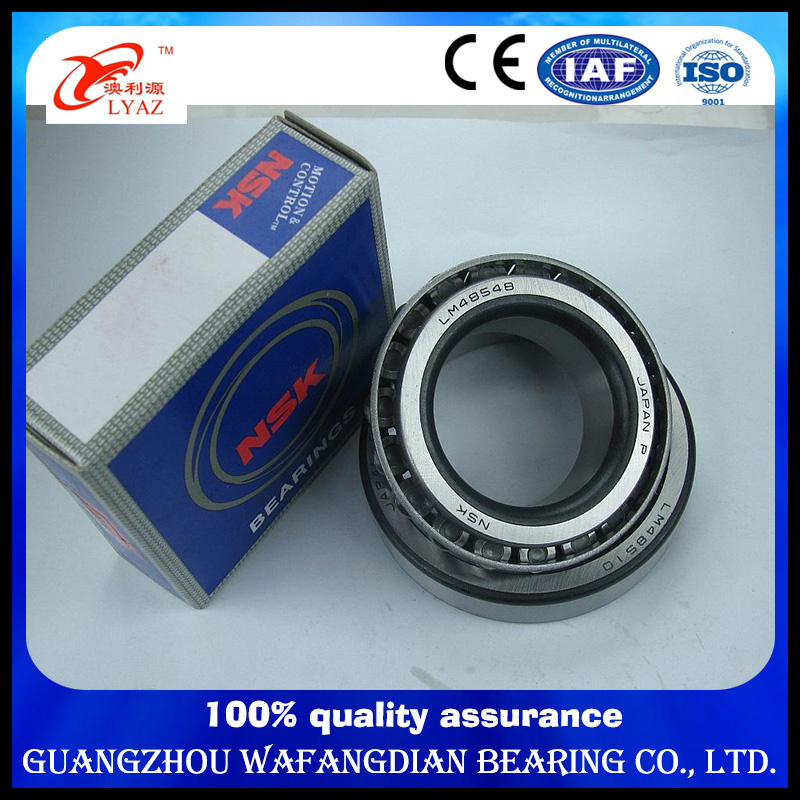

NSK Japan Original Taper Roller Bearing 7205e 30205 Bearing for Constructive Machinery

Name: NSK Japan Original Taper Roller Bearing 7205e 30205 Bearing for Constructive Machinery
Brand: tool-buy.com
SKU: 717397612
Availability: InStock
Rating: 4.8 (117 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Guangzhou Wafangdian Bearing Co., Ltd.

Showroom Product Company Profile

Prod Model:	7205e 30205
Hardness:	59-63HRC
Precision Rating:	P0,P6,P5
Seals Type:	Open, Open
Vibration:	V1,V2,V3,V4
Noise Level:	Z, Z1, Z2, Z3, Z4
Lubrication:	Oil, Grease, Dry
Service:	OEM Service, Good Product, Prompt Delivery
Customer Brand:	Acceptable
Guarantee:	One Year
OEM Service:	Approval
Rolling Body:	Roller Bearings
The Number Of Rows:	Single
Outer Dimension:	Small and Medium-Sized (',60-115mm)
Material:	Bearing Steel
Load Direction:	Radial Bearing
Separated:	Separated

Product Description

Packaging & Delivery

Packaging Details:	1.Industrial Packing: a)Plastic Tube+Carton+Pallet b)Plastic Bag+Kraft Paper+Carton+Pallet . 2.Commercial Packing a)Plastic Bag+Color Box+Carton+Pallet. 3. According to the Requirement of Customers.
Delivery Detail:	within 7 days after confirmed this order

Tapered Roller Bearings 7205e 30205 bearing for constructive machinery

Product Details
Products	Taped Roller Bearing
Brand	HTRX,Neutral or Customers' requirements
Series	30200 series,30300 series,31300 series,32000 series,32200 series,32300 series, 31000 series,33000 series,33100 series,33200 series,32200 series,inch and non-standard series
Bearing Material	Chrome steel GCR15, Carbon steel ,stainless steel
Cage Material	Steel ,Brass
Quality Standard	ISO/TS16949:2009
Service	OEM or Customers' Sample
Payment Terms	T/T ,Western Union ,L/C
Application	Widely used in general machinery ,Cars, Trucks ,Railways ,Ships ,Mines,Metals,Power ,Agricultural machinery and so on
Packaging	1):plastic tube +Kraft paper +wooden box 2):plastic tube +Kraft paper +Carton+pallet 3:1piece/pp bag +color carton +master carton+pallet 4):As customers' requirements

Applications

In many applications tapered roller bearings are used in back-to-back pairs so that axial forces can be supported equally in either direction.

Pairs of tapered roller bearings are used in car and vehicle wheel bearings where they must cope simultaneously with large vertical (radial) and horizontal (axial) forces. Applications for tapered roller bearings are commonly used for moderate speed, heavy duty applications where durability is required. Common real world applications are in agriculture, construction and mining equipment, axle systems, gear box, engine motors.

Parts models of tapered roller bearings:

Product Description

1.ISO9001:2008 Qualification

2.Chrome steel material,GCr15SiMn

3.Fruitful bearing selling history

4.OEM Supply

5.Small order acceped

6.Gold model supplier

Taper roller bearings are designed to take combined heavy radial loads and heavy thrust loads in one direction while operating at moderate speeds. The bearings shown are single row with a cone and cup (inner and outer rings) and a pressed steel retainer. This kind of bearings can be applied to many fields such as auto rear wheel, transmission, differential, small gear axle, machine tool spindle, building machinery, small-size agricultural machinery, railway vehicle and gear deceleration device, small deceleration device for rolling mill journal, and etc.

Tapered roller bearings are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preload can be made

Number	Unit	Cup OUTSIDE DIA.	Cone BORE	Cone WIDTH	Cup WIDTH	Bearing WIDTH	Max.Shaft Fillet Radii	Max.Hsng. Fillet Radii
Number	Unit	D	d	B	C	T	R	r
30204	mm	47.000	20.000	14.000	12.000	15.250	2.5	1.6
30204	in	1.850	0.787	0.551	0.472	0.600	0.098	0.063
30205	mm	52.000	25.000	15.000	13.000	16.250	2.5	1.9
30205	in	2.047	0.984	0.591	0.512	0.640	0.098	0.075
30206	mm	62.000	30.000	16.000	14.000	17.250	2.5	1.9
30206	in	2.441	1.181	0.630	0.551	0.679	0.098	0.075
30207	mm	72.000	35.000	17.000	15.000	18.250	3.0	2.3
30207	in	2.835	1.378	0.669	0.591	0.719	0.118	0.091
30207/D80	mm	80.000	35.000	17.000	15.000	18.250	1.4	0.9
30207/D80	in	3.150	1.378	0.669	0.591	0.719	0.055	0.035
30208	mm	80.000	40.000	18.000	16.000	19.750	3.0	2.3
30208	in	3.150	1.575	0.709	0.630	0.778	0.118	0.091
30209	mm	85.000	45.000	19.000	16.000	20.750	3.0	2.3
30209	in	3.346	1.772	0.748	0.630	0.817	0.118	0.091
30210	mm	90.000	50.000	20.000	17.000	21.750	3.0	2.3
30210	in	3.543	1.969	0.787	0.669	0.856	0.118	0.091
30211	mm	100.000	55.000	21.000	18.000	22.750	4.0	2.3
30211	in	3.937	2.165	0.827	0.709	0.896	0.157	0.091
30212	mm	110.000	60.000	22.000	19.000	23.750	4.0	2.3
30212	in	4.331	2.362	0.866	0.748	0.935	0.157	0.091
30213	mm	120.000	65.000	23.000	20.000	24.750	4.0	2.3
30213	in	4.724	2.559	0.906	0.787	0.974	0.157	0.091
30214	mm	125.000	70.000	24.000	21.000	26.250	4.0	2.8
30214	in	4.921	2.756	0.945	0.827	1.033	0.157	0.110
30215	mm	130.000	75.000	25.000	22.000	27.250	4.0	2.8
30215	in	5.118	2.953	0.984	0.866	1.073	0.157	0.110
30216	mm	140.000	80.000	26.000	22.000	28.250	5.0	3.5
30216	in	5.512	3.150	1.024	0.866	1.112	0.197	0.138
30217	mm	150.000	85.000	28.000	24.000	30.500	5.0	3.5
30217	in	5.906	3.346	1.102	0.945	1.201	0.197	0.138
30218	mm	160.000	90.000	30.000	26.000	32.500	5.0	3.5
30218	in	6.299	3.543	1.181	1.024	1.280	0.197	0.138
30219	mm	170.000	95.000	32.000	27.000	34.500	5.5	4
30219	in	6.693	3.740	1.260	1.063	1.358	0.217	0.157
30220	mm	180.000	100.000	37.000	29.000	37.000	5.5	4
30220	in	7.087	3.937	1.457	1.142	1.457	0.217	0.157
30221	mm	190.000	105.000	39.000	30.000	39.000	5.5	4.0
30221	in	7.480	4.134	1.535	1.181	1.535	0.217	0.157
30222	mm	200.000	110.000	38.000	32.000	41.000	5.5	4
30222	in	7.874	4.331	1.496	1.260	1.614	0.217	0.157
30224	mm	215.000	120.000	40.000	34.000	43.500	5.5	4
30224	in	8.465	4.724	1.575	1.339	1.713	0.217	0.157
30303	mm	47.000	17.000	14.000	12.000	15.250	2.5	1.6
30303	in	1.850	0.669	0.551	0.472	0.600	0.098	0.063
30304	mm	52.000	20.000	15.000	13.000	16.250	3.0	2.3
30304	in	2.047	0.787	0.591	0.512	0.640	0.118	0.091
30305	mm	62.000	25.000	17.000	15.000	18.250	3.0	2.3
30305	in	2.441	0.984	0.669	0.591	0.719	0.118	0.091
30306	mm	72.000	30.000	19.000	16.000	20.750	3.0	2.3
30306	in	2.835	1.181	0.748	0.630	0.817	0.118	0.091
30306/H23	mm	72.000	30.000	19.000	18.000	23.000	3.0	2.3
30306/H23	in	2.835	1.181	0.748	0.709	0.906	0.118	0.091
30307	mm	80.000	35.000	21.000	18.000	22.750	4.0	2.3
30307	in	3.150	1.378	0.827	0.709	0.896	0.157	0.091
30308	mm	90.000	40.000	23.000	20.000	25.250	4.0	2.3
30308	in	3.543	1.575	0.906	0.787	0.994	0.157	0.091
30309	mm	100.000	45.000	25.000	22.000	27.250	4.0	2.8
30309	in	3.937	1.772	0.984	0.866	1.073	0.157	0.110
30310	mm	110.000	50.000	27.000	23.000	29.250	5.0	3.5
30310	in	4.331	1.969	1.063	0.906	1.152	0.197	0.138
30311	mm	120.000	55.000	29.000	25.000	31.500	5.0	2.8
30311	in	4.724	2.165	1.142	0.984	1.240	0.197	0.110
30312	mm	130.000	60.000	31.000	26.000	33.500	5.5	4
30312	in	5.118	2.362	1.220	1.024	1.319	0.217	0.157
30313	mm	140.000	65.000	33.000	28.000	36.000	5.5	4
30313	in	5.512	2.559	1.299	1.102	1.417	0.217	0.157
30314	mm	150.000	70.000	35.000	30.000	38.000	5.5	4
30314	in	5.906	2.756	1.378	1.181	1.496	0.217	0.157
30315	mm	160.000	75.000	37.000	31.000	40.000	5.5	4
30315	in	6.299	2.953	1.457	1.220	1.575	0.217	0.157
30316	mm	170.000	80.000	39.000	33.000	42.500	5.5	4
30316	in	6.693	3.150	1.535	1.299	1.673	0.217	0.157
30317	mm	180.000	85.000	41.000	34.000	44.500	7.0	4.5
30317	in	7.087	3.346	1.614	1.339	1.752	0.276	0.177
30318	mm	190.000	90.000	43.000	36.000	46.500	7.0	4.5
30318	in	7.480	3.543	1.693	1.417	1.831	0.276	0.177
30319	mm	200.000	95.000	45.000	38.000	49.500	7.0	4.5
30319	in	7.874	3.740	1.772	1.496	1.949	0.276	0.177
30320	mm	215.000	100.000	47.000	39.000	51.500	7.0	4.5
30320	in	8.465	3.937	1.850	1.535	2.028	0.276	0.177
