OEM Agricultural Machinery Bearing UCP206 UCP207 UCP208 UCP210
| Price: |
US $ 1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
ucp206 |
| Structure: |
Pillow Block |
| Precision: |
P4,P5,P6,P0 |
| Sample: |
Avaliable |
| Vibration: |
Z1V1, Z2V2, Z3V3, Z4V4 |
| Housing Material: |
Cast Iron |
| Application: |
Machinery |
| Other Types: |
UCP/Ucf/UCT/Ucst/Ucph Series |
| Mass: |
1.25kg |
| Bearing Material: |
Gcr15 |
Product Description

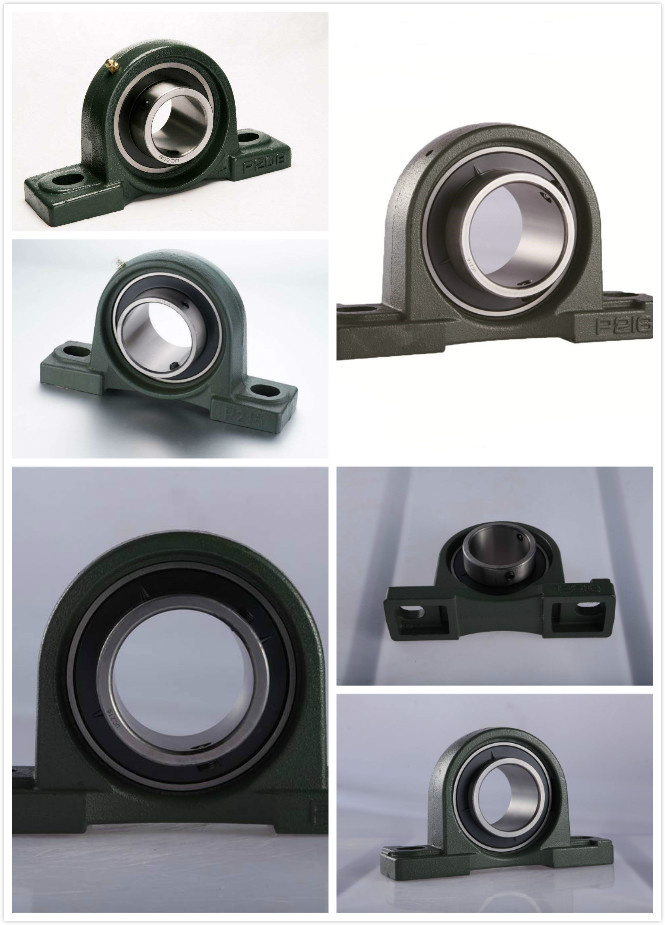

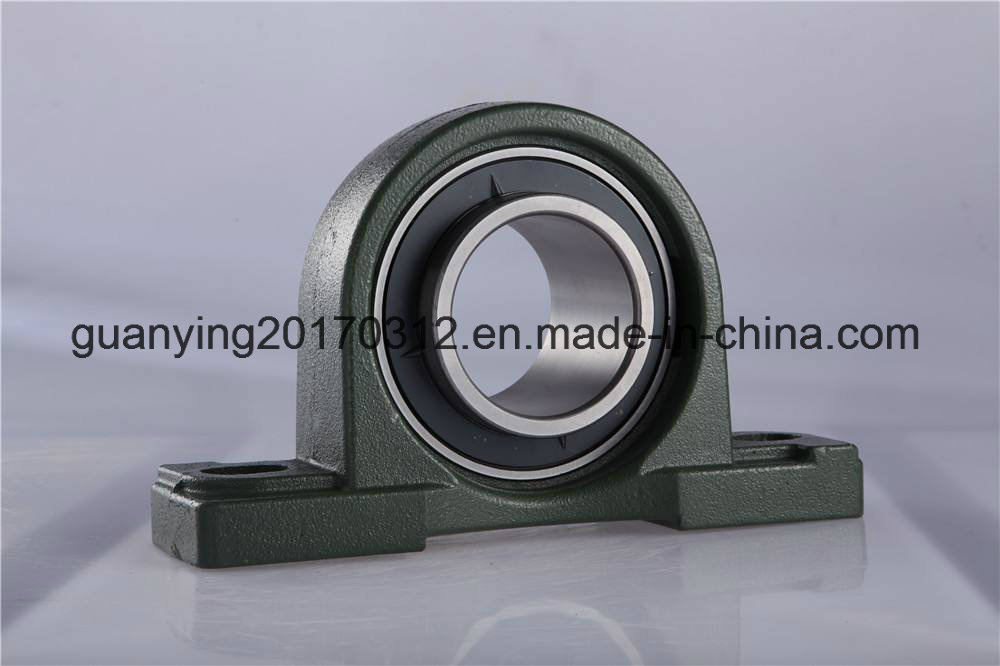

OEM Agricultural machinery pillow block bearing UCP206
Product DescriptionAccording to the different requirements of bearings and bearing, bearing the classification is not exactly the same, in the use of the time according to the design, carefully check the selection.
According to the shape of the bearing:
Spherical bearing with a seat, also known as bearing unit. When the bearing is not called the outer spherical bearing. The outer spherical bearing is divided into 200 series according to the bearing series. 500 series. 300 series. 600 series. XOO series.
The outer spherical plain is divided into vertical seat (P), square seat (F), diamond seat (FL seat), round seat (Block C), convex round seat (FC seat), boss Square seat (FS seat), dark hole seat (PA seat), hanging seat (FA seat).
Integral (ie, non-separate) vertical housing housing with screw-tight bearing housing. These vertical housings are initially developed as axle boxes for light rail trucks, but can also be used in conventional vertical bearing housings. The non-separable vertical housing housing is more rigid than the split housing and some can withstand heavier loads. The outer spherical housing also belongs to the integral seat.
Split bearing
Split bearing, according to the different requirements of the bearing and the requirements of the SN2, 5, 3, 6 series, SNL2, SNL5, SD has 2,5,3,6,3,3,3,300,3200
Bearing seat is divided into: split bearing, sliding bearing, rolling bearing, with flange bearing, spherical bearing and so on.
| Model NO. | Length(mm) | Width(mm) | Thickness(mm) | Weight(kg) |
| UCP201 | 127 | 38 | 60.7 | 0.76 |
| UCP202 | 127 | 38 | 60.7 | 0.74 |
| UCP203 | 127 | 38 | 60.7 | 0.72 |
| UCP204 | 127 | 38 | 64 | 0.7 |
| UCP205 | 140 | 38 | 69.5 | 0.76 |
| UCP206 | 160 | 44 | 82 | 1.25 |
| UCP207 | 167 | 48 | 92 | 1.55 |
| UCP208 | 180 | 52 | 98 | 1.9 |
| UCP209 | 189 | 54 | 106 | 2.2 |
| UCP210 | 204 | 57 | 112 | 2.75 |
| UCP211 | 217 | 60 | 125 | 3.3 |
| UCP212 | 238 | 66 | 137 | 4.7 |
| UCP213 | 262 | 70 | 149 | 5.6 |
| UCP214 | 266 | 72 | 155 | 6.6 |
| UCP215 | 274 | 74 | 162 | 7.3 |
| UCP216 | 292 | 78 | 174 | 9 |
| UCP217 | 310 | 83 | 186 | 10.8 |
| UCP218 | 326 | 88 | 198 | 13 |
| UCP220 | 380 | 95 | 225 | 16 |
| UCP305 | 175 | 45 | 85 | 1.4 |
| UCP306 | 180 | 50 | 95 | 1.8 |
| UCP307 | 210 | 56 | 106 | 2.8 |
| UCP308 | 220 | 60 | 116 | 3.08 |
| UCP309 | 245 | 67 | 129 | 4.1 |
| UCP310 | 275 | 75 | 143 | 6 |
| UCP311 | 310 | 80 | 154 | 7.4 |
| UCP312 | 330 | 85 | 165 | 9.4 |
| UCP313 | 340 | 90 | 176 | 10 |
| UCP314 | 360 | 90 | 187 | 12 |
| UCP315 | 380 | 100 | 198 | 14 |
| UCP316 | 400 | 110 | 210 | 18 |
| UCP317 | 420 | 110 | 220 | 20 |
| UCP318 | 430 | 110 | 220 | 24 |
| UCP319 | 470 | 120 | 250 | 26.5 |
| UCP320 | 490 | 120 | 275 | 34.3 |
| UCP321 | 490 | 120 | 280 | 36.6 |
| UCP322 | 520 | 140 | 300 | 42.5 |
| UCP324 | 570 | 140 | 320 | 53.5 |
| UCP326 | 600 | 140 | 355 | 72.1 |
| UCP328 | 620 | 140 | 390 | 89.1 |
Our Service| We provide our customers with all types of spherical ball bearings and bearing blocks with world class quality. We have passed ISO9001:2008 quality control system. |
| Any requirement for Non-Standard bearing blocks is easily fulfilled by us due to its vast knowledge and links in the industry. It specializes in this field. |
| The Company provides after sales service and technical assistance as per the customers requirements and needs. |
| The company provides just-in-time delivery with its multiple advanced production lines. |
| We provide long-life,shock-resistant and high reliability bearings with excellent quality and better performance. Resulting in increased cost saving. |
| We believe that if customers are satisfied then it proves our value well. Customers are always given quick support. |

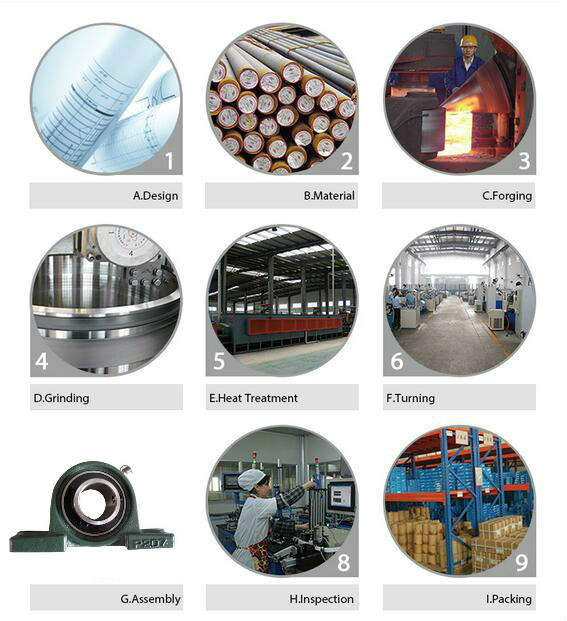

Procedure

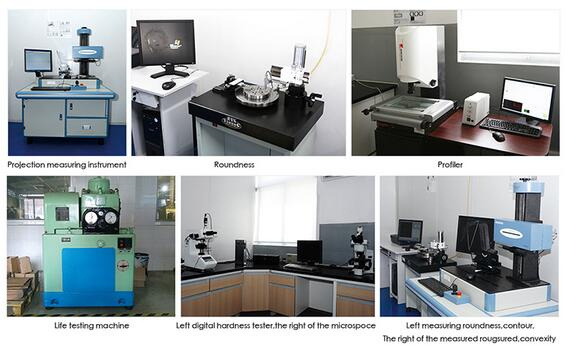

Quality Control
Packing and Shipment
FAQ
Q:Can I request sample?
A:Of course , sample is ok and we can give you a sample by free.
Q:What is your delivery time?
A:Sample order: Immediate delivery , bulk order: usually 30 days.
Q:What's the shipping way?
A:According to your demands.
Q:Can you accept OEM or ODM?
A:Yes, of course. logo is also acceptable.
Q:How is quality controlled?
A:Quality is the key ! Our QC team and engineer team works through all the process from an order placed to shipped.
