| Prod Model: |
GH1440K |
| Horizontal Gap Bed Lathe Machine: |
14"X40", |
| Certificate: |
Ce,ISO9001 |
| Max.Swing Over Bed: |
356mm |
| Width Of Bed: |
260mm |
| Diameter Of Spindle Hole: |
40 |
| Features01: |
Hardened and Ground Bed Ways. |
| Features02: |
12 Speeds All Geared Head Stock. |
| Features03: |
3HP(2.4kw)Three Phase Motor. |
| Other Name: |
Lathe Machine,Lathe Machine Price,Horizontal Lathe |
| Name: |
Turning Lathe,Gap Bed Lathe |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Centre CNC Lathe |
| Tool Holder: |
Double-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description

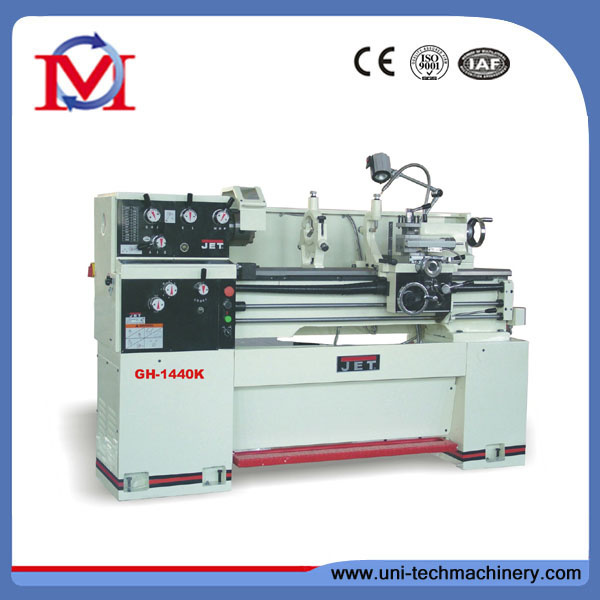

One piece cast iron stand CE standard Lathe GH1440K
1.Main features:
1) Hardened and ground bed ways.
2)12 speeds all geared head stock.
3)3HP(2.4kW)three phase motor.
4) Foot brake giving rapid braking.
5) Emergency stop button equipped on the front of headstock.
6) Jog button for easy gear engagement and inching spindle.
7) Extra safety switch shuts down machine automatically for changing belt or gear for threading cutting. 2.
2.Specifications:
| Specification |
| ITEMS | GH-1440K(CQ6236) |
| General capacity | Max. swing over bed | mm | Φ 356(14" ) |
| Max. swing over slide | mm | Φ 210(8-1/5" ) |
| Max. swing in gap | mm | Φ 508(20" ) |
| Width of bed | mm | 260(10-1/5" ) |
| Max. Length of workpiece | mm | 750(30" )/1000(40" ) |
| Main spindle | Taper of spindle bore | | M. T. No. 5 |
| Diameter of spindle hole | mm | Φ 40(1-1/2" ) |
| Number of spindle speeds | | 12 |
| Range of spindle speeds | | 40-1800 |
| Spindle nose | | D1-4 |
| Threading & Feeding | Metric pitch threads | mm | 0.4-7(37kinds)
0.45-7.5(23kinds) |
| Whit-worth threads | TPI | 4-56(28kinds)
4-112(40kinds) |
| Range of longitudinal feeds | mm | 0.043-0.653(0.0012" -0.0294" rev) |
| Range of cross feeds | mm | 0.024-0.359(0.0004" -0.0103" rev) |
| Leadscrew | Diameter of leadscrew | mm | Φ 22(7/8" ) |
| Pitch threads of leadscrew | mm | 4mm or 8T. P. I |
| Tailstock | Travel of tailstock quill | mm | 120(4-3/4" ) |
| Diameter of tailstock quill | mm | Φ 45(1-25/32" ) |
| Taper hole of tailstock quill | | M. T. No. 3 |
| Power | Power of main motor | | 2.4Kw(3HP), 3Ph, 4P, 60Hz, 230V |
| Coolant pump motor power | kW | 0.04(0.055HP) |
Overall dimensions
(L× W× H) | mm | 1900× 710× 1170 |
Packing size of lathe
(L× W× H) | mm | 1900× 760× 1435 |
| Net weight | kg | 1250(2750 lbs) |
| Gross weight | kg | 1380(3040 lbs) |
3.Standard accessories:
3JAW CHUCK, 4JAW CHUCK, FACE PLATE, STEADY REST, FOLLOWING REST, COOLANT, WORK LIGHT, WRENCHES.
4.Optional accessories:
DRO
QUICK CHANGE TOOLPOST
TAPER TURNING
5.Other informations:
Packing: wooden case.
Delivery time: 40~45 days after down payment.
Payment terms: 30% down payment as ordering; 70% T.T. after BL copy.
