Orienthold Giicl Gear Coupling for Rolling Mill

Name: Orienthold Giicl Gear Coupling for Rolling Mill
Brand: tool-buy.com
SKU: 828231975
Availability: InStock
Rating: 4.8 (74 reviews)

Price:	US $ 10/Set
Min Order:	10/Set
Pay Type:	L/C,T/T

Contact Supplier

Zhenjiang Orienthold Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	GIICL

Product Description

QUALITY IS OUR CULTURE!!!!!

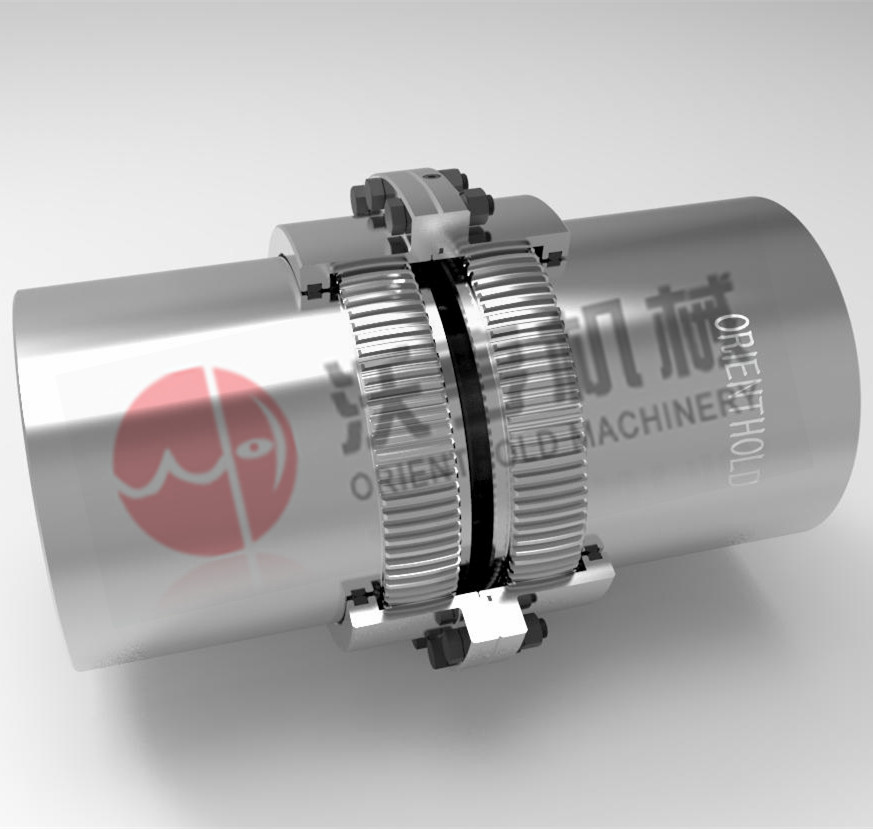

This shaft coupling is applicable to connecting two horizontal line shafting of coaxial line. It has a drum-shaped teeth shaft coupling with angular orientation compensation on relative deviation of two shafts. Temperature of the operating environment is: -20~+80ºC. The nominal transmitting torque is 0.4~4500KN·m

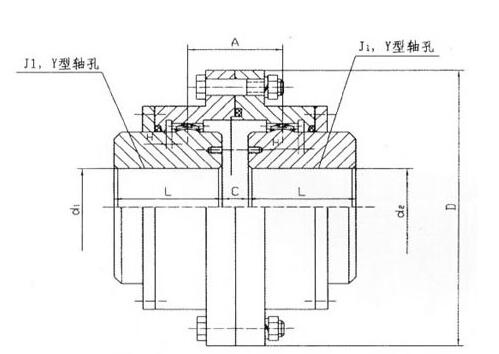

Model	Norminal Torque Tn N·m	Speed [n] r/min	Shaft Hole Dia	Shaft Hole Length	D	H	A	C	Rotational Inertia kg	Grease mL	Weight Kg
			Shaft Hole Dia	Y,J1
			d1,d2	L
GIICL1	355	4000	14-35	38-82	103	2.0	36	8	0.0035-0.00375	51	3.1
GIICL2	630	4000	16-45	38-112	115	2.0	42	8	0.00550-0.00675	70	3.5
GIICL3	1000	4000	22-56	38-112	127	2.0	44	8	0.010-0.0113	68	7.0
GIICL4	1600	4000	38-65	60-142	149	2.0	49	8	0.02-0.0245	87	12.2
GIICL5	2800	4000	40-75	84-142	167	2.5	55	10	0.0378-0.0433	125	18.0
GIICL6	4500	4000	45-90	84-172	187	2.5	56	10	0.0663-0.0843	148	26.5
GIICL7	6300	3750	50-105	84-212	204	3.5	60	10	0.103-0.151	175	39.2
GIICL8	9000	3300	55-115	84-212	230	3.0	67	12	0.167-0.241	268	49.7
GIICL9	14000	3000	60-135	107-252	256	3.0	69	12	0.316-0.470	310	79.6
GIICL10	20000	2650	65-150	107-252	287	3.5	78	14	0.511-0.745	472	101
GIICL11	31500	2350	70-175	107-302	325	3.5	81	14	1.096-1.588	550	161
GIICL12	45000	2100	75-200	107-352	362	4.0	89	16	1.623-3.055	695	213
GIICL13	63000	1850	150-225	202-352	412	4.5	98	18	3.925-4.918	1019	315
GIICL14	100000	1650	170-250	242-410	462	5.5	172	22	8.025-9.725	3900	476
GIICL15	160000	1500	190-285	282-470	512	5.5	182	22	14.300-17.45	3700	696
GIICL16	224000	1300	220-320	282-470	580	7.0	209	28	23.925-29.1	4500	913
GIICL17	315000	1200	250-365	330-550	644	7.0	198	28	43.095-53.725	4900	1322
GIICL18	450000	1050	280-400	380-650	726	8.0	222	28	78.525-99.500	7000	1948
GIICL19	630000	950	300-470	380-650	818	8.0	232	32	136.750-175.5	8900	3026
GIICL20	900000	800	360-540	450-800	928	10.5	247	32	261.75-360.75	11000	3984
GIICL21	1250000	750	400-600	540-800	1022	11.5	255	40	468.75-561.50	13000	4977
GIICL22	1600000	650	450-680	540-800	1134	13.0	262	40	753.750-904.750	16000	7738
GIICL23	2240000	600	500-770	680-800	1282	14.5	299	50	1517-1725	28000	10783
GIICL24	3150000	550	560-880	680-900	1428	16.5	317	50	2486-3131.75	33000	15015
GIICL25	4000000	460	670-1040	900-1000	1644	19.0	325	50	5174.25-7198.25	43000	24080

Zhenjiang Orienthold Machinery Co., Ltd is a medium-scale enterprise specialized in the manufacture of shaft coupling and paper-making machinery with the integration of design, production and service.

Orienthold specialized in the production of various series couplings, total have 29 series, more than 580 types of couplings, such as universal couplings, cardan shafts, gear couplings, flexible couplings, elastic couplings, plum claw-type couplings, disc couplings, tyre couplings, roller chain couplings and so on. All of our products are widely used in metallurgy, mining, shipbuilding, port, paper making and heavy machinery industry.

Orienthold provide supporting services for many domestic large and middle scale Iron and steel corporations, successfully completed more than 10 localization projects of imported coupling production line.

Zhenjiang Orienthold Machinery Co., Ltd. (Zhenjiang Zonerun Shaft manufcturing Co., Ltd. ) is a medium-scale enterprise mainly engaged in manufacturing wood making machines with the integration of design, production and service.

Our company sticks to the principle of equal concentration on reaserch and development and global cooperation. Additionally, We continue to expand our product line and services to meet emerging customer needs.

Our products are sold in the domestic market for more than 30 provinces. With high quality and excellent performance, our products are becoming more and more popular in world market and had been exported to Southeast Asia, Europe, the Middle East, America, Africa and Australia. We provide our clients with not only the latest technology, but also a comprehensive and considerate service.

Advancing with times and innovation-oriented, We aim at efficient recycling and the consequent conservation of resources so as to realize the sustainable development of our society. With good faith, We will win our clients' innermost trust and establish our own brand with strong strength.

We warmly welcome clients from home and abroad and heartedly anticipate to corporate with you to boost our mutual development, resulting in a win-win situation.
