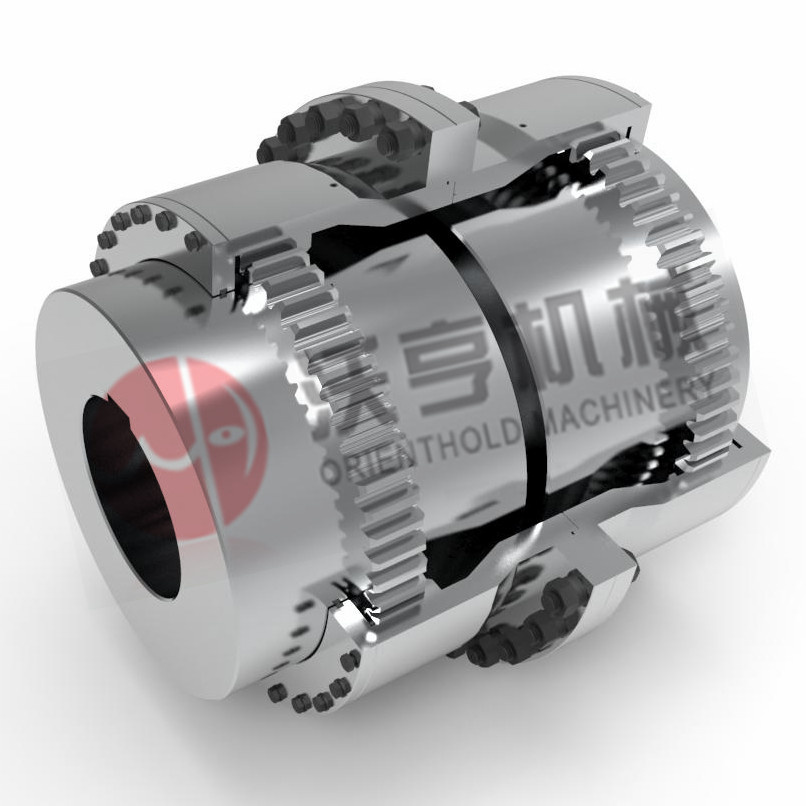

This shaft coupling is suitable for the joint of two level coacial lines, and has the transmissive shafting of certain angular displacement. The transmission nominal torque is 0.8~3200KN·m, and the temperature of working condition is -20~+80ºC
Its products apply widely in transportataion, metallurgy, chemical industry, mine, building construction, hoist and other industries and equipments, and supply for various major industries year by year.

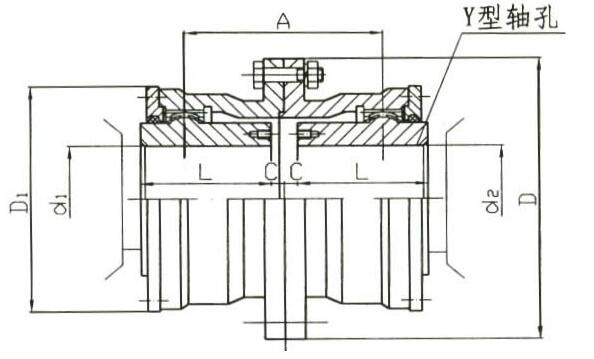

Model | Nominal Torque Tn/N.m | Speed [n] r/min | Shaft Hole Dia | Shaft Hole Length | D | D1 | A | C | C1 | C2 | Rotational InertiaKg | Grease ml | Weight Kg |
Y | Z1,J1 |
d1,d2,d3 | L |
GICL1 | 630 | 7100 | 16,18,19 | 42 | - | 125 | 95 | 75 | 20 | - | - | 0.009 | 55 | 5.9 |
20,22,24 | 52 | 38 | - | 24 |
25,28 | 62 | 44 | 10 | - | 19 |
30,32,35,38 | 82 | 60 | 2.5 | 15 | 22 |
GICL2 | 1120 | 6300 | 25,28 | 62 | 44 | 144 | 120 | 88 | 10.5 | - | 29 | 0.02 | 100 | 9.7 |
30,32,35,38 | 82 | 60 | 12.5 | 30 |
40,42,45,48 | 112 | 84 | 2.5 | 13.5 | 28 |
GICL3 | 2240 | 5900 | 30,32,35,38 | 82 | 60 | 174 | 140 | 106 | 3 | 24.5 | 25 | 0.047 | 140 | 17.2 |
40,42,45,48,50,55,56 | 112 | 84 | 17 | 28 |
60 | 142 | 107 | 35 |
GICL4 | 3600 | 5400 | 32,35,38 | 82 | 60 | 196 | 165 | 125.5 | 14 | 37 | 32 | 0.091 | 170 | 24.9 |
40,42,45,48,50,55,56 | 112 | 84 | 28 |
60,63,65,70 | 142 | 107 | 3 | 17 | 35 |
GICL5 | 5000 | 5000 | 40,42,45,48,50,55,56 | 112 | 84 | 224 | 183 | 142 | 3 | 25 | 28 | 0.167 | 270 | 38 |
60 63 65 70 71 75 | 142 | 107 | 20 | 35 |
80 | 172 | 132 | 22 | 43 |
GICL6 | 7100 | 4800 | 48 50 55 56 | 112 | 84 | 241 | 200 | 160 | 6 | 35 | 35 | 0.267 | 380 | 48.2 |
60 63 65 70 71 75 | 142 | 107 | 20 | 35 |
80 85 90 | 172 | 132 | 4 | 22 | 43 |
GICL7 | 10000 | 4500 | 60 63 65 70 71 75 | 142 | 107 | 260 | 230 | 180 | 4 | 35 | 35 | 0.453 | 570 | 68.9 |
80 85 90 95 | 172 | 132 | 22 | 43 |
100 | 212 | 167 | 48 |
GICL8 | 14000 | 4000 | 65 70 71 75 | 142 | 107 | 282 | 245 | 193 | 5 | 35 | 35 | 0.646 | 660 | 83.3 |
80 85 90 95 | 172 | 132 | 22 | 43 |
100 110 | 212 | 167 | 48 |
GICL9 | 18000 | 3500 | 70 71 75 | 142 | 107 | 314 | 270 | 208 | 10 | 45 | 45 | 1.036 | 700 | 110 |
80 85 90 95 | 172 | 132 |
100 110 120 125 | 212 | 167 | 5 | 22 | 43 |
49 |
GICL10 | 31500 | 3200 | 80 85 90 95 | 172 | 132 | 346 | 300 | 249 | 5 | 43 | 43 | 1.88 | 900 | 157 |
100 110 120 125 | 212 | 167 | 22 | 49 |
130 140 | 252 | 202 | 29 | 54 |
GICL11 | 40000 | 3000 | 100 110 120 125 | 212 | 167 | 380 | 330 | 267 | 6 | 29 | 49 | 3.28 | 1200 | 217 |
130 140 150 | 252 | 202 | 54 |
160 | 302 | 242 | 64 |
GICL12 | 56000 | 2600 | 120 125 | 212 | 167 | 442 | 380 | 313 | 6 | 57 | 57 | 5.08 | 2000 | 305 |
130 140 150 | 252 | 202 | 29 | 55 |
160 170 180 | 302 | 242 | 68 |
GICL13 | 80000 | 2300 | 140 150 | 252 | 202 | 482 | 420 | 364 | 7 | 54 | 57 | 10.06 | 3000 | 419 |
160 170 180 | 302 | 242 | 32 | 70 |
190 200 | 352 | 282 | 80 |
GICL14 | 112000 | 2100 | 160 170 180 | 302 | 242 | 520 | 465 | 415 | 8 | 42 | 70 | 16.774 | 4500 | 594 |
190 200 220 | 352 | 282 | 32 | 80 |
GICL15 | 160000 | 1900 | 190 200 220 | 352 | 282 | 580 | 510 | 429 | 10 | 34 | 80 | 26.55 | 5000 | 783 |
140 150 | 410 | 330 | 38 | - |
GICL16 | 250000 | 1600 | 200 220 | 352 | 282 | 680 | 595 | 501 | 10 | 58 | 80 | 52.22 | 8000 | 1134 |
240 250 260 | 410 | 330 | 38 | - |
280 | 470 | 380 | 38 |
GICL17 | 280000 | 1500 | 220 | 352 | 282 | 720 | 645 | 512 | 10 | 74 | 80 | 69 | 10000 | 1305 |
240 250 260 | 410 | 330 |
280 300 | 470 | 380 | 39 | - |
GICL18 | 355000 | 1400 | 240 250 260 | 410 | 330 | 775 | 675 | 524 | 10 | 46 | - | 96.16 | 11000 | 1626 |
280 300 320 | 470 | 380 | 41 | - |
GICL19 | 450000 | 1300 | 260 | 410 | 330 | 815 | 715 | 560 | 10 | 67 | - | 115.6 | 13000 | 1773 |
280 300 320 | 470 | 380 | 41 |
340 | 550 | 450 |
GICL20 | 500000 | 1200 | 280 300 320 | 470 | 380 | 855 | 755 | 595 | 13 | 44 | - | 167.41 | 16000 | 2263 |
340 360 | 550 | 450 |
GICL21 | 630000 | 1100 | 300 320 | 470 | 380 | 915 | 795 | 611 | 13 | 59 | - | 215.7 | 20000 | 2593 |
340 360 380 | 550 | 450 | 44 |
GICL22 | 710000 | 950 | 340,360,380 | 550 | 450 | 960 | 840 | 632 | 13 | 44 | - | 278.07 | 26000 | 3036 |
400 | 650 | 450 |
GICL23 | 800000 | 900 | 360,380 | 550 | 450 | 1010 | 890 | 666 | 13 | 44 | - | 379.4 | 29000 | 3668 |
400,420 | 650 | 540 | 48 |
GICL24 | 1000000 | 875 | 380 | 550 | 450 | 1050 | 925 | 685 | 15 | 46 | - | 448.1 | 32000 | 3946 |
400,420,450 | 650 | 540 | 50 |
GICL25 | 1120000 | 850 | 400,420,450,480 | 650 | 540 | 1120 | 970 | 724 | 15 | 50 | - | 564.64 | 34000 | 4443 |
GICL26 | 1250000 | 825 | 420,450,480,500 | 650 | 540 | 1160 | 990 | 733 | 15 | 50 | - | 637.4 | 37000 | 4791 |
GICL27 | 1400000 | 800 | 450,480,500 | 650 | 540 | 1210 | 1060 | 739 | 15 | 50 | - | 866.26 | 45000 | 5758 |
530 | 800 | 680 |
GICL28 | 1600000 | 770 | 480,500 | 650 | 540 | 1250 | 1080 | 805 | 20 | 55 | - | 1020.76 | 47000 | 6232 |
530,560 | 800 | 680 |
GICL29 | 2240000 | 725 | 500 | 650 | 540 | 1340 | 1200 | 798 | 20 | 57 | - | 1450.84 | 50000 | 7549 |
530,560,600 | 800 | 680 |
GICL30 | 2800000 | 700 | 530,560,600,630 | 800 | 680 | 1390 | 1240 | 806 | 20 | 55 | - | 1974.17 | 59000 | 9514 |
