This shaft coupling is applicable to connecting two horizontal line shafting of coaxial line. The nominal transmittig torque is 0.71~1250KN·m.

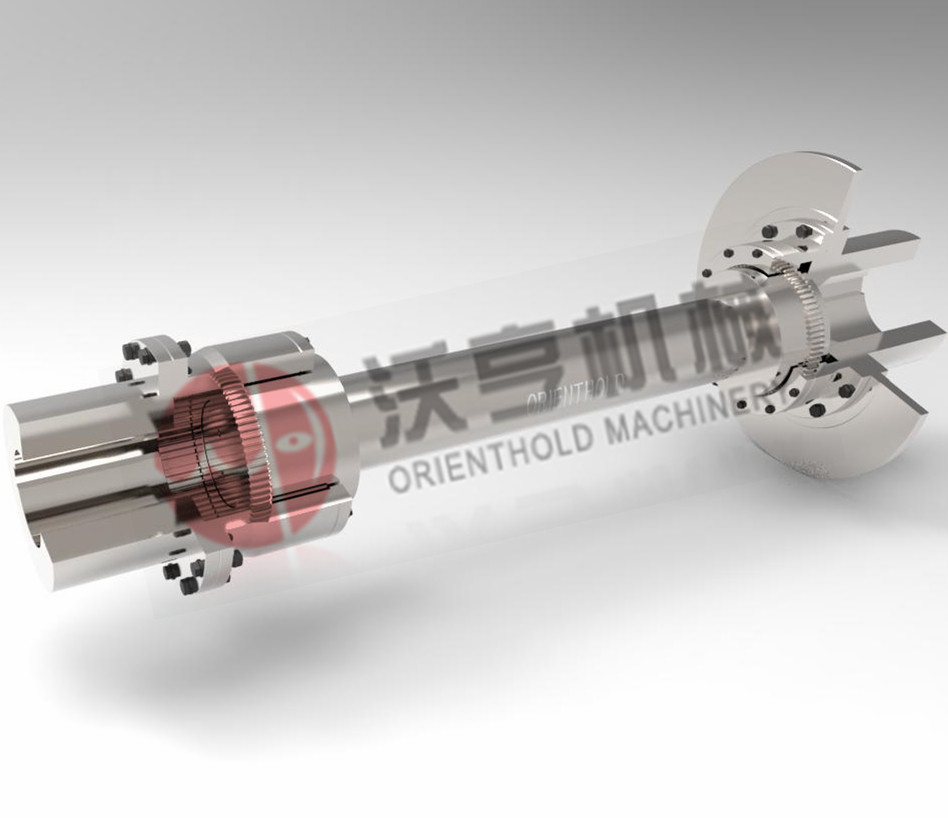

WGT type gear coupling is a rigid coupling, tooth coupling is constitutive of the same number of teeth and the outer ring of the flange with semi-coupling parts and other components. The outer teeth are divided into two kinds of teeth, such as straight teeth and drum teeth. The drum teeth are made of spherical teeth. The center of the spherical surface is on the gear axis, and the gap between the teeth is larger than that of the general gear. Allowing a larger angular displacement (relative to the straight coupling), can improve the contact conditions of the teeth, improve the transmission torque ability to extend the service life. Angular contact state along the tooth width. It has the advantages of compact structure, small radius of rotation, large carrying capacity, high transmission efficiency, low noise and long maintenance period.

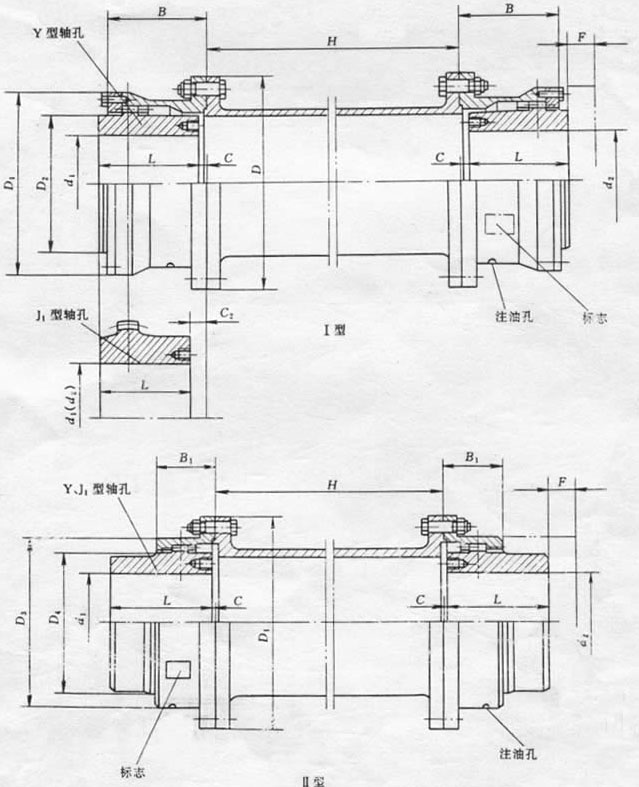

Model | Nominal torque Tn /N·m | Axis hole dia d1,d2 | Axis hole Length | D | D1 | D2 | D3 | D4 | B | B1 | F | H min | C | C1 | Weight /Kg | Moment of inertia /Kg·m2 | Grease/kg |
1 | 2 |
Y | J1 | 1 | 2 | 1 | 2 | 1 | 2 |
WGT1 | 710 | 12,14 | 32 | - | 122 | 115 | 98 | 88 | 60 | 58 | 50 | 30 | 75 | 30 | - | - | 5.66 | 4.86 | 0.008 | 0.0063 | 0.085 | 0.04 |
16,18,19 | 42 | - | 20 | 14 | - |
20,22,24 | 52 | - | 10 | 4 | - |
25,28 | 62 | 44 | 3 | 3 | 18 |
30,32,35,38 | 82 | 60 | 12 |
40,42 | 112 | 84 | 12 |
WGT2 | 1250 | 22,24 | 52 | - | 150 | 145 | 118 | 108 | 77 | 68 | 52 | 30 | 80 | 20 | 4 | - | 9.78 | 7.48 | 0.0021 | 0.0016 | 0.09 | 0.06 |
25,28 | 62 | - | 10 | 3 | - |
30,32,35,38 | 82 | 60 | 3 | 16 |
40,42,45,48,50,56 | 112 | 84 |
WGT3 | 2500 | 22,24 | 52 | - | 170 | 165 | 140 | 125 | 90 | 80 | 54 | 30 | 80 | 33 | 7 | - | 16.7 | 12.2 | 0.047 | 0.033 | 0.17 | 0.1 |
25,28 | 62 | - | 23 | 3 | - |
30,32,35,38 | 82 | 60 | 3 | 25 |
40,42,45,48,50,55,56 | 112 | 84 | 16 |
60,63 | 142 | 107 |
WGT4 | 4500 | 30,33,35,38 | 82 | - | 200 | 195 | 160 | 145 | 112 | 90 | 58 | 30 | 100 | 13 | 3 | - | 25.6 | 19.6 | 0.098 | 0.073 | 0.25 | 0.15 |
40,42,45,48,50,55,56 | 112 | 84 | 3 | 17 |
60,63,65,70,71,75 | 142 | 107 |
80 | 172 | 132 |
WGT5 | 7100 | 30,32,35,38 | 82 | - | 225 | 215 | 180 | 168 | 128 | 100 | 63 | 30 | 100 | 23 | 3 | - | 35 | 26.1 | 0.175 | 0.126 | 0.35 | 0.22 |
40,42,45,48,50,55,56 | 112 | 84 | 3 | 19 |
60,63,65,70,71,75 | 142 | 107 |
80,85,90 | 172 | 132 |
WGT6 | 10000 | 32,35,38 | 82 | - | 245 | 230 | 200 | 185 | 145 | 112 | 67 | 30 | 100 | 35 | 5 | - | 51.6 | 38 | 0.295 | 0.213 | 0.4 | 0.29 |
40,42,45,48,50,55,56 | 112 | - | 5 | - |
60,63,65,70,71,75 | 142 | 107 | 20 |
80,85,90,95 | 172 | 132 |
100 | 212 | 167 |
WGT7 | 14000 | 32,35,38 | 82 | - | 272 | 265 | 230 | 210 | 160 | 122 | 74 | 30 | 120 | 45 | 5 | - | 68.6 | 45 | 0.53 | 0.35 | 0.6 | 0.44 |
40,42,45,48,50,55,56 | 112 | - | 15 | - |
60,63,65,70,71,75 | 142 | 107 | 5 | 20 |
80,85,90,95 | 172 | 132 |
100,110 | 212 | 167 |
WGT8 | 20000 | 55,56 | 112 | - | 290 | 272 | 245 | 225 | 176 | 136 | 81 | 30 | 120 | 29 | 5 | - | 79.5 | 55.8 | 0.71 | 0.46 | 0.75 | 0.55 |
60,63,65,70,71,75 | 142 | 107 | 5 | 34 |
80,85,90,95 | 172 | 132 | 20 |
100,110,120,125 | 212 | 167 |
WGT9 | 25000 | 65,70,71,75 | 142 | 107 | 315 | 305 | 265 | 245 | 190 | 140 | 88 | 30 | 155 | 5 | 5 | 38 | 106.5 | 80.5 | 1.05 | 0.77 | 1 | 0.79 |
80,85,90,95 | 172 | 132 | 28 |
100,110,120,125 | 212 | 167 |
130,140 | 252 | 202 |
WGT10 | 40000 | 75 | 142 | - | 355 | 340 | 300 | 280 | 225 | 165 | 98 | 30 | 155 | 28 | 5 | - | 158.8 | 121.8 | 1.87 | 1.54 | 1.3 | 0.9 |
80,85,90,95 | 172 | 132 | 5 | 38 |
100,110,120,125 | 212 | 167 | 28 |
130,140,150 | 252 | 202 |
160 | 302 | 242 |
WGT11 | 56000 | 80,90,95 | 172 | - | 412 | 385 | 345 | 325 | 256 | 180 | 112 | 40 | 175 | 15 | 8 | - | 216.6 | 169.6 | 3.71 | 2.82 | 1.6 | 1.23 |
100,110,120,125 | 212 | 167 | 8 | 32 |
130,140,150 | 252 | 202 |
160,170,180 | 302 | 242 |
WGT12 | 80000 | 120,125 | 212 | 167 | 440 | 435 | 375 | 360 | 288 | 210 | 125 | 40 | 205 | 8 | 8 | 45 | 305.3 | 245.3 | 6.43 | 4.84 | 2.6 | 1.9 |
130,140,150 | 252 | 202 | 32 |
160,170,180 | 302 | 242 |
190,200 | 352 | 282 |
WGT13 | 112000 | 140,150 | 252 | 202 | 490 | 480 | 425 | 400 | 320 | 235 | 136 | 50 | 205 | 8 | 8 | 38 | 394.5 | 313.5 | 10.58 | 7.9 | 3.3 | 2.4 |
160,170,180 | 302 | 242 | 32 |
190,200,220 | 352 | 282 |
WGT14 | 160000 | 160,170,180 | 302 | 242 | 545 | 540 | 462 | 440 | 362 | 265 | 158 | 50 | 240 | 10 | 10 | 32 | 529.5 | 430.5 | 17.72 | 13.78 | 4.8 | 3.7 |
190,200,220 | 352 | 282 |
240,250,260 | 410 | 330 | 10 |
WGT15 | 224000 | 160,170,180 | 302 | 242 | 580 | - | 488 | - | 400 | 280 | - | 50 | 240 | 10 | - | 43 | 684.5 | - | 25.25 | - | 5 | - |
190,200,220 | 352 | 282 | 32 |
240,250,260 | 410 | 330 | 10 |
280 | 470 | 380 |
WGT16 | 280000 | 180 | 302 | 242 | 650 | - | 560 | - | 440 | 300 | - | 50 | 240 | 12 | - | 63 | 948.2 | - | 43.7 | - | 7 | - |
190,200,220 | 352 | 282 | 32 |
240,250,260 | 410 | 330 | 12 |
280,300 | 470 | 380 |
WGT17 | 355000 | 200,220 | 352 | 282 | 690 | - | 600 | - | 460 | 325 | - | 50 | 280 | 12 | - | 48 | 1059 | - | 57.37 | - | 8 | - |
240,250,260 | 410 | 330 | 12 |
280,300,320 | 470 | 380 |
WGT18 | 450000 | 220 | 352 | 282 | 750 | - | 650 | - | 510 | 350 | - | 60 | 280 | 12 | - | 73 | 1399 | - | 59.37 | - | 10 | - |
240,250,260 | 410 | 330 | 12 |
280,300,320 | 470 | 380 |
340,360 | 550 | 450 |
WGT19 | 560000 | 240,250,260 | 410 | 330 | 775 | - | 690 | - | 535 | 372 | - | 60 | 350 | 12 | - | 12 | 1544 | - | 110.2 | - | 11 | - |
280,300,320 | 470 | 380 |
340,360,380 | 550 | 450 |
WGT20 | 710000 | 260 | 410 | 330 | 825 | - | 730 | - | 580 | 392.5 | - | 60 | 350 | 14 | - | 14 | 2099 | - | 166.1 | - | 13 | - |
280,300,320 | 470 | 380 |
340,360,380 | 550 | 450 |
400 | 650 | 540 |
WGT21 | 800000 | 280,300,320 | 470 | 380 | 925 | - | 825 | - | 620 | 405 | - | 60 | 350 | 14 | - | 14 | 2482 | - | 242.7 | - | 20 | - |
340,360,380 | 550 | 450 |
400,420,440 | 650 | 540 |
WGT22 | 900000 | 320 | 470 | 380 | 950 | - | 850 | - | 665 | 410 | - | 60 | 400 | 14 | - | 14 | 2797 | - | 299.2 | - | 26 | - |
340,360,380 | 550 | 450 |
400,420,440,450,460 | 650 | 540 |
WGT23 | 1000000 | 360,380 | 550 | 450 | 1030 | - | 900 | - | 710 | 440 | - | 60 | 400 | 14 | - | 14 | 3183 | - | 388.8 | - | 29 | - |
400,420,440,450,460,480,500 | 650 | 540 |
WGT24 | 1250000 | 380 | 550 | 450 | 1060 | - | 925 | - | 730 | 450 | - | 70 | 400 | 16 | - | 16 | 3801 | - | 482 | - | 32 | - |
400,420,440,450,460,480,500 | 650 | 540 |
520 | 800 | 680 |
|
