Prod Model: |
MJ6113TZ |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Gross Cut Capacity: |
1300mm |
Saw Blade: |
300mm |
Height Of Cut: |
70mm |
Speed Of Main Saw Blade: |
4000/6000rpm |
Type: |
Table Panel Saw |
Layout: |
Vertical |
Controlling Mode: |
Artificial |
Automatic Grade: |
Manual |
Precision: |
High Precision |
Certification: |
CE |
Product Description

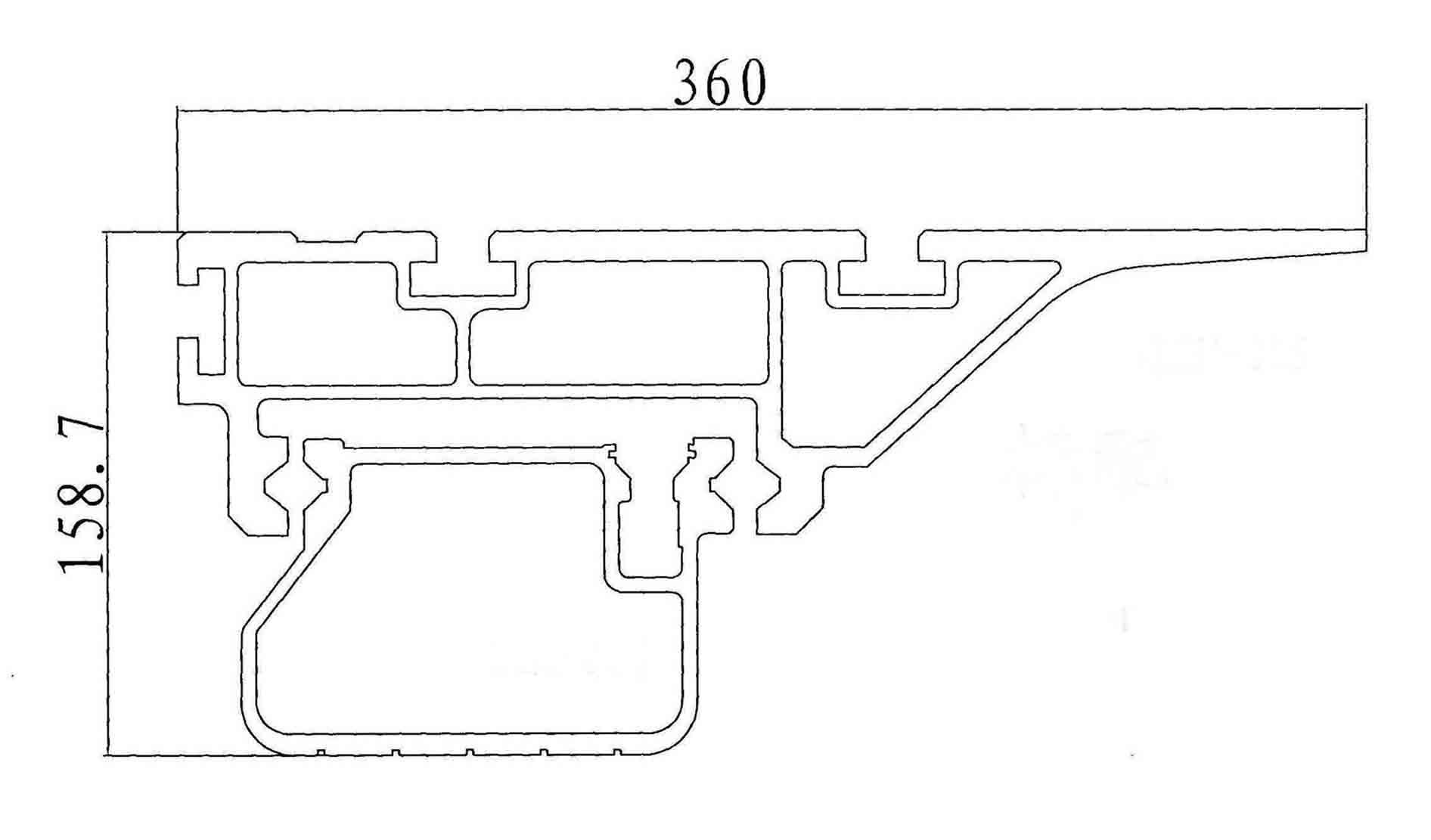

01) Dimensions sliding table: 1300X360mm |
02) Gross cut capacity: 1300mm |
03) Width of cut between saw blade and rip fence: 900mm |
04) Saw blade φ: 300mm(φ250-φ300) |
05) Height of cut φ300mm: 70mm |
06) Speed of main saw blade: 4000/6000rpm |
07) Spindle diameter: 30mm |
08) Tilling saw blade: 45degree |
09) Main motor: 3kw |
10) Scoring saw blade: 120mm |
11) Speed of scoring saw blade: 8000r/min |
12) Spindle of scoring saw: 20mm |
13) Motor: 0.75kw |
14) Net weight: 400kgs |
15) Gross weight (wooden packing case): 480kgs |
16) Overall dimensions: 1350X2450X900mm |
01) Dimensions sliding table: 1300X360mm
02) Gross cut capacity: 1300mm03) Width of cut between saw blade and rip fence: 900mm
04) Saw blade φ: 300mm(φ250-φ300)
05) Height of cut φ300mm: 70mm
06) Speed of main saw blade: 4000/6000rpm
07) Spindle diameter: 30mm
08) Tilling saw blade: 45degree
09) Main motor: 3kw
10) Scoring saw blade: 120mm
11) Speed of scoring saw blade: 8000r/min
12) Spindle of scoring saw: 20mm
13) Motor: 0.75kw
14) Net weight: 400kgs
15) Gross weight (wooden packing case): 480kgs
16) Overall dimensions: 1350X2450X900mm
