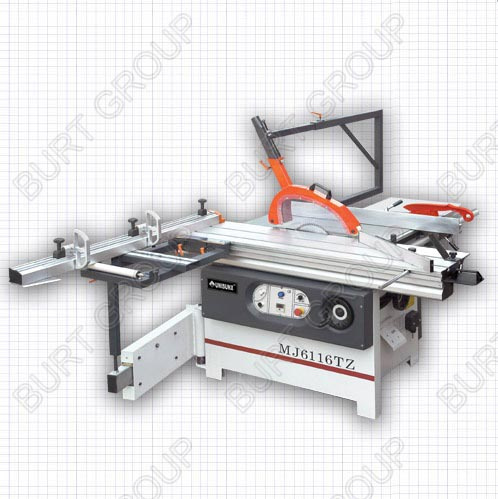

Panel Saw with 1600mm Sliding Table (MJ6116TZ)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
MJ6116TZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gross Cut Capacity: |
1600mm |
| Dimensions Sliding Table: |
1600×360mm |
| Spindle Diameter: |
30mm |
| Tilling Saw Blade: |
45° |
| Scoring Saw Blade: |
120mm |
| Saw Blade: |
300mm |
| Type: |
Table Panel Saw |
| Layout: |
Vertical |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
| Certification: |
CE |
Product Description

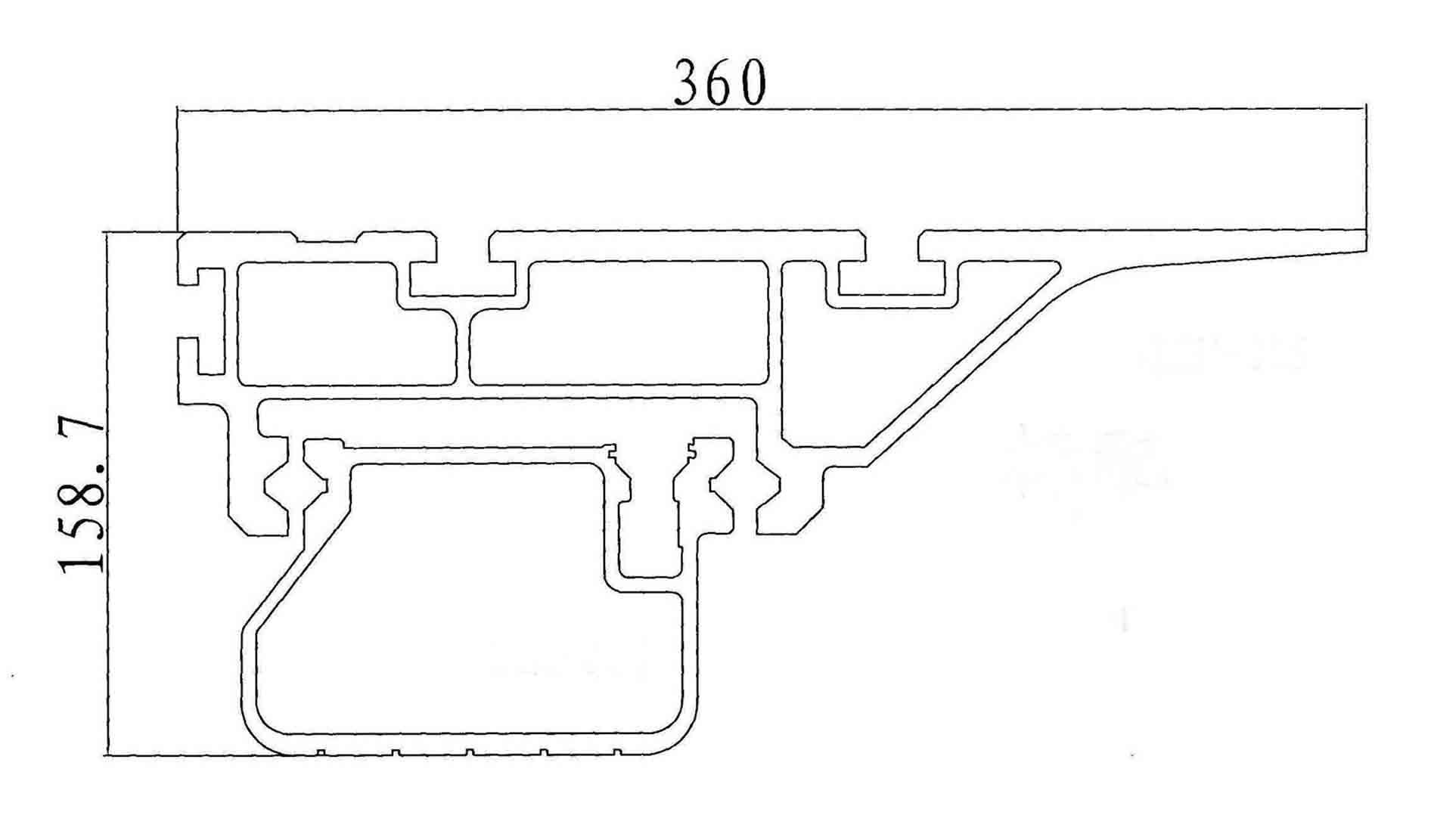

| 01) Dimensions sliding table:1600×360mm |
| 02) Gross cut capacity:1600mm |
| 03) Width of cut between saw blade and rip fence:900mm |
| 04) Saw blade φ:300mm(φ250-φ300) |
| 05) Height of cut φ300mm:70mm |
| 06) Speed of main saw blade:4000/6000rpm |
| 07) Spindle diameter:30mm |
| 08) Tilling saw blade:45° |
| 09) Main motor:3kw |
| 10) Scoring saw blade:120mm |
| 11) Speed of scoring saw blade:8000r/min |
| 12) Spindle of scoring saw:20mm |
| 13) Motor:0.75kw |
| 14) Net weight:410kgs |
| 15) Gross weight (wooden packing case):490kgs |
| 16) Overall dimensions:1650×2450×900mm |
01) Dimensions sliding table:1600×360mm
02) Gross cut capacity:1600mm
03) Width of cut between saw blade and rip fence:900mm
04) Saw blade φ:300mm(φ250-φ300)
05) Height of cut φ300mm:70mm
06) Speed of main saw blade:4000/6000rpm
07) Spindle diameter:30mm
08) Tilling saw blade:45°
09) Main motor:3kw
10) Scoring saw blade:120mm
11) Speed of scoring saw blade:8000r/min
12) Spindle of scoring saw:20mm
13) Motor:0.75kw
14) Net weight:410kgs
15) Gross weight (wooden packing case):490kgs
16) Overall dimensions:1650×2450×900mm
