Prod Model: |
MJ6118TZ |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Gross Cut Capacity: |
1600mm |
Dimensions Sliding Table: |
1800X360mm |
Saw Blade: |
300mm |
Spindle Diameter: |
30mm |
Type: |
Table Panel Saw |
Layout: |
Vertical |
Controlling Mode: |
Artificial |
Automatic Grade: |
Manual |
Precision: |
High Precision |
Certification: |
CE |
Product Description

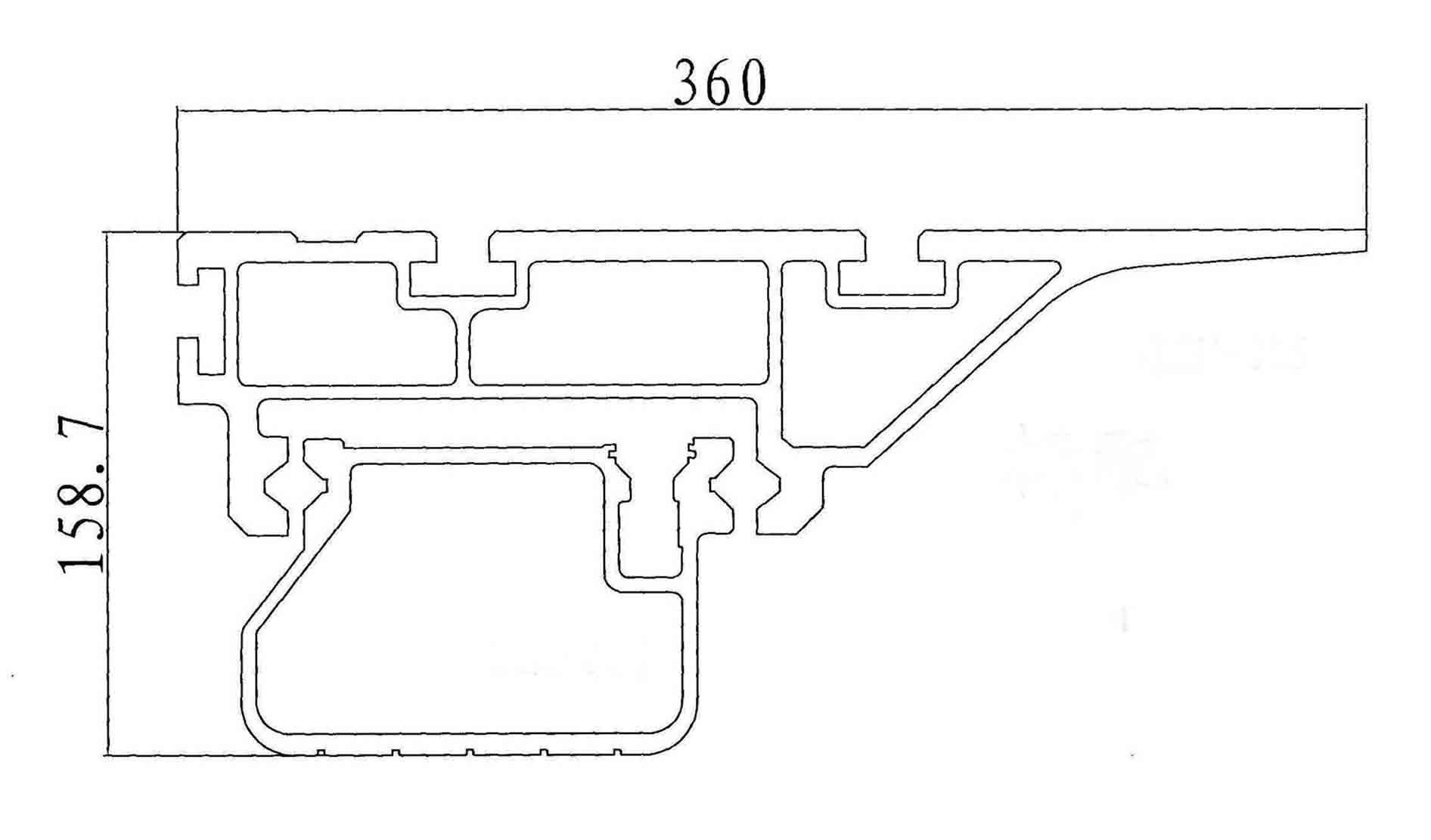

01) Dimensions sliding table:1800×360mm |
02) Gross cut capacity:1800mm |
03) Width of cut between saw blade and rip fence:900mm |
04) Saw blade φ:300mm(φ250-φ300) |
05) Height of cut φ300mm:70mm |
06) Speed of main saw blade:4000/6000rpm |
07) Spindle diameter:30mm |
08) Tilling saw blade:45° |
09) Main motor:3kw |
10) Scoring saw blade:120mm |
11) Speed of scoring saw blade:8000r/min |
12) Spindle of scoring saw:20mm |
13) Motor:0.75kw |
14) Net weight:430kgs |
15) Gross weight (wooden packing case):510kgs |
16) Overall dimensions:1850×2450×900mm |
01) Dimensions sliding table:1800×360mm
02) Gross cut capacity:1800mm
03) Width of cut between saw blade and rip fence:900mm
04) Saw blade φ:300mm(φ250-φ300)
05) Height of cut φ300mm:70mm
06) Speed of main saw blade:4000/6000rpm
07) Spindle diameter:30mm
08) Tilling saw blade:45°
09) Main motor:3kw
10) Scoring saw blade:120mm
11) Speed of scoring saw blade:8000r/min
12) Spindle of scoring saw:20mm
13) Motor:0.75kw
14) Net weight:430kgs
15) Gross weight (wooden packing case):510kgs
16) Overall dimensions:1850×2450×900mm
