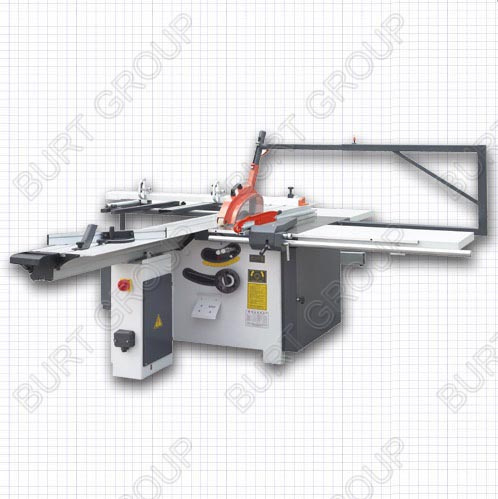

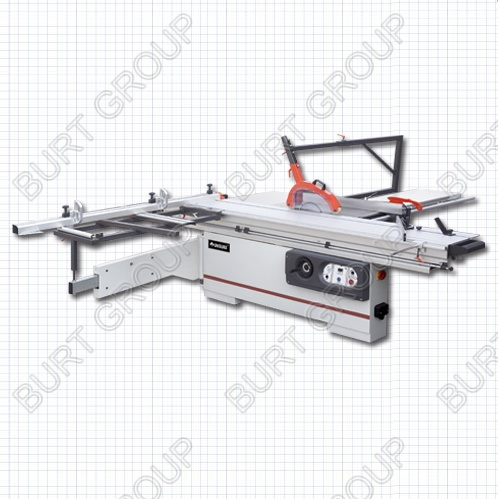

Panel Saw with 3200mm Sliding Table (MJ6132TY)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
MJ6132TY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gross Cut Capacity: |
3200mm |
| Type: |
Table Panel Saw |
| Layout: |
Vertical |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
| Certification: |
CE |
Product Description

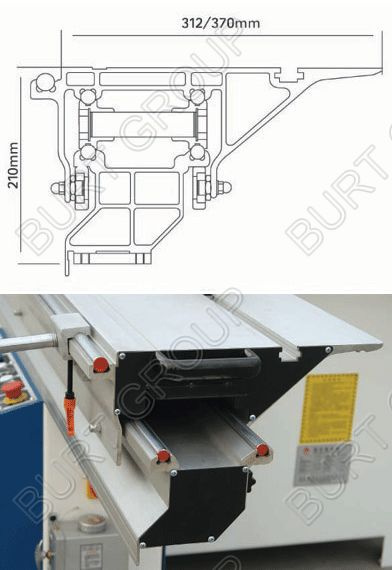

01) Dimensions sliding table:3200×370mm
02) Gross cut capacity:3200mm
03) Width of cut between saw blade and rip fence:1250mm
04) Standard accessory Saw blade φ:300mm(Capacity φ250-φ315)
05) Height of cut with saw blade φ315mm at 90°:95mm
06) Height of cut with saw blade φ300mm at 45°:55mm
07) Speed of main saw blade:4000/6000rpm
08) Spindle diameter:30mm
09) Tilling saw blade:0-45°
10) Main motor:4kw
11) Scoring saw blade:120mm
12) Speed of scoring saw blade:8000r/min
13) Spindle of scoring saw:20mm
14) Motor:0.75kw
15) Net weight:700kgs
16) Gross weight (wooden packing case):850kgs
17) Overall dimensions:3250×3150×900mm
* Y style sliding table fitted as standard
| 01) Dimensions sliding table:3200×370mm |
| 02) Gross cut capacity:3200mm |
| 03) Width of cut between saw blade and rip fence:1250mm |
| 04) Standard accessory Saw blade φ:300mm(Capacity φ250-φ315) |
| 05) Height of cut with saw blade φ315mm at 90°:95mm |
| 06) Height of cut with saw blade φ300mm at 45°:55mm |
| 07) Speed of main saw blade:4000/6000rpm |
| 08) Spindle diameter:30mm |
| 09) Tilling saw blade:0-45° |
| 10) Main motor:4kw |
| 11) Scoring saw blade:120mm |
| 12) Speed of scoring saw blade:8000r/min |
| 13) Spindle of scoring saw:20mm |
| 14) Motor:0.75kw |
| 15) Net weight:700kgs |
| 16) Gross weight (wooden packing case):850kgs |
| 17) Overall dimensions:3250×3150×900mm |
· About the Burt Group:
Established in 1993, we produce full range of woodworking machinery, metal cutting band saws and metal grinding machines. We have over 24 years of exporting experience in this field, so we are familiar with the needs of international buyers.
· Our Structure:
As a cooperate group, we comprise 8 separate companies (joint-stock cooperated):
-Qingdao Burt International Trading Co. Ltd (Our parent company)
-Laizhou Planet Machinery Co. Ltd
-Laizhou Burt Machinery Co. Ltd
-Laizhou Chunlin Machinery Co. Ltd
-Laizhou Xintian Machinery Co. Ltd
-Laizhou Tongtai Machinery Co. Ltd
-Laizhou Songchang-Burt Tools Co. Ltd
-Qingdao Unisunx-Burt Woodworking Machinery Co. Ltd
With our 7 joint-stock cooperated factories we have been able to establish a strong and diverse manufacturing base in Shandong province that is the bench machinery production hub in Mainland China.
· Total In-house Production:
Together, our 7 factories have a total of 91, 500 square meters of workshop space, 27 production lines and more than 800 employees at present. Our 27 automated and semi-automated production lines turn out up to 20, 000 woodworking /metalworking machines every month. And our 53 QC specialists inspect your order at every stage of production. We have our own compete production chain from the very foundry to the final assembly, even logistics center. In this way, we can efficiently and strictly control both the quality and the cost.
We are ISO 9001: 2000-certified and our products carry CE, GS, CSA and C-UL approvals. You are always welcome to visit us at any time, so that you can see truly our capacity and quality level.
· OEM/ODM Ability:
Our R&D team has an average of 20 years of experience. They give each of our products a robust design and attractive appearance that will be sure to stand out on your store or workshop.
Double-position shell molding machines and precise Italian made coordinate measuring machine (COORD3 CMM) give excellent support to casting project cooperation.
· Our Brands:
BURT is our company brand.
PLANET is our main brand for products.
UNISUNX is our brand for the panel saws.
For more information please visit our web site www.burt-group.com.cn and e-mail us today.
