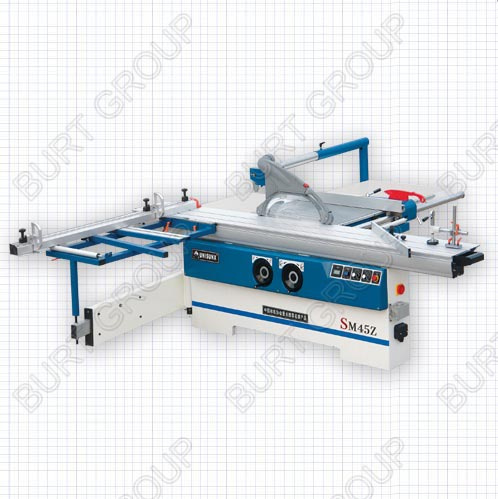

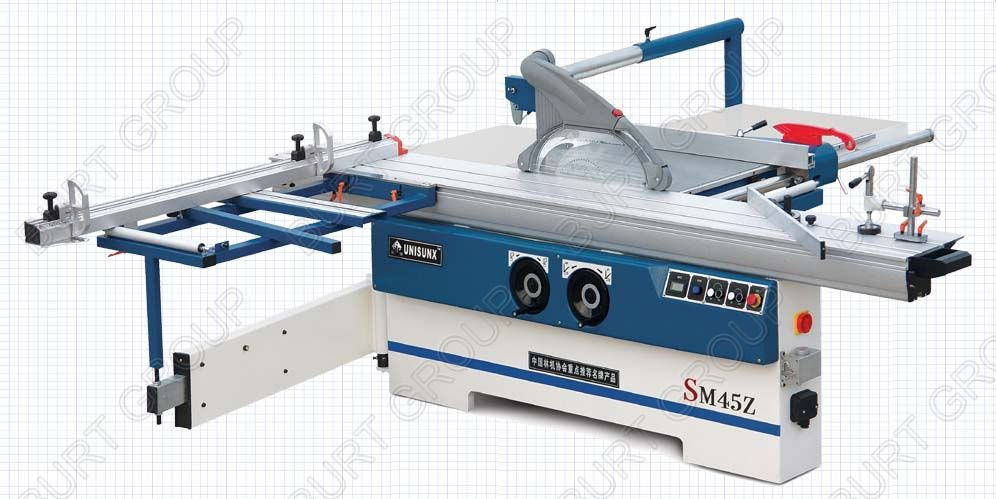

Panel Saw with 3200mm Sliding Table (SM45Z)

Name: Panel Saw with 3200mm Sliding Table (SM45Z)
Brand: tool-buy.com
SKU: 662196531
Availability: InStock
Rating: 4.9 (75 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	5/Piece
Pay Type:	L/C,T/T

Contact Supplier

Burt Group Co., Ltd.

Showroom Product Company Profile

Prod Model:	SM45Z
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gross Cut Capacity:	3200mm
Type:	Table Panel Saw
Layout:	Horizontal
Controlling Mode:	Artificial
Automatic Grade:	Semiautomatic
Precision:	High Precision
Certification:	CE

Product Description

01) Dimensions sliding table: 3200× 360mm

02) Gross cut capacity: 3200mm

03) Width of cut between saw blade and rip fence: 1250mm

04) Saw blade φ : 300mm(φ 250-φ 350)

05) Height of cut φ 300mm: 80mm

06) Diameter of guide shaft spindle: 50mm

07) Height of cut with saw blade φ 300mm at 45° : 55mm

08) Speed of main saw blade: 3000/4600/5600rpm

09) Spindle diameter: 30mm

10) Tilling saw blade: 0-45°

11) Main motor: 4KW/5.5KW

12) Scoring saw blade: 120mm

13) Speed of scoring saw blade: 8000r/min

14) Spindle of scoring saw: 20mm

15) Motor: 0.75kw

16) Net weight: 640kg

17) Gross weight (wooden packing case): 790kg

18) Overall dimensions: 3250x3250x900mm

01) Dimensions sliding table: 3200× 360mm
02) Gross cut capacity: 3200mm
03) Width of cut between saw blade and rip fence: 1250mm
04) Saw blade φ : 300mm(φ 250-φ 350)
05) Height of cut φ 300mm: 80mm
06) Diameter of guide shaft spindle: 50mm
07) Height of cut with saw blade φ 300mm at 45° : 55mm
08) Speed of main saw blade: 3000/4600/5600rpm
09) Spindle diameter: 30mm
10) Tilling saw blade: 0-45°
11) Main motor: 4KW/5.5KW
12) Scoring saw blade: 120mm
13) Speed of scoring saw blade: 8000r/min
14) Spindle of scoring saw: 20mm
15) Motor: 0.75kw
16) Net weight: 640kg
17) Gross weight (wooden packing case): 790kg
18) Overall dimensions: 3250x3250x900mm
Main Features and Standard fitting:
01) 50mm diameter Guide shaft spindle
02) Full size extentioin tables in right side and rear side
03) Lubrication pump
04) Support feeding frame
05) 2ND generation front control panel hood
06) Type-E protection hood
07) Advanced LED readout
08) Main motor 5.5KW
09) Scoring motor 0.75KW
10) Hold down clamp
11) Manual tilting 45 degree
12) Max saw blade 400mm
13) Double scoring saw blade
14) Cylindrical direct guide up/down structure
15) Turbo gear tilting structure

· About the Burt Group:

Established in 1993, we produce full range of woodworking machinery, metal cutting band saws and metal grinding machines. We have over 24 years of exporting experience in this field, so we are familiar with the needs of international buyers.

· Our Structure:

As a cooperate group, we comprise 8 separate companies (joint-stock cooperated):

-Qingdao Burt International Trading Co. Ltd (Our parent company)

-Laizhou Planet Machinery Co. Ltd

-Laizhou Burt Machinery Co. Ltd

-Laizhou Chunlin Machinery Co. Ltd

-Laizhou Xintian Machinery Co. Ltd

-Laizhou Tongtai Machinery Co. Ltd

-Laizhou Songchang-Burt Tools Co. Ltd

-Qingdao Unisunx-Burt Woodworking Machinery Co. Ltd

With our 7 joint-stock cooperated factories we have been able to establish a strong and diverse manufacturing base in Shandong province that is the bench machinery production hub in Mainland China.

· Total In-house Production:

Together, our 7 factories have a total of 91, 500 square meters of workshop space, 27 production lines and more than 800 employees at present. Our 27 automated and semi-automated production lines turn out up to 20, 000 woodworking /metalworking machines every month. And our 53 QC specialists inspect your order at every stage of production. We have our own compete production chain from the very foundry to the final assembly, even logistics center. In this way, we can efficiently and strictly control both the quality and the cost.

We are ISO 9001: 2000-certified and our products carry CE, GS, CSA and C-UL approvals. You are always welcome to visit us at any time, so that you can see truly our capacity and quality level.

· OEM/ODM Ability:

Our R&D team has an average of 20 years of experience. They give each of our products a robust design and attractive appearance that will be sure to stand out on your store or workshop.

Double-position shell molding machines and precise Italian made coordinate measuring machine (COORD3 CMM) give excellent support to casting project cooperation.

· Our Brands:

BURT is our company brand.

PLANET is our main brand for products.

UNISUNX is our brand for the panel saws.

For more information please visit our web site www.burt-group.com.cn and e-mail us today.
