Prod Model: |
SMJ6132TZ |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Gross Cut Capacity: |
200mm |
Width Of Cut: |
1250mm |
Saw Blade: |
300mm |
Type: |
Table Panel Saw |
Layout: |
Horizontal |
Controlling Mode: |
Artificial |
Automatic Grade: |
Semiautomatic |
Precision: |
Precision |
Certification: |
CE |

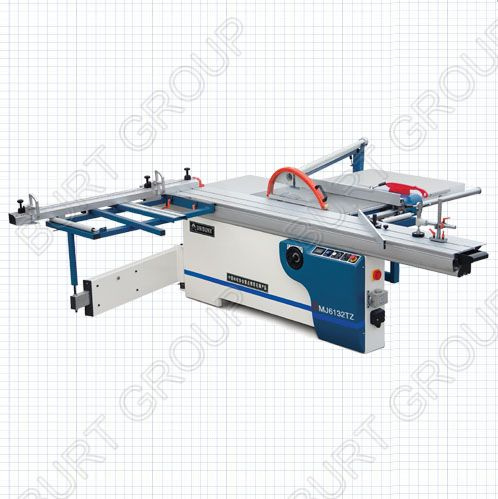

Product Description
01) Dimensions sliding table: 3200x360mm |
02) Gross cut capacity: 3200mm |
03) Width of cut between saw blade and rip fence: 1250mm |
04) Saw blade φ : 300mm(φ 250-φ 300) |
05) Height of cut φ 300mm: 80mm |
06) Diameter of guide shaft spindle: 50mm |
07) Height of cut with saw blade φ 300mm at 45° : 55mm |
08) Speed of main saw blade: 4000/6000rpm |
09) Spindle diameter: 30mm |
10) Tilling saw blade: 0-45° |
11) Main motor: 4/5.5KW |
12) Scoring saw blade: 120mm |
13) Speed of scoring saw blade: 8000r/min |
14) Spindle of scoring saw: 20mm |
15) Motor: 0.75kw |
16) Net weight: 640kg |
17) Gross weight (wooden packing case): 790kg |
18) Overall dimensions: 3250x3250x900mm |
01) Dimensions sliding table: 3200x360mm
02) Gross cut capacity: 3200mm
03) Width of cut between saw blade and rip fence: 1250mm
04) Saw blade φ : 300mm(φ 250-φ 300)
05) Height of cut φ 300mm: 80mm
06) Diameter of guide shaft spindle: 50mm
07) Height of cut with saw blade φ 300mm at 45° : 55mm
08) Speed of main saw blade: 4000/6000rpm
09) Spindle diameter: 30mm
10) Tilling saw blade: 0-45°
11) Main motor: 4/5.5KW
12) Scoring saw blade: 120mm
13) Speed of scoring saw blade: 8000r/min
14) Spindle of scoring saw: 20mm
15) Motor: 0.75kw
16) Net weight: 640kg
17) Gross weight (wooden packing case): 790kg
18) Overall dimensions: 3250x3250x900mm
