| Prod Model: |
PC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue, White, Yellow, Red, Orange |
| Size: |
4 to 16mm |
| Thread: |
M5 to 1/2" |
| Shape: |
T, L, V, E, Y, W |

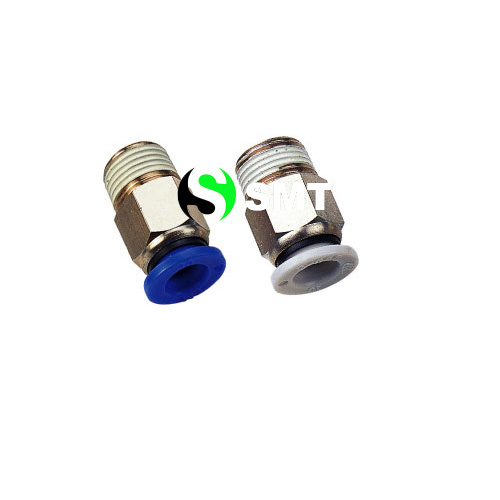

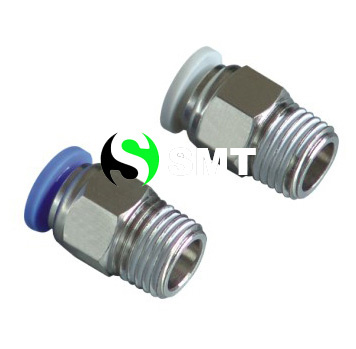

Product Description
Applications:*One touch type connection tool for air pressure piping.
*Various uses depending on the user's environment.
Features:*One-Touch push-to-connect configuration allows an instant tubing connection.
*Smooth-Edge release sleeve design facilitates a quick tubing disconnection
*Aesthetically pleasing nickel-plated metallic optional feature ensures anti-containation
Properties of an extended product lift.
*Pre-applied sealant on all external threads eliminates the additional sealing requirement.
*Internal and/or external flat-to&flat hexagonal configurations for both metric and inch specifications
Allow a proper tightening or directional orientation upon installation by using L key or allen wrench
For the applicable model types.
Specifications:*Fluid Type: Air(No other gases or liquids)
*Working Pressure: 0-150Psi
*Negative pressure: -29.5 in Hg
*Working temperature: 32 -140° F / 0-60
*Applicable Tube: Polyurethane, Polyethylene and Nylon
Company frofileOur company is specialized in manufactuing all kinds of valves, hydro-pneumatic components, alumium parts and plastic parts. Our main products are including pneumatic cylinder, solenoid valve, air filter, air regulator, air lubricator, pneumatic fitting, hydraulic fitting, tubes etc. As below;
*ISO Standard Cylinder: DNC/SI(ISO6431&6432)
*Standard Cylinder: SC/SU,
*Mini Cylinder: MAL, MA, , MI, CJ2B, CDM2B
*Compact Cylinder: SDA, CQ2
*Cylinder: CU, TN, STM, MGP
*Solenoid Valve: 3v1, 3v, 4v, 4M, 3A, 4A, etc
*Air Source Treatment Unit: A, HA, HNA, T, A/B, etc
*pneumatic accessories: Fitting, hand valve, muffler, tube, pressure switch
| MODEL(ΦD-T) |
| Tube(Metric)-Thread(R) | Tube(Inch)-Thread(R) | Tube(Inch)-Thread(NPT) |
| PC 4-M5 | PC 6-04 | PC 10-04 | PC 5/32-01 | PC 5/16-04 | PC 5/32-N1 | PC 5/16-N4 |
| PC 4-M6 | PC 8-01 | PC 12-01 | PC 5/32-02 | PC 3/8-01 | PC 5/32-N2 | PC 3/8-N1 |
| PC 4-01 | PC 8-02 | PC 12-02 | PC 1/4-01 | PC 3/8-02 | PC 1/4-N1 | PC 3/8-N2 |
| PC 4-02 | PC 8-03 | PC 12-03 | PC 1/4-02 | PC 3/8-03 | PC 1/4-N2 | PC 3/8-N3 |
| PC 6-M5 | PC 8-04 | PC 14-03 | PC 1/4-03 | PC 3/8-04 | PC 1/4-N3 | PC 3/8-N4 |
| PC 6-M6 | PC 10-01 | PC 14-03 | PC 1/4-04 | PC 1/2-01 | PC 1/4-N4 | PC 1/2-N1 |
| PC 6-01 | PC 10-01 | PC 16-03 | PC 5/16-01 | PC 1/2-02 | PC 5/16-N1 | PC 1/2-N2 |
| PC 6-02 | PC 10-02 | PC 16-04 | PC 5/16-02 | PC 1/2-03 | PC 5/16-N2 | PC 1/2-N3 |
| PC 6-03 | PC 10-03 | | PC 5/16-03 | PC 1/2-04 | PC 5/16-N3 | |
