| Prod Model: |
PD-90 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Available Rigidity Rock: |
F=6-16 |
| Drill Scope: |
27-64mm |
| Drill Speed: |
500-1000mm/Min |
| Lowest Horizontal Hole Height: |
250mm |
| Once Propel Travel: |
3m |
| Compressor Type: |
1.8m3-3.2m3 |
| Drifter Weight: |
90kg |
| Whole Weight: |
1.2t |
| Type: |
Crawler Excavator |
| Size: |
Medium-Sized |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
| Bucket: |
Driller |
Product Description
Description:

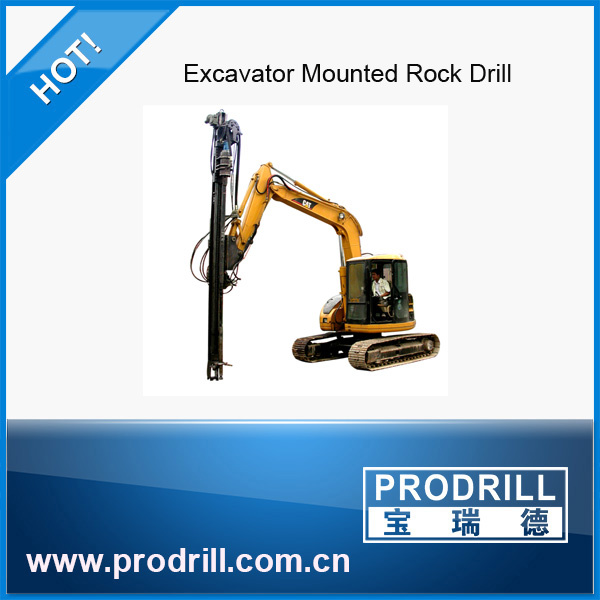

the PD-90 Excavator Mounted Drill is a hi-tech product driven by high-pressure hydraulic oil. It adopts advanced technologies and innovative structure, featuring low energy consumption, small size, light weight, huge impact energy, fast drilling, low noise, little vibration, trivial labor intensity. It is widely applied to rock drilling of marble, granite, metal, non-metal and coal mines.
| products type | PD-Y90 |
| available rigidity rock | F=6-20 |
| drill scope | 38-89mm |
| drill speed | 500-1000mm/min |
| lowest horizontal hole height | 250mm |
| once propel travel | 3m |
| oil pressure | ≤19Mpa |
| compressor type | 1.8m3-3.2m3 |
| size | 7488*140*252mm |
| drifter weight | 115kg |
| whole weight | 1.2t |
Our main products are as below:
Construction & Mining & Rock Drill Tools:
1). DTH Hammer and Bit (2''-24''), Overburden Drilling System; RC System; Hydraulic Breaker Hammer (4 ~ 20ton)
2). Top Hammer (drill hole dia.: 33 ~ 152mm):
a) Thread Tools (Button Bits, Rod, Coupling, Shank Adaptor): (R25/28/32/38, T38/45/51, ST58,GT60)
b) High Rang Soundless Cracking Agent (dia. 40 ~ 50mm), High Range Grout, (Expansive Mortar Grade A)
Quarrying Drill Tools (drill hole dia.: 17 ~ 45mm):
1) Taper Drill Tools (Bit: button/chisel; Rod: Tapered/Integral), Carbide Tips, Segment, Grinding Wheel, Grinder/Grinding machine, Grinding Cup, Grinding Pin;
3) Pneumatic Rock Drill: Handheld (Y10, Y18, Y20, Y24, TY24C), Airleg (YT28, YT29A) and Gasoline (YN27C, YN27J);
4) Expansive Mortar (dia. 30 ~ 35mm), Expansive Grout, Soundless Cracking Agent, Rock Breaking Chemical;
Hydraulic Rock Splitter PD40-250, Aluminum or Steel Cylinder;
5) Air Pushing Bag, Water Bag; Pneumatica Splitter G10, Hand Splitter, etc
We are not the biggest one of career field, but we are sincere and specialist.Our products is stable,best in quality and reasonable in price. Because of this main point,we have gained the good reputation from our customers all around the world.
Xiamen PRO Drill Equipment Co., Ltd is a specialized company of Rock Tools, which is experienced in developing and manufacturing Top hammer and DTH rock drilling equipments. The main products include high, medium and low air pressure DTH hammers and bits, Symmetric and eccentric overburden advanced casing drilling tools, and Threaded button bits, Drill rods and Couplings, also
Air grinder for button bit, chisel bit, Diamond grinding cup for cemented carbide
Reconditions and sharpener.
PRO Drill Rock Tools can be perfectly matched with the world famous brand such as Atlas Copco, Sandvik, Ingersoll-Rand and other well-known manufacturers' Drill rigs and they are widely applied to varies of areas including blast holes, earthwork projects, mineral exploration, water-well, construction, geo-thermal exploration.
PRO Drill plants has introduced the most advanced manufacturing equipments and technology in the world, such as Electro-hydraulic forging hammers for forging process, Germany atmosphere-controllable sealed quench furnace for heat treatment, Super CNC machines and Processing Centre for accurate finishing and experienced staff in metal machining all contribute to the high performance rock tools.
In response to the demand from dimensional stone quarry, we also offer all kinds of splitting, pushing and grinding tools like Expansive Mortar, Soundless Cracking Agent Shims and Wedges, Hydraulic Rock Splitter, Cyliner Type Rock splitter, Hydro bag, Air Pushing Bag and Cemented Grinding Stone are available as integral services working for the worldwide quarry owners.
Our believe that innovative think drives the delivery of quality rock tools to customers, . Prodrill rock drilling tools are renowned for their great reliability, excellent and even quality and long services life with an expertise direct to any corner of the world.
We are committed for groundbreaking solution of drilling and Splitting & cutting for your unique operation in quarrying, mining and construction project. Looking forward to hearing from your enquiry.
