| Prod Model: |
PE-CUT-A2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: |
1.5*3m |
| Power: |
100A |
| Material: |
Ss, CS and Iron |
| Cutting Thickness: |
10mm |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Point to Point Control |
| Control Method: |
Semi-Closed Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
Mid-Range CNC Machine Tools |
Product Description
The standard working area is: 3Mx6M or 4Mx6M. Due to the length of vertical rail can be chosen by users, so the optional working area is 3x3*N Meter/4x3*N Meter (N means multiple, and optional working area will be charged additionally). All of these adopt dual-driving and according to users' demand, we can provide different devices.

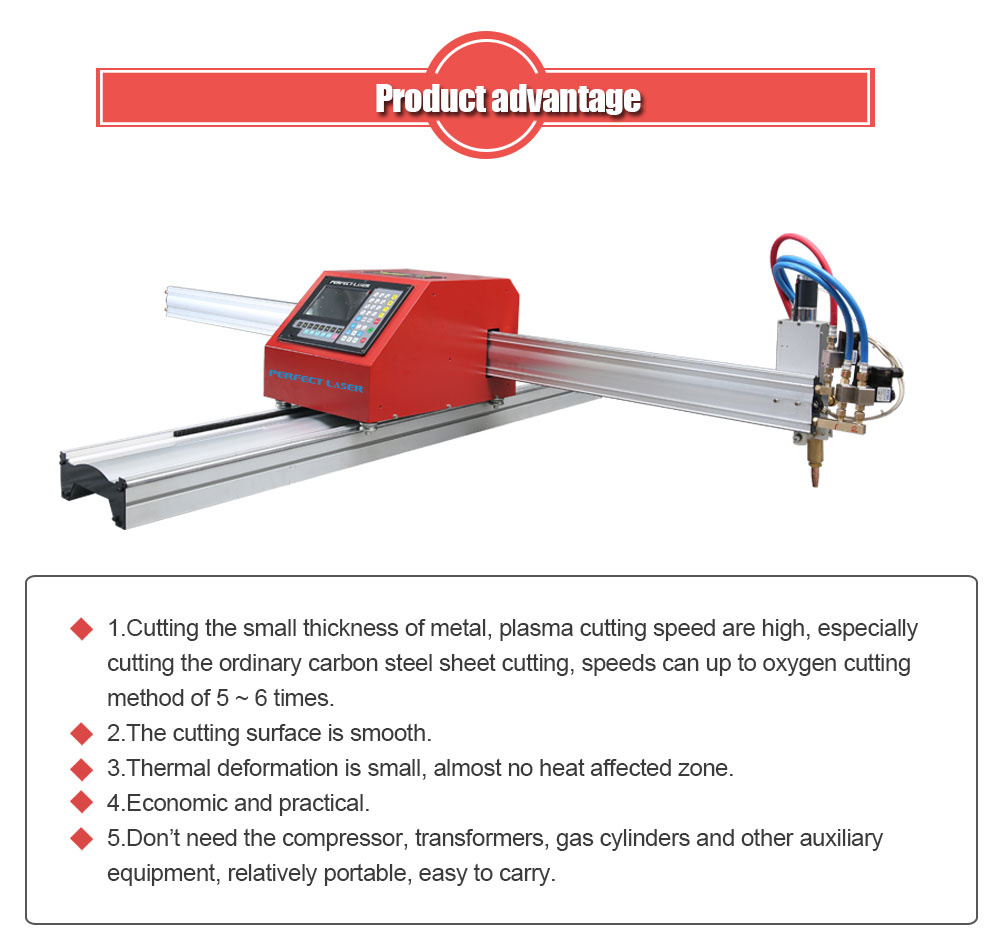

Features:
1. Machine design simple.
2. Bench-gantry structure, welding after the vibration aging treatment to eliminate stress, so that in the long-term use of no deformation.
3. All mechanical drive system using rolling bearings and precision machining accuracy as 7 grade of precision gears mesh with the rack
4. Planetary reducer drive system, its input and output error of only 16 arc minutes, at the same time, in the horizontal and vertical structure of the gear drive, an increase of automatic clearance compensation device so that it can accurately drive the structure of the implementation of the directives issued by the CNC.
5. Take the initiative to end beam: Vertical track for the introduction of automatic clamping device-oriented structure and there are no eccentric clamping structure, relying on automatic detachable power-oriented structure to make it two in the track combined with the smooth running of the Department will not have a wheel clamp tight or lax-phenomenon.
6. All the equipment look to see, such as steel, screws, using black or chrome handle.
7. Spray machine to use more advanced types of paint, the color demand on users.
Need more information from Perfect Laser? Send enquiry to us Right Now!
| lateral rail span | 4000mm |
| effective incise width | 3200mm |
| length of vertical rail | 6000mm |
| effective incise length | 4800mm |
| NC cutting | 1 set |
| auto-adjusting height system of plasma arc voltage | 1 set |
| auto-adjusting height system of capacitance | 1 set |
| controlled switch | some |
| lifting height of cutting | ≤200mm |
| cutting speed | 0-3500mm/min |
| roughness of cutting surface | Ra≤12.5μm |
| driving system | three-phase AC motor dual-driving |
Perfect Laser (Wuhan) Co., Ltd. is a professional manufacturer of industrial laser equipment, located in China "Optics Valley" - Wuhan City. Since 1995, Perfect Laser focused on the development and production of various types of laser machinery and CNC equipment.
With over 20 years efforts and innovation. Our products have been exported to 180 different countries and regions. Our company has the European CE certificate, Germany TUV certificate, ISO9001: 2000 quality system certificate.
We are one of the most trustworthy company in central China among laser equipment manufacturers. Winning the honor of "Hi-tech Eenterprise" and "Famous Brand in Hubei Province", Perfect Laser willcontinue to embrace and create a better future with open mind.
