Plastic Box Injection Mould for Household Appliance

Plastic Box Injection Mould for Household Appliance
Price: US $ 0.12-0.25/Piece
Trade Terms: FOB,CIF,others
Min Order: 200/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: STK-PL-1033
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: White/Blue/Green/Black/Yellow
Use: Daily Use, Household Container, Food Container,etc
Software Applied: PRO/E, Autocad 2000, Solidwork 2001
Delivery Time: 2-4weeks
Product Material: Plastic (PC, ABS, POM, PE, PMMA, Nylon, Acrylic)
Shaping Mode: Injection Mould
Process Combination Type: Single-Process Mode
Application: Hardware
Installation: Fixed
Plastic Material: PP or HDPE

Product Description

Product Name :Plastic Box Injection Mould for Household Appliance -- Plastic Injection Parts

Xiamen Stick Industry is a company has 10 years' experience on plastic injection and has a pro engineer team helping customers with any problem. We are one of leading ISO 9001: 2000 certified manufacture of mold design and fabrication that include plastic molds, plastic injection parts and plastic injection molding in China.

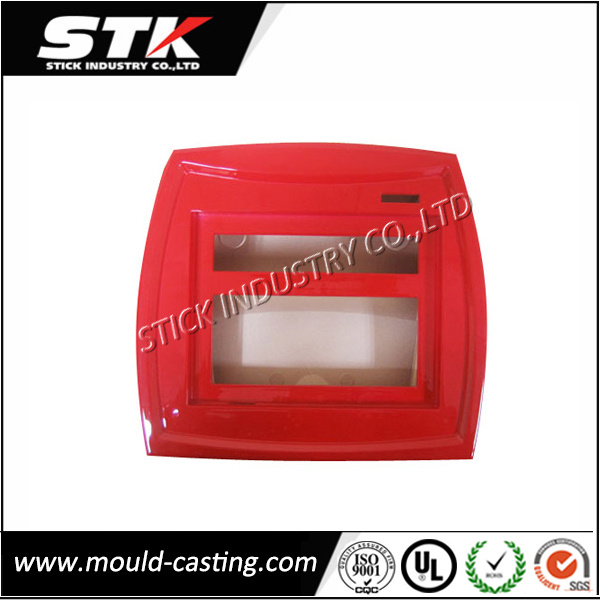

The picture shown is the customized product we make for our customer, for reference only. Any OEM service is welcomed.

High quality and fair price is highly strictly controlled here.

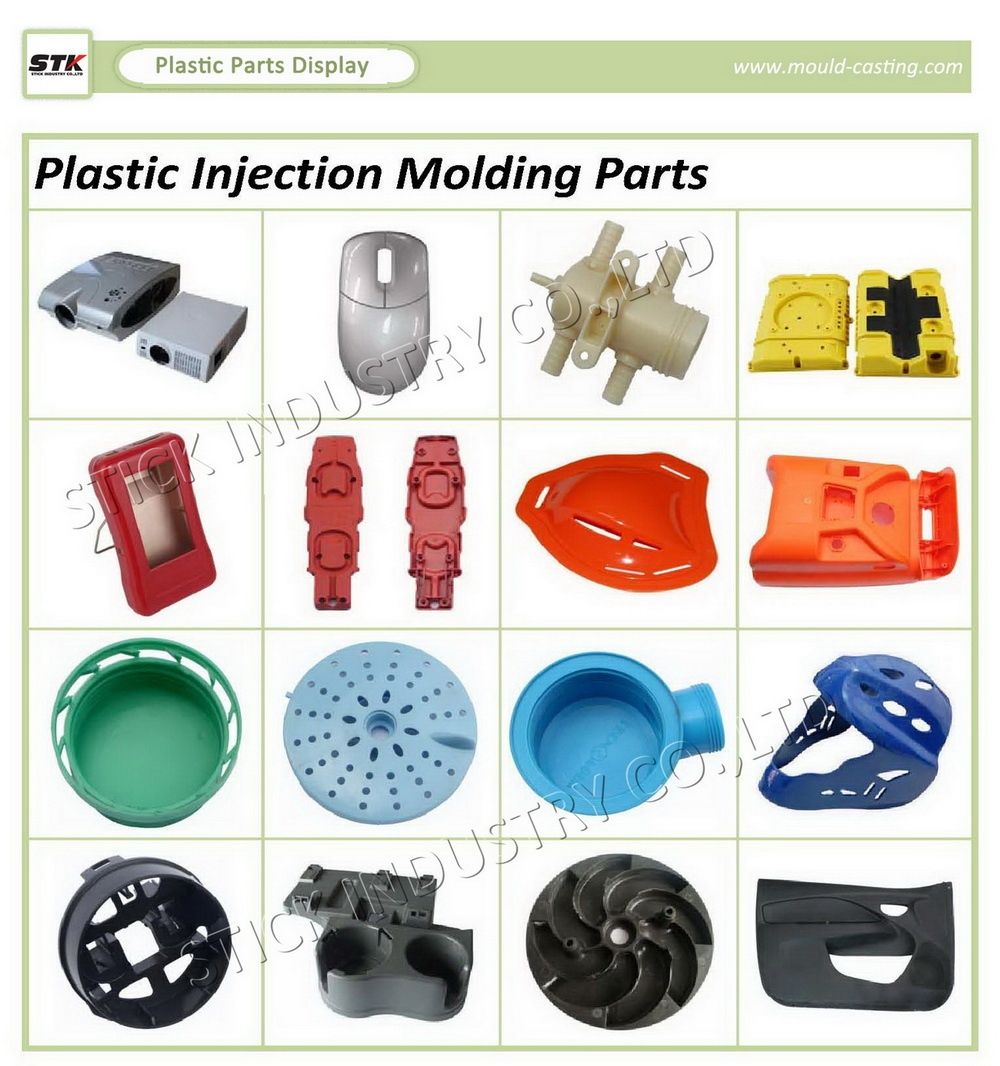

Plastic Product Range:
1. Automotive Parts
2. Household Products
3. Electronic Accessories
4. Industrial Components
5. Medical Parts
6. Others


Why Choose Us
1. Founded in 2004, Cover an area of 10000 sqms Plant; Provide OEM/ODM Service
2. Certified by ISO90001, SGS,CE,UL etc
3. Over 10 years experience in Mold Making & Plastic Injection Parts Mass Production
4. Integrating R&D, QC System & Marketing Sales.
5. One-stop Service of Custom mold design from Initial drawing design, Material selection assistance, Mold structure/Mold flow analysis, Trial & mass production to Final mold assembly & shipment.
Plastic Injection Molding Capacity
Product Name Plastic Box Injection Mould for Household Appliance
MaterialPA, PA6, PA+FG, ABS, FR ABS, POM, PC, PS, PP,  PVC, TPR, TPU, TPE, HDPE, PMMA etc.
Mold CavitySingle or Multi-cavity
Mold BaseLKM or Equivalent Standard mold base
Core SteelNAK80 Prehardened steel,718, 718H, P20, S136 etc.
Injection Machine Size40 sets range from 80Tons to 1400Tons
Tolerance+/-0.1mm
Max Mold Size1500mm X 1300mm
Product Unit Weight From 0.1gram to 10,000grams
Tooling Lead-time3-7 weeks
Production Lead-time2-4 weeks
Surface TreatmentChrome Plating, Silk-Printing, Laser Etching, Texture, Color Painting, etc
Mold Life50000 shots -500000 shots
BrandSTK or Customized
Delivery Time In about 30 days for new production
Packing Standard export packing or customized
MOQ1000 pcs
FOB portXiamen, China
ShipmentAir or Sea


Plastic Materials Applies
Material NameFeaturesApplications
PPLightweight, Heat Resistance, High Chemical Resistance, Scratch Resistance, Natural Waxy Appearance, Tough and Stiff, Low CostAutomobile (Bumpers, Covers, Trim), Bottles, Caps, Crates, Handles, Housings.
POMStrong, Rigid, Excellent Fatigue Resistance, Excellent Creep Resistance, Chemical Resistance, Moisture Resistance, Naturally Opaque White, Low/Medium CostBearings, Cams, Gears, Handles, Plumbing Components, Rollers, Rotors, Slide Guides, Valves
PCVery Tough, Temperature Resistance, Dimensional Stability, Transparent, High CostAutomobile (Panels, Lenses, Consoles), Bottles, Containers, Housings, Light Covers, Reflectors, Safety Helmets and Shields
PSTough, Very High Chemical Resistance, Clear, Very High CostValves
ABSStrong, Flexible, Low Mold Shrinkage (Tight Tolerance), Chemical Resistance, Applicable for Electroplating, Naturally Opaque, Low/Medium CostAutomobile (Consoles, Panels, Trim, Vents), Boxes, Gauges, Housings, Inhalers, Toys
PA6High Strength, Fatigue Resistance, Chemical Resistance, Low Creep, Low Friction, Almost Opaque/White, Medium/High CostBearings, Bushings, Gears, Rollers, Wheels
PA6/6High Strength, Fatigue Resistance, Chemical Resistance, Low Creep, Low Friction, Almost Opaque/White, Medium/High CostHandles, Levers, Small Housings, Zip Ties
PBT,PETRigid, Heat Resistance, Chemical Resistance, Medium/High CostAutomobile (Filters, Handles, Pumps), Bearings, Cams, Electrical Components (Connectors, Sensors), Gears, Housings, Rollers, Switches, Valves
PVCTough, Flexible, Flame Resistance, Transparent or Opaque, Low CostElectrical Insulation, Household wares, Medical Tubing, Shoe Soles, Toys
HDPETough and Stiff, Excellent Chemical Resistance, Natural Waxy Appearance, Low CostChair Seats, Housings, Covers, Containers
PMMARigid, Brittle, Scratch Resistance, Transparent, Optical Clarity, Low/Medium CostDisplay Stands, Knobs, Lenses, Light Housings, Panels, Reflectors, Signs, Shelves, Trays

Company Information

Our main production area is equiped with 40 molding machines of various size,
ranging from 80 tons to 1400 tons clamping pressure.

This provides us with teh capability to mold shot weights from 0.1 gram to over
10000 grams with flexible production runs.


Plastic Injection Solution:

*  Precision Injection Molding: From design consultancy & prototype tooling to high-volume  world-class production
*  Parts are widely used: Industrial, Automotive, Electronics & Medical


Technical Skills - Development, Design Skills
*  Design Consultation & Assistance
*  Pro/E, CAD/CAM/CAE including Solid Works(TM) and mold flow analysis
*  Material Selection Assistance
*  Quick turn-around prototype support
*  Secondary Operations including machining, welding & assembly


Molding - High Precision, High Concern
*  Plastic Decorating: In-Mold Decorating (in-mold labeling), pad printing & hot stamping
*  40 Molding machines from 80TONS to 1400TONS
*  High precision molding from medical to fiber optics components


Secondary Operations - Value Added Service
Pad Printing
*  Sonic Welding
*  Assembly & Packaging

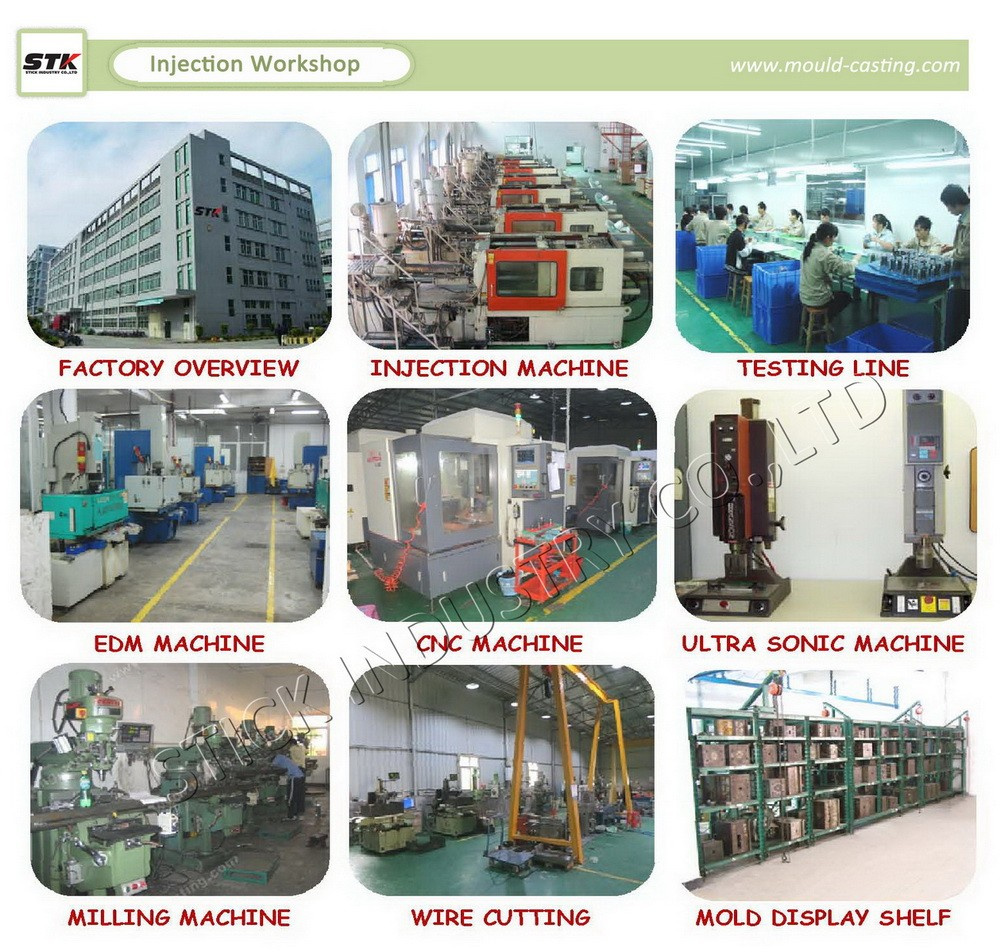

Plastic Injection Equipment List
EquipmentQTYOrigin
Injection Machine40 SETSTaiwan / China
CNC Machine Center5 SETSTaiwan / China
EDM6 SETSChina
EDM Mirror1 SETSJapan
Wire Cutting 5 SETSTaiwan
Grinding Machine3 SETSChina
Milling Machine10 SETSChina
Drilling Machine15 SETSChina


Ms Ivy Lo
XIAMEN STICK INDUSTRY CO., LTD
Unit 05C,5th Floor,Hai Fu Business Center,
A 597 Shi Shui Road,Xiamen,China. Post Code:361008
Pho: (86)592-5209671, Fax: (86)592-5209672
Web: www.stickindustry.com www.mold-custom.com
We believe that the best way to ensure our success is by providing our customers consistent quality in a timely fashion and at a fair price.

Stick Industry was established in 2004, with factory located in Haicang district, Xiamen city, South East of China. The company has been in business for over 10 years, beginning as a small plastic mold and die casting mold workshop growing into an industrial leading, multi-plant molder with factory size over 10000 square meters and employees about 150.

Conveniently located in the south of China, our ISO 9001-2000 Certified facility economically services markets throughout the world including USA, Russia, Canada, Mexico, Brazil, Germany, Spain, Italy, Poland etc

In addition to outstanding growth in our die cast and injection molding department, our secondary machining operations have continued to grow to meet the varied needs of our customers, including: Drilling, tapping, turning, boring, milling, sanding, shot blasting, vibratory finish, and more.

From concept to final production, from mechanical and electronic design to components sourcing, and from prototype manufacturing to mold design, our engineer team can jump in at any stage to complete your valuable project on time.

Our service include: Moulds, plastic injection molding, Aluminum/Zinc Die casting, CNC Machining, Sheet Metal Forming, Surface Treatments, Assembly and packaging.

We will pay great attention to your any question or enquiry.

If any questions, please feel free to contact us at any time.

Tel: 86-592- 5209671

Fax: 86-592- 5209672

Ms. Anna Lin

Website: Www. Stickindustry. COM / www. Mould-casting. COM
