Plastic Injection Diamond Wire Saw for Limestone Profiling

Plastic Injection Diamond Wire Saw for Limestone Profiling
Price: US $ 34-36/Meter
Min Order: 50/Meter
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: FP85AK
Reinforcement: Plastic

Product Description

Description

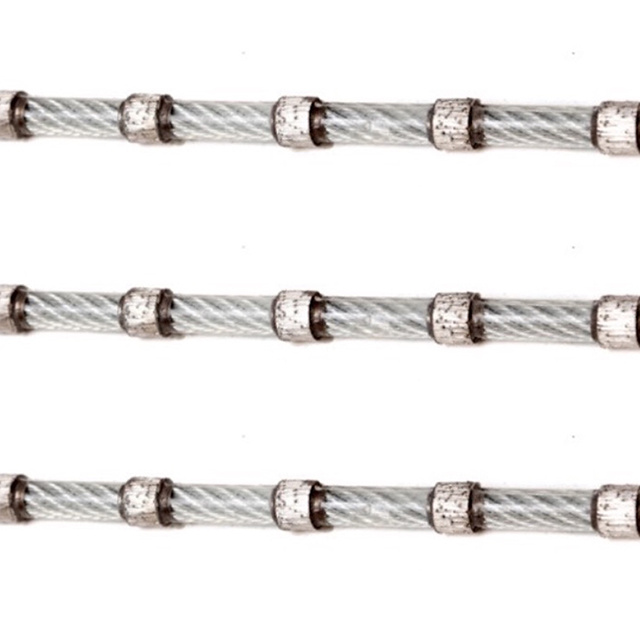

The plastic injection diamond wire saw is widely in marble profiling, with advantages as follows:The plastic diamond wire saw is essentially composed of three main components:
1) Steel cable with different diameter depending on the application.
Top quality steel cable from Germany.

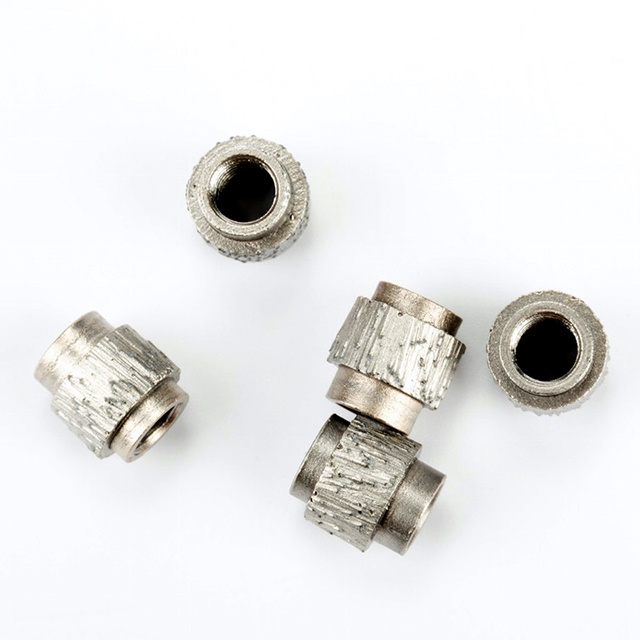

2) Sintered diamond beads.

KEENTOOL studies the granite to be cut to design the best bond and number of beads per meter.
3) Assembly with plastic
KEENTOOL use the Bayer or BASF plastic grains from Germany, and the most advanced plastic injection equipment and system to make sure our diamond wire can work with stable performance till the end. High quality plastic will protects the steel cable from the abrasive action of the stone and also absorbs the energy of the cutting friction of the beads against the stone.



Technical Data
APPLICATIONSArt NoSpecification (mm)Beads/MReinforcement

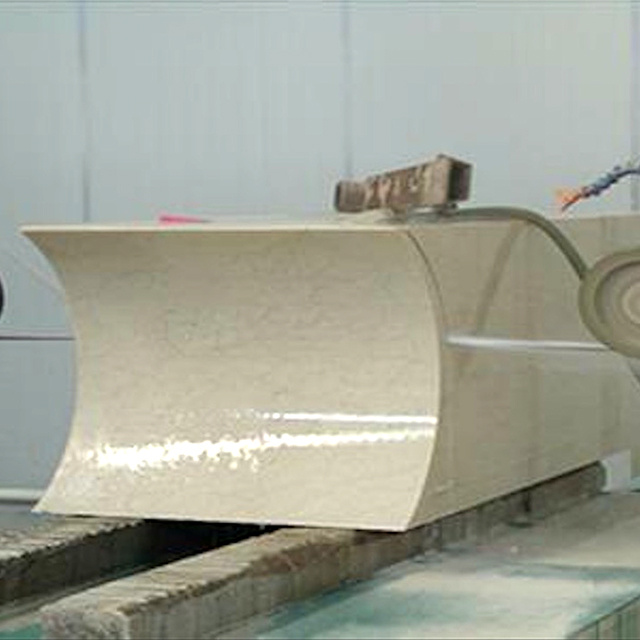

To be widely used for cutting marble/travertine/ limestone slabs, and Profiling etcROC-MP85P¢8.5×6.037Plastic
ROC-MP90P¢9.0×6.037Plastic
Cutting MaterialLinear Speed (M/S)Down Speed (CM/H)Cutting Life
(M2/M)
Soft 30-40120-20050-85
Medium 30-40100-16040-70
Hard 30-4080-12030-50
SPECIFICATION OF BEADSOut DiameterLength of work layer (mm)Bead LengthManufacture Tech
¢8.56.09.5Sintered
¢9.06.09.5Sintered
Packaging & Shipping:

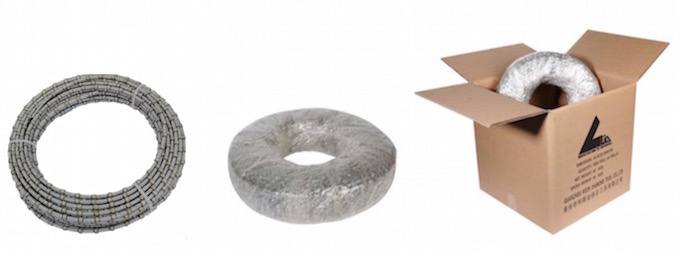

Packaging: Carton with water proof plastic.
Meters/Roll: Customized, we can produce the wire with length as you required.
NW: 9-10KGS for 50 Meters
Sample lead time: In 3 working days.
Delivery time: In 14 days for quantity of 1000 Meters profiling diamond wire.



Our Services:
1. Diamond Wire Cutting Operation Training and Guidance
2. Full Consulting Service and Turnkey Solutions for the Stone Quarry






Always at your service!




Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.

We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:

1. For stone Quarry:

Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.

Consultant service for project evaluation, quarry development and mining construction

Consultant and marketing service for block distribution

2. For stone Factory:

Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.

3. For civil construction:

Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.

Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction

Diamond blade for cutting concrete, reinforced concrete and asphalt

Diamond Core Drills for concrete reinforced concrete, wall and asphalt

Diamond polisher for polishing of concrete floor, wall and blocks

The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
