| Price: | US $ 0.01/Piece |
|---|---|
| Min Order: | 1000/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | 30207 |
|---|---|
| Sample: | Available |
| Service: | OEM |
| Customer Brand: | Acceptable |
| Logo: | Customize |
| MOQ: | 1000sets |
| Fob Port: | Qingdao,China |
| Stock: | Yes |
| Delivery Date: | 7 Days |
| Customize Order: | Acceptable |
| Size: | Standard Size |
| Type: | Wheel Hub Bearing |
| Material: | Chrome Steel |
| Tolerance: | P0 |
| Certification: | TUV |
| Clearance: | C0 |
| ABS: | Without ABS |
| Brand: | Lyaz/OEM |
| Application: | All |
| Structure: | taper roller | Type: | roller | Brand Name: | LYAZ/OEM |
| Bore Size: | 15 - 30 mm | Outside Diameter: | 35 - 62 mm | Model Number: | tapered roller bearing size chart 30202 30203 30204 30205 30206 30207 30208 32211 30212 32212 |
| Precision Rating: | P0 P6 P5 P4 P2 | Seals Type: | Open | Number of Row: | Single Row |
| Place of Origin: | Qingdao, China (Mainland) | Material: | Chrome Steel | Application: | Machine Parts |
| Service: | OEM Customized Services | Certification: | ISO9001:2008 | Lubricated: | Oil |
| Vibration: | Z1V1 | WEIGHT: | 6.12 | Stock: | available |
| Cage: | E | Product name: | tapered roller bearing size chart 30202 30203 30204 30205 30206 |
| Packaging Details: | 1. craft paper rolled/plastic bucket +carton +pallet 2.individually packing +carton +pallet 3.As customer's request tapered roller bearing size chart 30202 30203 30204 30205 30206 |
| Delivery Detail: | Shipped in 15 days after payment |
tapered roller bearing size chart 30202 30203 30204 30205 30206 specification
Tapered roller bearing type belongs to the separation bearing, have tapered roller bearing inner and outer race.According to these bearings on the column number of the roller is divided into single row, double row and four row circular cone roller bearings these different structure. Single row circular cone roller bearings can bear radial load and the single direction axial load. When bearing radial load, axial force component, would create a so when need another affordable bearing axial force in the opposite direction to balance
tapered roller bearing size chart 30202 30203 30204 30205 30206 uses:
Tapered roller bearing is widely used in automotive, rolling mill, mining, metallurgy, plastics machinery and other industries.
| bearing | sizemm | /kN | weight/kg | old meodel | ||||
d | D | T | B | Cr | Cor | W≈ | ||
| 30202 | 15 | 35 | 11.75 | 11 | 0.0 | 0.0 | 0.050 | 7202E |
| 30203 | 17 | 40 | 13.25 | 12 | 20.8 | 21.8 | 0.079 | 7203E |
| 30204 | 20 | 47 | 15.25 | 14 | 28.2 | 30.5 | 0.126 | 7204E |
| 30205 | 25 | 52 | 16.25 | 15 | 32.2 | 37.0 | 0.154 | 7205E |
| 30206 | 30 | 62 | 17.25 | 16 | 43.2 | 50.5 | 0.231 | 7206E |

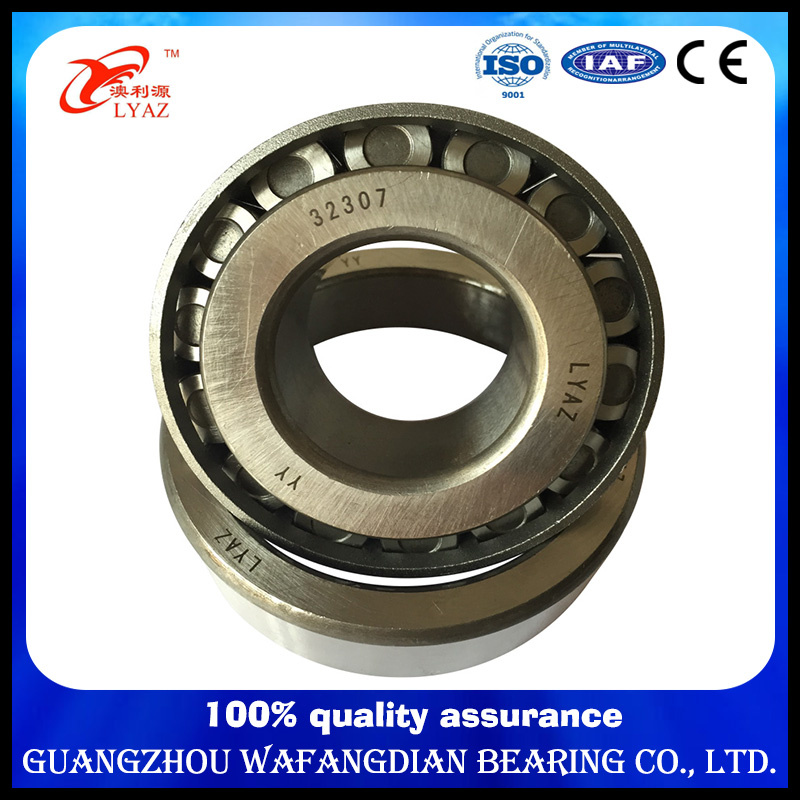

tapered roller bearing size chart 30202 30203 30204 30205 30206 details picture:
Wafang Dian Bearing Advantage
1. Material Advantage
All the material for Wafang Dian bearing are from the best suppliers in China.
2. Processing Advantage
we can guarantee the time spent and quality of every processing. We can do three times tempering to stabilize the dimensions of the bearings, which is quite different from other bearings manufacturers.
3. Quality control advantage
All the bearing parts are 100% strictly inspected before and during production including Metallurgical testing, crack detection, roundness, hardness, roughness and g++eometric dimensions.
4. All of bearings meet the ISO international standard.
5. Appearance Technology Advantage
we can provide light chamfer, black chamfer, black chamfer of the rollers. The bearings are produced all according to customer's requirements.
6. Service Advantage
Your satisfaction is our biggest goal. From quotation to the final packing and transport, we provide the quickest and most satisfactory services to every customer.
We participate Canton Fair,Shanghai Auto Mechanika Fair,Professional Auto Parts Fair annually.
Welcome Inquiry and order !
Thank you!
